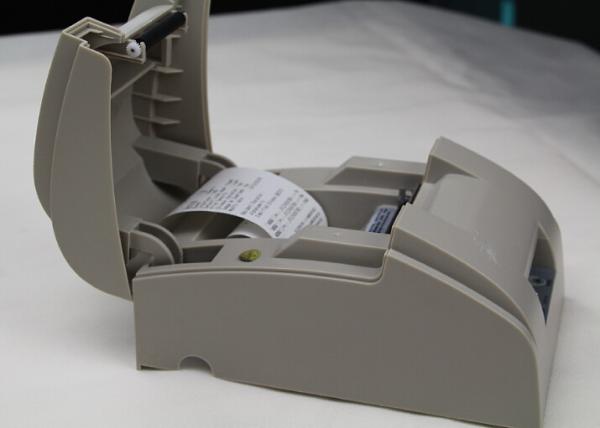

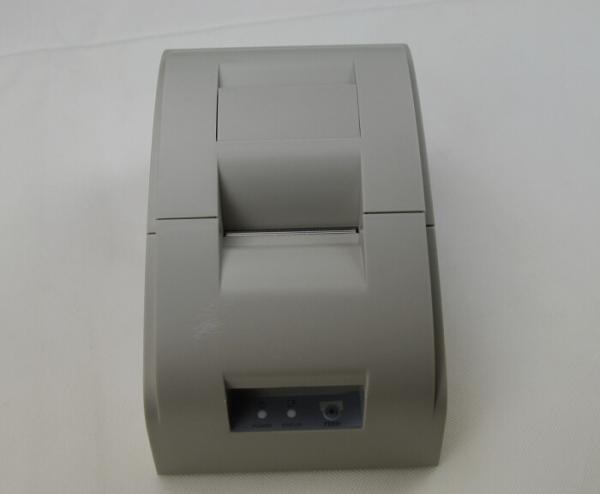

Desktop 58mm Thermal Printer Mechanism with Win 9X / Win ME / Win 2000 System
Desktop 58mm Thermal Printer Mechanism with Win 9X / Win ME / Win 2000 System
Desktop 58mm Thermal Printer Mechanism with Win 9X / Win ME / Win 2000 System
Desktop 58mm Thermal Printer Mechanism with Win 9X / Win ME / Win 2000 System
Desktop 58mm Thermal Printer Mechanism with Win 9X / Win ME / Win 2000 System
Desktop 58mm Thermal Printer Mechanism with Win 9X / Win ME / Win 2000 System
Desktop 58mm Thermal Printer Mechanism with Win 9X / Win ME / Win 2000 System
Desktop 58mm Thermal Printer Mechanism with Win 9X / Win ME / Win 2000 System
Specifications
Place of Origin :
China
Brand Name :
MASUNG
Certification :
CE; ROSH;UL
Model Number :
MS-5890II(a)
MOQ :
1
Packaging Details :
carton
Delivery Time :
5~8 days
Payment Terms :
T/T/Paypal/Western union
Supply Ability :
5,000 units/monthly
Description

Desktop 58mm Thermal Printer Mechanism with Win 9X / Win ME / Win 2000 System

Quick Detail:

► Cashbox drive support

► Networking print support

► Hebrew printing

► Compatible with EPSON ESC/POS command

► Multiple languages printing

► System: Win 9X/Win ME/Win 2000/Win 2003/Win NT/ Win XP/Win Wista/Win 7

► Logo printing

► Diagram printing

Description:

MS-5890II(a) is integrated in multiple POS terminal system as 2 inch thermal printer for ticket. Diagram and logo printing is available.

Specification:

58mm thermal receipt printer

Printing method

Thermal dot line printing

Printing width

48mm

Dot/line

384 dots/line

Printing speed

90mm/s

Interface

Parallel/USB

Paper width

57.5±0.5mm×φ65 mm

Line pitch

3.75 mm(adjustable by command)

Column numbers

Font A – 32 /Font B - 42/ simple/complex chinese- 16

Font size

ANK Font A:1.5×3.0mm(12×24 dots)
ANK Font B:1.1×2.1mm(9×17 dots)
simple/complex chinese:3.0×3.0mm(24×24 dots)

barcode

Character table

PC347(Standard Europe),Katakana,
PC850(Multilingual),PC860(Portuguese),
PC863(Canadian-French),PC865(Nordic),
West Europe,Greek,Hebrew,East Europe,Iran,WPC1252,PC866(Cyrillic#2),PC852(Latin2),PC858,

IranII, Latvian, Arabic,PT151(1251)

Barcode type

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/
CODE39/ITF/CODABAR/CODE93/CODE128

Controlling board

buffer

32k bytes

NV Flash

64k bytes

Cash box input

DC 12V/1A

Power supply

Input

AC 110V/220V, 50～60Hz

Adaptor

output:DC 12V/2.6A

Physical property

Weight

0.94 kg

Dimension

235×145×125mm(L×W×H)

Environment

Working

temperature: 0～45℃, humidity: 10～80%

Storage

temperature: -10～60℃, humidity: 10～90%

Reliability

reliability

50 KM

Application:

POS printer, coupon machine, daily kiosk, kitchen printer, multimedia kiosks and more

Competitive Advantage:

Low cost

Customization service offer

Water proof design

NV logo download support

Small order accepted

Buyer label offer

Linux system application
