Specifications
Place of Origin :
China
Brand Name :
MASUNG
Certification :
CE; ROSH
Model Number :
MS-D347-TL
MOQ :
1
Packaging Details :
carton and foam materials
Delivery Time :
5~8 days
Payment Terms :
T/T/Paypal/Western union
Supply Ability :
2,000 units/monthly
Type :
kiosk thermal printer
mechanism: :
CAPD347
Printing method :
Thermal dot line printing
Paper width :
80 mm
Printing width :
72 mm
Paper thickness :
54~78 um
Printing speed :
170 mm/s
Paper feed direction :
180° horizontal
Paper loading :
Easy loading
Dimension (L*W*H) :
119.45*96.13*80.60mm
Interface :
RS-232 /USB/Parallel
Description

OEM Kiosk Printer Module Barcode Desktop Thermal embedded Printer​


Quick Detail:

► Multiple barcode printing support

► Bezel LED indication

► Big paper holding unit

► Ultra high speed max200 mm/s

► Windows/Android/Linux system support

► Brand printer mechanism CAPD347

► Paper jam prevention support

Description:

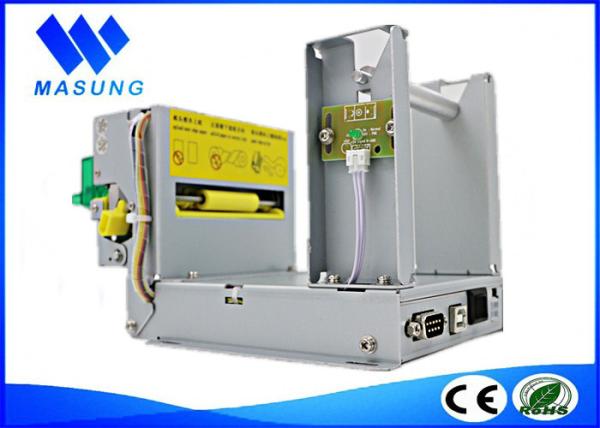

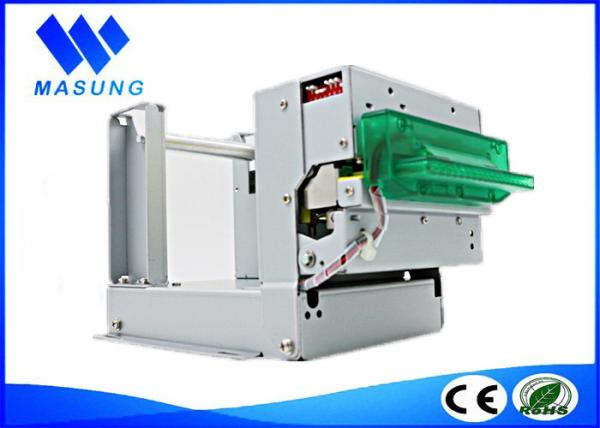

MS-D347-TL(a) is 80mm barcode kiosk thermal printer, it supports multiple barcodes printing. RS-232/USB/Parallel ports are optional.


Specification:

mechanism:

CAPD347

Printing method

Thermal dot line printing

Dots/line

576 dots/line

Dot pitch

8 dot/mm

Paper width

80 mm

Printing width

72 mm

Paper thickness

54~78 um

Printing speed

170 mm/s

Paper feed direction

180° horizontal

Sensors

Head temperature

Thermistor

Paper press shaft

Mechanical switch

Paper end

Photo interrupter

Paper loading

Easy loading

Font size

ASCII:9*17;12*24;

Chinese: 24*24

Power supply

Logic circuit

4.75~5.25 V

Motor

21.6~26.4 V

Dimension (L*W*H)

119.45*96.13*80.60mm

Weight

Approx 2.18 kg

Reliability

Circuit: over 1,000,000,000 pulses

Cutter: over 7,000,000 cuts

Thermal head: over 100 km

MCBF: 37,000,000 lines

Ambient environment

Work temperature

-10 ℃~50℃

Work humidity

20~85% RH

Storage temperature

-25℃~70℃

Storage temperature

10~90% RH

Controlling board:

Interface

RS-232 /USB/Parallel

power supply

DC 24V/2.5A

Command set

ESC/POS

Barcode

supported

Firmware location

512KB Flash memory

Buffer

32 KB

SRAM

64KB (extra)

Driver

Parallel/USB driver

System

WindowsXP/Win7(32bits or 64 bits)/

Win8/Android/Linux OS

Accessories:

Sensors

paper near end sensor;

paper jam sensor;

dragging paper sensor;

Paper holding unit

Paper guide mouth

Interface connector

Power supply unit

Cable

Application:

ATM; parking system; payment kiosk; coupon machine; ticket vendor; inquiry machine; multimedia kiosk; gas station terminal; advertising displayer; attendance terminals, ID automation machine and more

Competitive Advantage:

Small order accepted

Product performance

OEM offer

Brand-name printer parts

Customization offer

Prompt delivery
