Specifications
Place of Origin :
China
Brand Name :
MASUNG
Certification :
CE; ROSH
Model Number :
MS-N58VW
MOQ :
1
Packaging Details :
Carton
Delivery Time :
5~8 days
Payment Terms :
T/T/Paypal/Western union
Supply Ability :
5,000 units/monthly
mechanism: :
MS628
Printing method :
Thermal dot line printing
Paper width :
58 mm
Printing width :
48 mm
Paper thickness :
54~78 um
Printing speed :
150 mm/s
Cutting type :
Full/partial (by adjustable)
Dimension (L*W*H) :
75*37*15.5 mm ( FPC L= 73mm)
Weight :
Approx 1.15 kg
Interface :
RS-232/TTL /USB
Description

2 Inch Self - Service Ticket Kiosk Thermal Printer , Ultra high speed max150 mm/s

Quick details:

► Mechanism compatible with FTP-628MCL101

► Panel mount structure

► Ultra high speed max150 mm/s

► Paper jam prevention design

► Paper counting support

► Paper near end sensor support

Description:

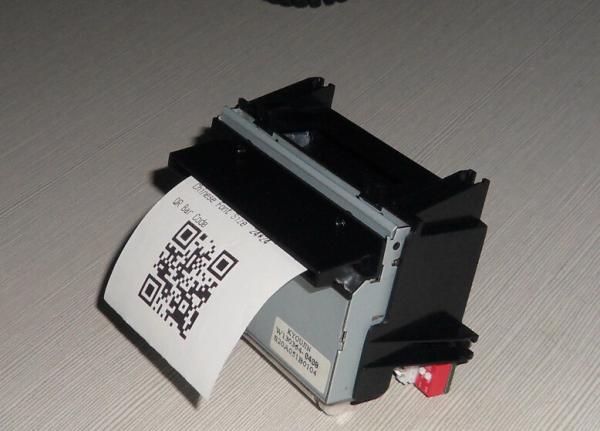

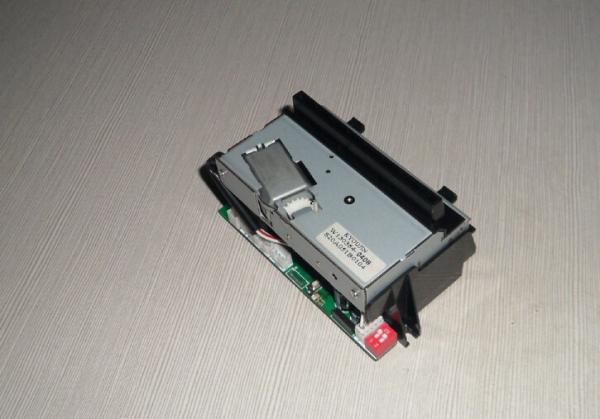

MS-N58VW Is designed for 2 inch kiosk thermal printer. with paper bezel and dismountable autocutter it saves more manual work. it is popular by high speed 150 mm/s and cutting mode by adjustable.

Specification:

mechanism:

MS628

Printing method

Thermal dot line printing

Dots/line

384 dots/line

Dot pitch

8 dot/mm

Paper width

58 mm

Printing width

48 mm

Paper thickness

54~78 um

Printing speed

150 mm/s

Paper feed direction

180° horizontal

Sensors

Head temperature

Thermistor

Paper press shaft

Mechanical switch

Paper end

Photo interrupter

Cutting type

Full/partial (by adjustable)

Font size

ASCII:9*17;12*24;

Chinese: 24*24

Power supply

Logic circuit

2.6~3.6 V

Motor

4.75 ~9.5 V

Dimension (L*W*H)

75*37*15.5 mm ( FPC L= 73mm)

Weight

Approx 1.15 kg

Reliability

Circuit: over 1,000,000,000 pulses

Cutter: over 3,500,000 cuts

Thermal head: over 85 km

MCBF: 37,000,000 lines

Ambient environment

Work temperature

-10 ℃~50℃

Work humidity

20~85% RH

Storage temperature

-25℃~70℃

Storage temperature

10~90% RH

Controlling board:

MS-502

Interface

RS-232/TTL /USB

power supply

DC 8.5~12V/2.5A

Command set

ESC/POS

Barcode

supported

Firmware location

2 M NV Flash memory

Buffer

4 KB

SRAM

20 KB

Driver

USB driver

System

Windows/Android/Linux OS

Accessories:

paper near end sensor

Interface connector

Power supply unit

Cable

Application:

Healthcare kiosks; weighing scales; parking machines; queue management system; coupon machines; lottery printers; self-service terminals; attendance devices; ticket vendor; multimedia kiosk and more

Competitive Advantage:

Buyer label offer

Brand-name printer parts

Android system support

Customization offer

Prompt delivery

Small order accepted
