Specifications
Brand Name :
MASUNG
Model Number :
EP800-TMP
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
1-200 Dollar Piece
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
1-15Days
Packaging Details :
Cartons Foam Materials
mechanism :
CAPD347
Presenter unit :
PR521-24
Dots/line :
576 dots/line
Dot pitch :
8 dot/mm
Paper width :
80 mm
Printing width :
72 mm
Printing speed :
200 mm/s
Paper thickness :
54~78 um
Description

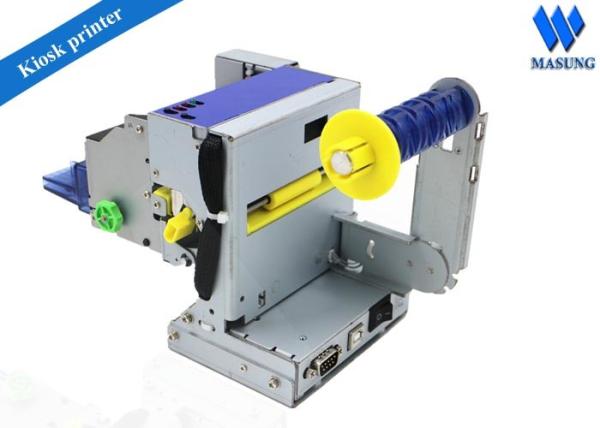

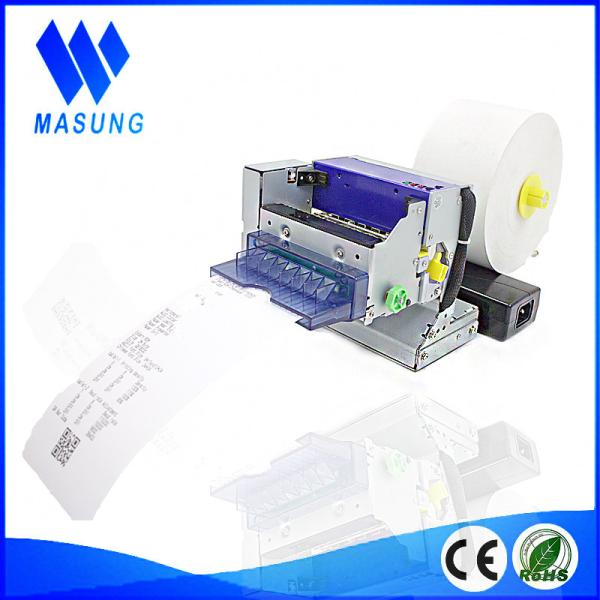

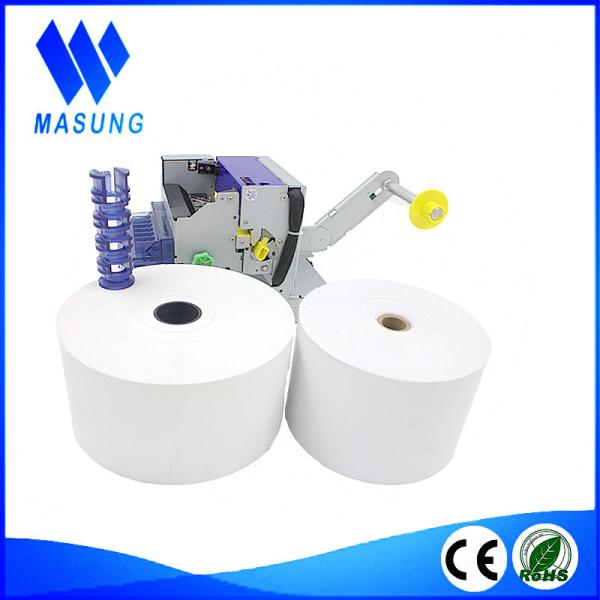

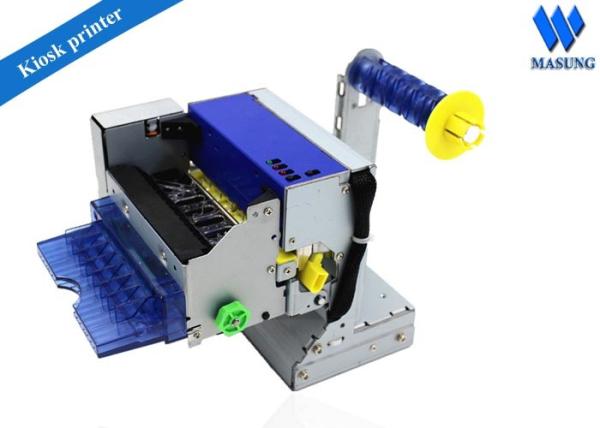

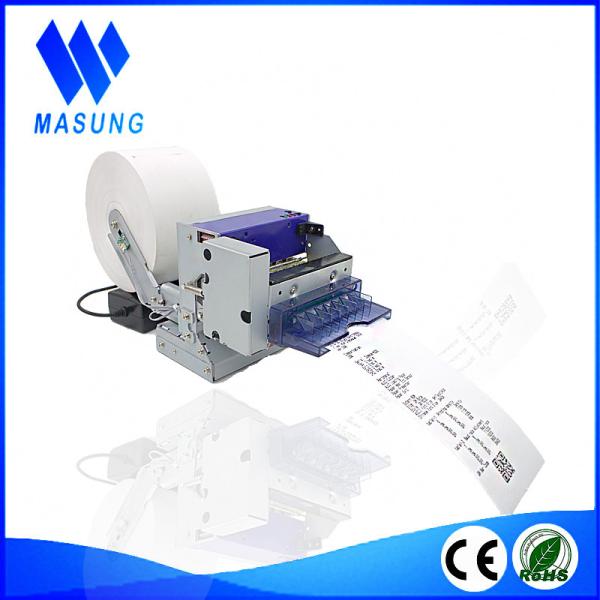

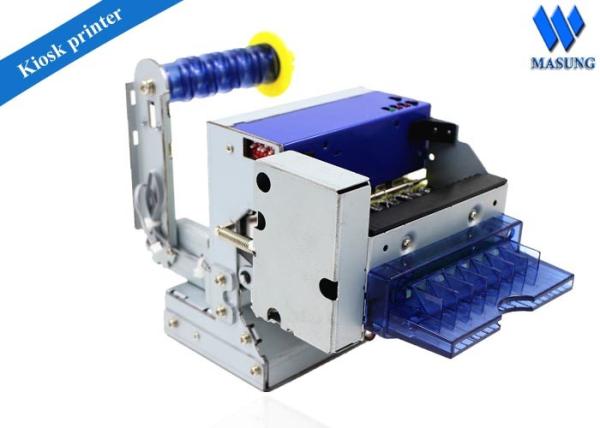

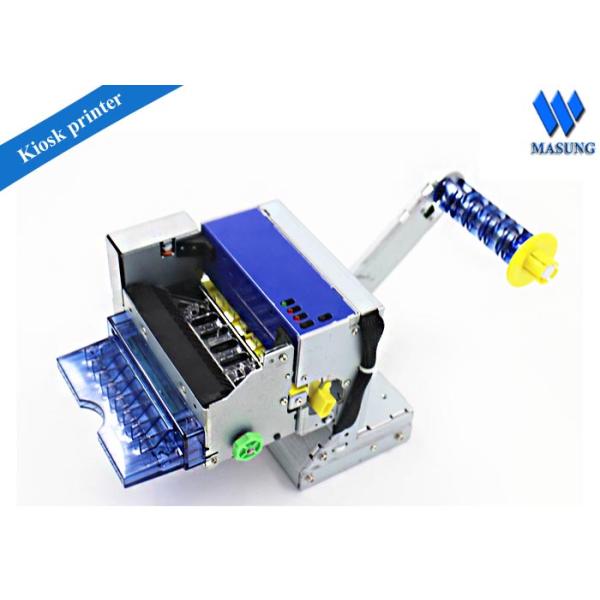

Small 3 Inch Thermal Printer With Flexible Installation Methods

Features:

  • Brand name printer mechanism
  • Brand name paper presenter
  • Reliable auto cutter
  • High printing speed
  • Ultra big roll holder
  • Interfaces diversification
  • Flexible installation methods
  • Support Windows/Linux/Android OS

Specification:

mechanism:

CAPD347

Presenter unit:

PR521-24

Printing method

Thermal dot line printing

Dots/line

576 dots/line

Dot pitch

8 dot/mm

Paper width

80 mm

Printing width

72 mm

Paper thickness

54~78 um

Printing speed

200 mm/s

Paper feed direction

180° horizontal

Sensors

Head temperature

Thermistor

Paper press shaft

Mechanical switch

Paper end

Photo interrupter

Paper loading

Easy loading

Font size

ASCII:9*17;12*24;

Chinese: 24*24

Power supply

Logic circuit

4.75~5.25 V

Motor

21.6~26.4 V

Dimension (L*W*H)

186.9*121.5*112.2 mm

Weight

Approx 1.92 kg

Reliability

Circuit: over 1,000,000,000 pulses

Cutter: over 7,000,000 cuts

Thermal head: over 100 km

MCBF: 37,000,000 lines

Ambient environment

Work temperature

-10 ℃~50℃

Work humidity

20~85% RH

Storage temperature

-25℃~70℃

Storage temperature

10~90% RH

Interface

RS-232 /USB/Parallel

power supply

DC 24V/2.5A

Command set

ESC/POS

Barcode

supported

Firmware location

512KB Flash memory

Buffer

32 KB

SRAM

64KB (extra)

Driver

Parallel/USB driver

System

Windows/Linux/Android OS

Accessories:

Sensors

paper near end sensor;

paper jam sensor;

dragging paper sensor;

Paper roll holder

Paper bezel ( paper guide)

Interface connector

Power supply unit

Paper presenter unit

Cable

Application:

Payment kiosk; information machine; parking system; queue management kiosk;

ATM; gas station kiosk; ticket vendor, multimedia kiosk; self-service terminal, gaming kiosk and more
