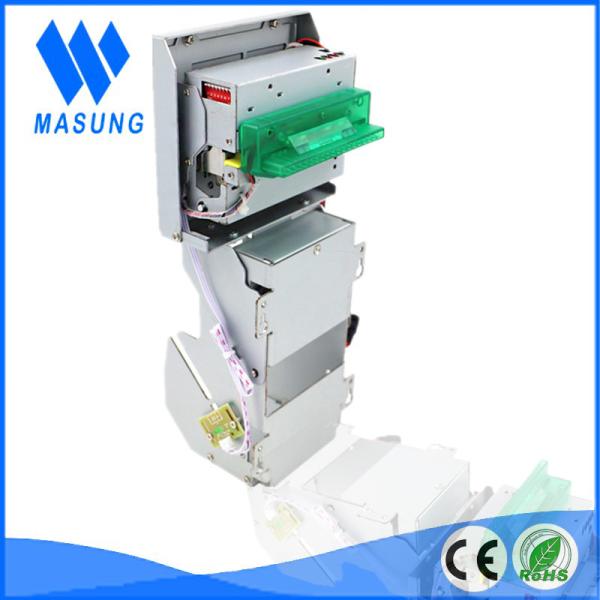

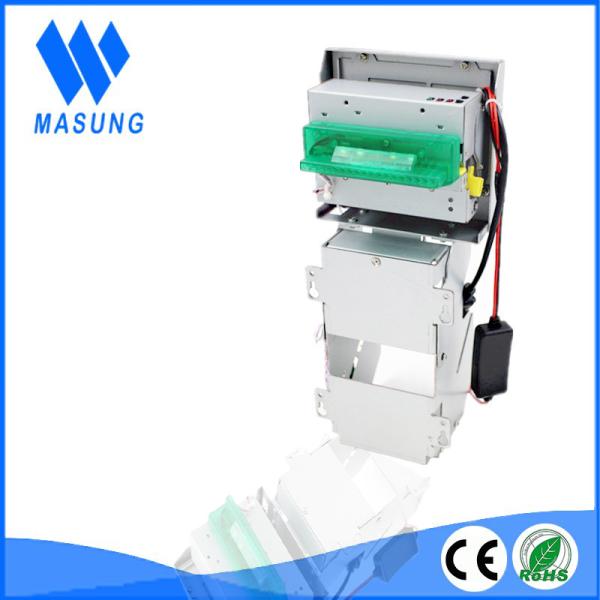

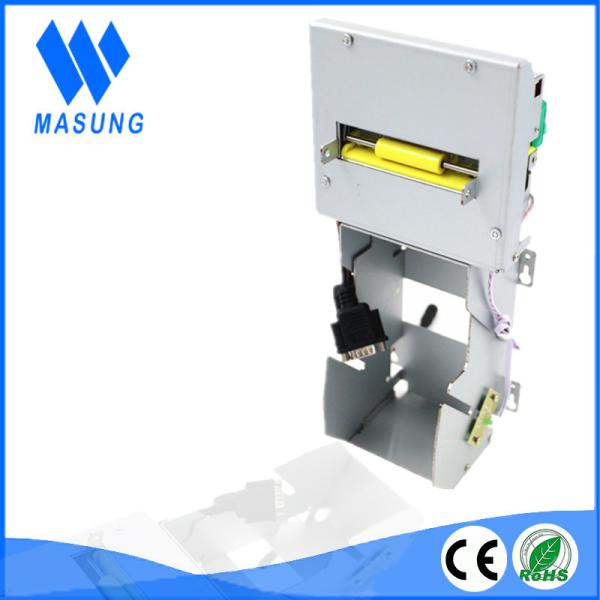

High Speed Thermal Paper Printer / Kiosk Ticket Printer 80 mm for parking machine
High Speed Thermal Paper Printer / Kiosk Ticket Printer 80 mm for parking machine
High Speed Thermal Paper Printer / Kiosk Ticket Printer 80 mm for parking machine
High Speed Thermal Paper Printer / Kiosk Ticket Printer 80 mm for parking machine
High Speed Thermal Paper Printer / Kiosk Ticket Printer 80 mm for parking machine
High Speed Thermal Paper Printer / Kiosk Ticket Printer 80 mm for parking machine
High Speed Thermal Paper Printer / Kiosk Ticket Printer 80 mm for parking machine
High Speed Thermal Paper Printer / Kiosk Ticket Printer 80 mm for parking machine
Specifications
Brand Name :
MASUNG
Model Number :
MS-D347-V
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
1-200Dollars/Piece
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
1-15Days
Packaging Details :
Spume Materials Carton
mechanism： :
CAPD347
Paper width :
80 mm
Printing width :
72 mm
Paper thickness :
54~78 um
Printing speed :
200 mm/s
Cutting type :
Full/partial ( by adjustable)
Dimension (L*W*H) :
227.5*127.8*131.45 mm
Interface :
RS-232 ,USB,Parallel
power supply :
DC 24V/2.5A
Description

High Speed Mobile Thermal Printer Receipt Kiosk Ticket Printer

Features:

  • Brand name printer mechanism
  • Panel vertical mounting
  • High speed 200mm/s
  • Full/partial cutting method (by adjustable)
  • Blackmark detection
  • Print label sticker
  • Windows/Android/Linux support

Specification:

mechanism:

CAPD347

Printing method

Thermal dot line printing

Dots/line

576 dots/line

Dot pitch

8 dot/mm

Paper width

80 mm

Printing width

72 mm

Paper thickness

54~78 um

Roll diameter

Max180 mm (external roll support)

Printing speed

200 mm/s

Paper feed direction

180° horizontal

Sensors

Head temperature

Thermistor

Paper press shaft

Mechanical switch

Paper end

Photo interrupter

Cutting type

Full/partial ( by adjustable)

Font size

ASCII:9*17;12*24;

Chinese: 24*24

Power supply

Logic circuit

4.75~5.25 V

Motor

21.6~26.4 V

Dimension (L*W*H)

227.5*127.8*131.45 mm

Weight

Approx 1.92 kg

Reliability

Circuit: over 1,000,000,000 pulses

Cutter: over 7,000,000 cuts

Thermal head: over 100 km

MCBF: 37,000,000 lines

Ambient environment

Work temperature

-10 ℃~50℃

Work humidity

20~85% RH

Storage temperature

-25℃~70℃

Storage temperature

10~90% RH

Interface

RS-232 /USB/Parallel

power supply

DC 24V/2.5A

Command set

ESC/POS

Barcode

supported

Firmware location

512KB Flash memory

Buffer

32 KB

SRAM

64KB (extra)

Driver

Parallel/USB driver

System

Windows/Android/Linux OS

Accessories:

Sensors

paper near end sensor;

paper jam sensor;

dragging paper sensor;

Paper holding unit;

Paper bezel(paper guide mouth)

Interface connector;

Power supply unit

Cable

Application

Self-service terminal; ATM; parking machine; payment kiosk; ticket vendor; inquiry machine;

multimedia kiosk, healthcare devices; gaming machine; label sticker printer and more
