Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Queue Mini Dot Line 2 Inch Kiosk Ticket Printers With Reliable Auto Cutter
Specifications
Brand Name :
MASUNG
Model Number :
MS-D245
Certification :
CE RoHs
Place of Origin :
China
MOQ :
1
Price :
80~100Dollars/Piece
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
1-15Days
Packaging Details :
Spume Materials Carton
Printing method :
Thermal dot line printing
Paper width :
58 mm
Printing width :
48 mm
Paper thickness :
54~91 um
Printing speed :
150 mm/s
System :
Windows/Linux/Android OS
Dimension (L*W*H) :
117.85*103.5*93 mm
Interface :
RS-232 /USB
mechanism： :
CAPD245
dirver :
usb driver
Description

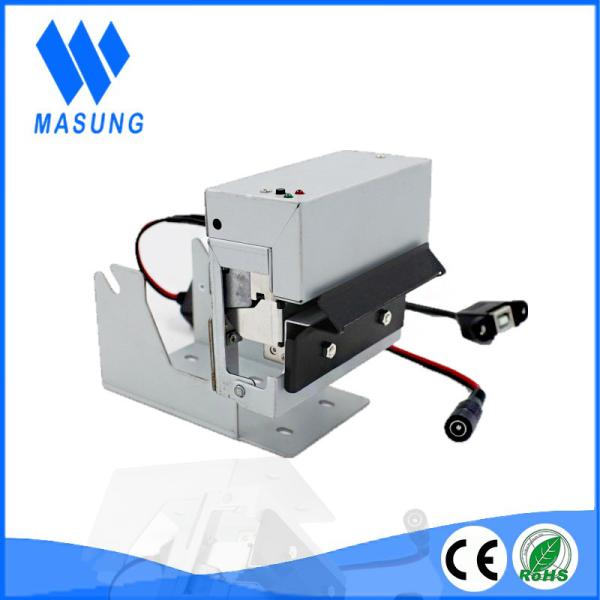

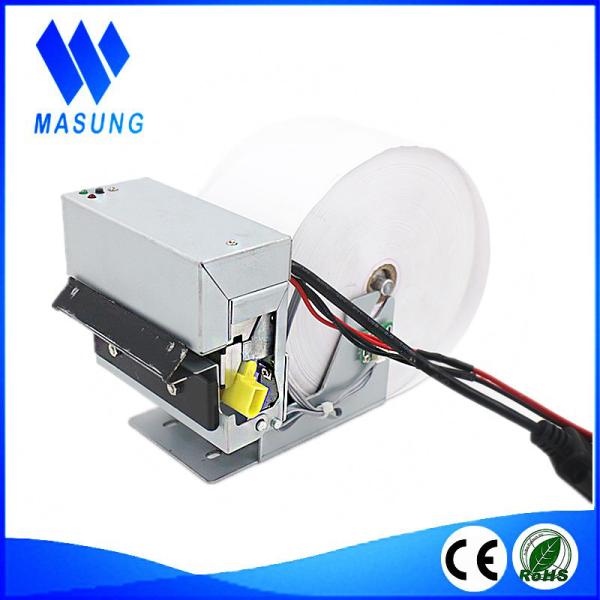

Queue Kiosk Mini Dot Line 2 Inch Thermal Printer With Reliable Auto Cutter

Features:

  • Brand name printer mechanism
  • Reliable auto cutter
  • Compact panel mounted structure
  • high speed
  • Wide input voltage range
  • Full/partial cutting (by adjustable)
  • Rear paper auto loading
  • multiple optional accessories

Specification:

mechanism:

CAPD245

Printing method

Thermal dot line printing

Dots/line

384 dots/line

Dot pitch

8 dot/mm

Paper width

58 mm

Printing width

48 mm

Paper thickness

54~91 um

Printing speed

150 mm/s

Paper loading

Paper auto loading

Sensors

Head temperature

Thermistor

Paper press shaft

Mechanical switch

Paper end

Photo interrupter

Font size

ASCII:9*17;12*24;

Chinese: 24*24

Power supply

Logic circuit

2.6~3.6 V

Motor

4.75 ~9.5 V

Reliability

Circuit: over 1,000,000,000 pulses

Cutter: over 7,000,000 cuts

Thermal head: over 100 km

MCBF: 37,000,000 lines

Ambient environment

Work temperature

-10 ℃~50℃

Work humidity

20~85% RH

Storage temperature

-25℃~70℃

Storage temperature

10~90% RH

Dimension (L*W*H)

117.85*103.5*93 mm

Weight

Approx 0.45 kg

Interface

RS-232 /USB

power supply

DC 9~24V/2.5A

Command set

ESC/POS

Barcode

supported

Firmware location

2 M NV Flash memory

Buffer

4 KB

SRAM

20 KB

Driver

USB driver

System

Windows/Linux/Android OS

Accessories:

paper near end sensor;

Paper roll holder

Paper bezel (paper guide mouth)

Interface connector

Power supply unit

Cable

Applications:

Information kiosk; gas pump station; public payment terminal; ID automation; lottery device; ticket vendor;

parking system; queue management machine and more.
