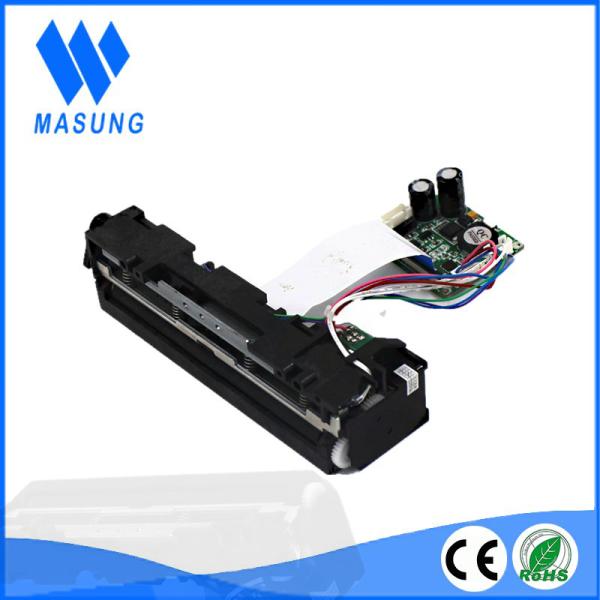

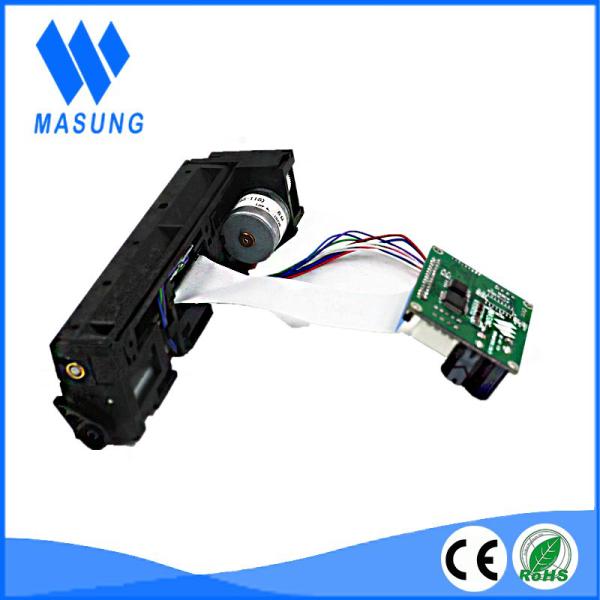

Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scale
Specifications
Brand Name :
MASUNG
Model Number :
MS-V445
Certification :
CE; ROSH
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T/Paypal/Western union
Supply Ability :
2,000 units/monthly
Delivery Time :
5~8 days
Packaging Details :
Carton and foam mterials
Price :
USD1~200/piece
Mechanism :
LTPV445
Printing Method :
Thermal dot line printing
Dots/line :
832 dots/line
Paper width :
112 mm
Printing width :
104 mm
Paper thickness :
60~135 um
Printing speed :
max 85 mm/s
Paper feeding direction :
90°
Working temperature :
0 – 50 ℃
Dimension (L x W x H) :
125X 34.5 X 39.5 mm
Weight :
About 130 g
Description

Kiosk 112mm rs232 ttl Printer Pro Solutions support label for weight scale

Quick details:

► RS-232 and TTL interfaces by option

► Label and thick thermal paper supporting

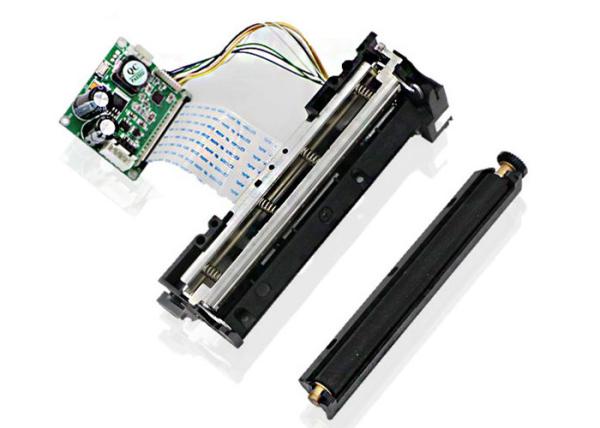

► Platen-free design for easy paper loading

► Vertical( 90°) paper feeding

► Seiko printer head LTPV445

► Ultra printing width 112mm

► High speed max85mm/s

►Android system support

►Customization offer

►Prompt delivery

►Small order accepted

Description:

MS-V445 it is designed by following brand name printer mehcanism LTPV445. this special printing width 112 mm is widely used for medidal instrument , it supports label printing

specification:

Mechanism

LTPV445

Printing Method

Thermal dot line printing

Dots/line

832 dots/line

Dot pitch

8 dots/mm

Paper width

112 mm

Printing width

104 mm

Paper thickness

60~135 um

Printing speed

max 85 mm/s

Paper feeding direction

90°

sensor

Thermal head temperature: thermistor

Head up: photoelectric sensor

Paper out :photo interrupter

Operation voltage(V)

Vdd:4.5 to 5.5

Vp:4.2 to 8.5

Current (A)

Printer head: 3.33

Motor: 1.0

Reliability

Circuit: over 110 million pulses

Mechanism: over 50 km

Working temperature

0 – 50 ℃

Dimension (L x W x H)

125X 34.5 X 39.5 mm

Weight

About 130 g

Controlling board

Interfaces

RS-232/TTL

Power supply

DC 8V~18V

Flash memory

128k

SRAM

20k

Dimension(L*W*H)

46*39*23 mm

weight

1.8 g

Application:

Measure/medical device; industrial equipment; weight scale; fire controller; analyzer printer , voting machine and more

Competitive Advantage:

  • OEM offer
  • Low cost
  • Brand-name printer parts
  • Android system support
  • Customization offer
  • Prompt delivery
  • Small order accepted

Kiosk 112mm rs232 ttl Thermal Printer Module support label for weight scaleThank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
