Android Win XP Linux 2 Inch Kiosk Ticket Printers For Weight Scale
Android Win XP Linux 2 Inch Kiosk Ticket Printers For Weight Scale
Android Win XP Linux 2 Inch Kiosk Ticket Printers For Weight Scale
Android Win XP Linux 2 Inch Kiosk Ticket Printers For Weight Scale
Android Win XP Linux 2 Inch Kiosk Ticket Printers For Weight Scale
Android Win XP Linux 2 Inch Kiosk Ticket Printers For Weight Scale
Android Win XP Linux 2 Inch Kiosk Ticket Printers For Weight Scale
Android Win XP Linux 2 Inch Kiosk Ticket Printers For Weight Scale
Specifications
Brand Name :
MASUNG
Model Number :
MS-N58VB
Certification :
CE; ROSH
Place of Origin :
China
MOQ :
1
Price :
USD50~200/piece
Payment Terms :
T/T/Western union
Supply Ability :
5,000 units/monthly
Delivery Time :
5~8 days
Packaging Details :
Carton
mechanism: :
MS628
Printing method :
Thermal dot line printing
Dots/line :
384 dots/line
Dot pitch :
8 dot/mm
Paper width :
58 mm
Printing width :
48 mm
Paper thickness :
54~78 um
printing speed :
150 mm/s
Paper feed direction :
180° horizontal
Dimension (L*W*H) :
75*37*15.5 mm ( FPC L= 73mm)
Description

Android Win XP Linux 2 Inch Thermal Printer For Weight Scale

Quick details:

► Compatible with CUSTOM TG2460H printer

► Dismountable cutter

► panel mount structure

► Ultra high speed max150 mm/s

► Paper jam prevention design

► Mechanism compatible with FTP-628MCL101

► Windows/Linux/Android OS support

► multiple optional accessories

► thermal panel 2inch printer

► For bank terminal

Description:

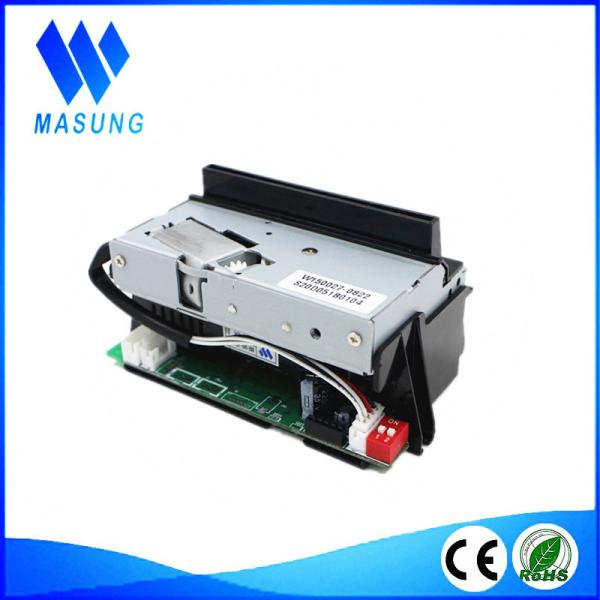

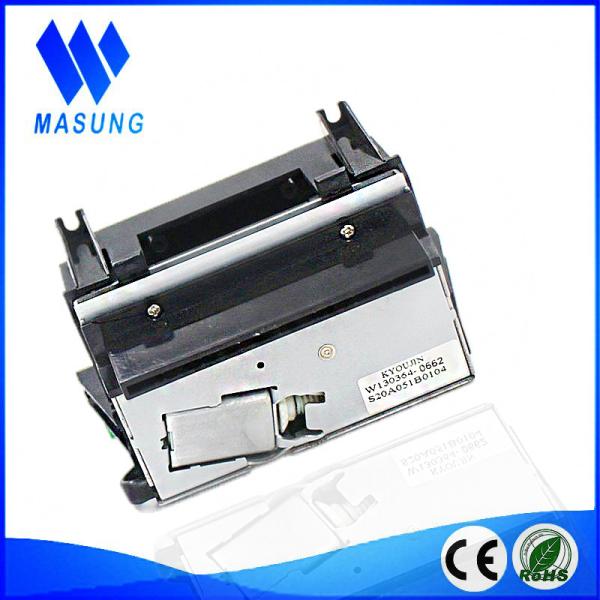

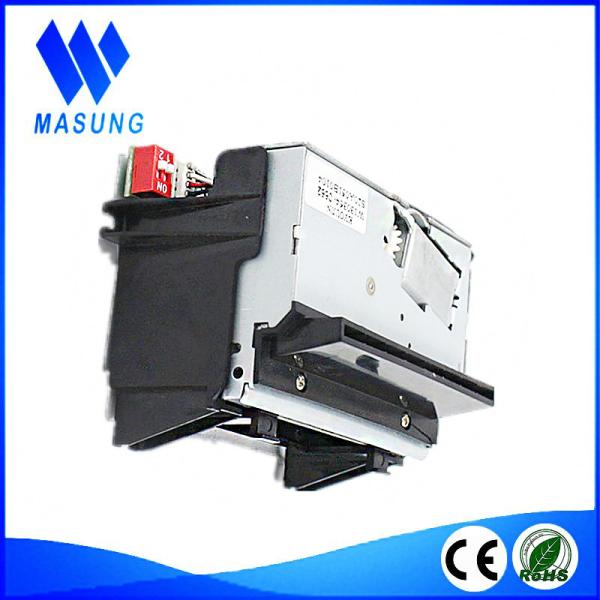

MS-N58VB is 2 inch thermal kiosk printer can be equivalent of TG2460H CUSTOM printer.

Specification:

mechanism:

MS628

Printing method

Thermal dot line printing

Dots/line

384 dots/line

Dot pitch

8 dot/mm

Paper width

58 mm

Printing width

48 mm

Paper thickness

54~78 um

Printing speed

150 mm/s

Paper feed direction

180° horizontal

Sensors

Head temperature

Thermistor

Paper press shaft

Mechanical switch

Paper end

Photo interrupter

Cutting type

Full/partial (by adjustable)

Font size

ASCII:9*17;12*24;

Chinese: 24*24

Power supply

Logic circuit

2.6~3.6 V

Motor

4.75 ~9.5 V

Dimension (L*W*H)

75*37*15.5 mm ( FPC L= 73mm)

Weight

Approx 1.15 kg

Reliability

Circuit: over 1,000,000,000 pulses

Cutter: over 3,500,000 cuts

Thermal head: over 85 km

MCBF: 37,000,000 lines

Ambient environment

Work temperature

-10 ℃~50℃

Work humidity

20~85% RH

Storage temperature

-25℃~70℃

Storage temperature

10~90% RH

Controlling board:

MS-N58V

Interface

RS-232/TTL /USB

power supply

DC 8.5~12V/2.5A

Command set

ESC/POS

Barcode

supported

Firmware location

2 M NV Flash memory

Buffer

4 KB

SRAM

20 KB

Driver

USB driver

System

Windows/Android/Linux OS

Accessories:

paper near end sensor

Interface connector

Power supply unit

Cable

Application:

coin sorter printer;weighing scales; parking machines; queue management system; coupon machines; lottery printers; self-service terminals; attendance devices; ticket vendor; multimedia kiosk and more

Competitive Advantage:

  • Brand-name printer parts
  • Android system support
  • Customization offer
  • Prompt delivery
  • Small order accepted
  • ODM service offerAndroid Win XP Linux 2 Inch Kiosk Ticket Printers For Weight Scale
