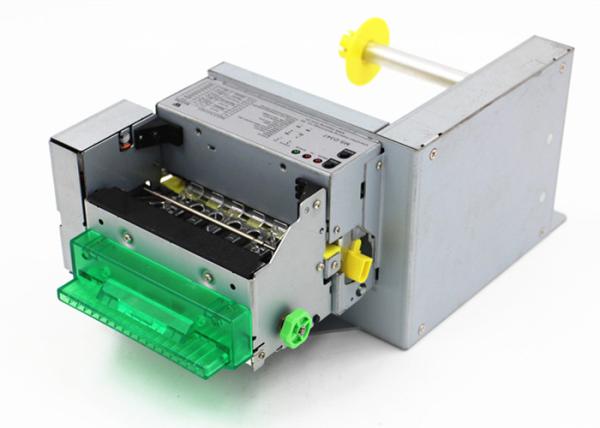

High Speed ATM 3 Inch Thermal Printer With Paper Jam Sensor VKP80II Series
High Speed ATM 3 Inch Thermal Printer With Paper Jam Sensor VKP80II Series
High Speed ATM 3 Inch Thermal Printer With Paper Jam Sensor VKP80II Series
High Speed ATM 3 Inch Thermal Printer With Paper Jam Sensor VKP80II Series
High Speed ATM 3 Inch Thermal Printer With Paper Jam Sensor VKP80II Series
High Speed ATM 3 Inch Thermal Printer With Paper Jam Sensor VKP80II Series
High Speed ATM 3 Inch Thermal Printer With Paper Jam Sensor VKP80II Series
High Speed ATM 3 Inch Thermal Printer With Paper Jam Sensor VKP80II Series
Specifications
Place of Origin :
China
Brand Name :
MASUNG
Certification :
CE; ROSH
Model Number :
MS-D347-THP
MOQ :
1
Packaging Details :
carton and foam materials
Delivery Time :
5~8 days
Payment Terms :
T/T/Paypal/Western union
Supply Ability :
2,000 units/monthly
Price :
USD1~200/piece
Printing method :
Thermal dot line printing
Dots/line :
576 dots/line
Dot pitch :
8 dot/mm
Paper width :
80 mm
Printing width :
72 mm
Paper thickness :
54~78 um
Printing speed :
170 mm/s
Dimension (L*W*H) :
119.45*96.13*80.60mm
Weight :
Approx 1.92 kg
Interface :
RS-232 /USB/Parallel
Description

High Speed ATM 3 Inch Thermal Printer With Paper Jam Sensor VKP80II Series


Quick Detail:

► Brand printer mechanism CAPD347

► Dragging ticket prevention support

► Bezel LED indication

► Big paper holding unit

► Ultra high speed max200 mm/s

► Full /partial cutting mode (by adjustable)

► Windows/Android/Linux system support

► Paper jam prevention support

Description:

MS-D347-THP is designed for superior kiosk printer which can replace for VKP80II series printers. its unique " paper jam prevention" function reduce user maintenance difficuty. QR code and Farsi font printing also support.


Specification:

mechanism:

CAPD347

Printing method

Thermal dot line printing

Dots/line

576 dots/line

Dot pitch

8 dot/mm

Paper width

80 mm

Printing width

72 mm

Paper thickness

54~78 um

Printing speed

170 mm/s

Paper feed direction

180° horizontal

Sensors

Head temperature

Thermistor

Paper press shaft

Mechanical switch

Paper end

Photo interrupter

Paper loading

Easy loading

Font size

ASCII:9*17;12*24;

Chinese: 24*24

Power supply

Logic circuit

4.75~5.25 V

Motor

21.6~26.4 V

Dimension (L*W*H)

119.45*96.13*80.60mm

Weight

Approx 1.92 kg

Reliability

Circuit: over 1,000,000,000 pulses

Cutter: over 7,000,000 cuts

Thermal head: over 100 km

MCBF: 37,000,000 lines

Ambient environment

Work temperature

-10 ℃~50℃

Work humidity

20~85% RH

Storage temperature

-25℃~70℃

Storage temperature

10~90% RH

Controlling board:

Interface

RS-232 /USB/Parallel

power supply

DC 24V/2.5A

Command set

ESC/POS

Barcode

supported

Firmware location

512KB Flash memory

Buffer

32 KB

SRAM

64KB (extra)

Driver

Parallel/USB driver

System

WindowsXP/Win7(32bits or 64 bits)/

Win8/Android/Linux OS

Accessories:

Sensors

paper near end sensor;

paper jam sensor;

dragging paper sensor;

Paper holding unit

Paper guide mouth

Interface connector

Power supply unit

Cable

Application:

Self-service terminal; ATM; parking system; payment kiosk; coupon machine; ticket vendor; inquiry machine; multimedia kiosk; gas station terminal; advertising displayer and more

Competitive Advantage:

Brand-name printer parts

Customization offer

Prompt delivery

Small order accepted

Product performance

Buyer label offer

High Speed ATM 3 Inch Thermal Printer With Paper Jam Sensor VKP80II SeriesThank you for your visit, any questions or needs, please feel free to contact us, we will serve you wholeheartedly!!
