Specifications
Brand Name :
MASUNG
Model Number :
MS-LP212A
Certification :
ROHS/CE
Place of Origin :
CHINA
MOQ :
1pcs
Price :
USD1~150/piece
Payment Terms :
L/C, D/A, D/P, T/T, PAYPAL
Supply Ability :
500PCS PER WEEK
Packaging Details :
Foam+cartons +thermal kiosk printer
Type :
label printer machine
Printing method :
Thermal dot line printing
Dots/lin :
384 dots/line
Dot pitch :
8 dot/mm
Paper width :
58 mm
Printing width :
Printing width
Paper thickness :
54~91 um
Font size :
ASCII:9*17;12*24; Chinese: 24*24
Work temperature :
-10 ℃~50℃
Work humidity :
20~85% RH
Description

58mm Printing barcode thermal label printer with queue management machine

MS-LP212A

Main feasures :

  • High printing speed
  • High quality sticker printer
  • Auto label peeling off printer mechanism
  • Super paper roll re-winder
  • Auto paper calibration system
  • Wide range paper width 35~60 mm
  • Accurate buzzer and indicator alarming

Specifications

Module name MS-LP212A
Type Sticker printer
Resolution 203 DPI
Printing width 56 mm±0.2 mm
Printing speed 120 mm/s
CPU 32 bits RISC Embedded MPU
Memory SRAM: 64 KB ; FLASH: 2 MB
Character set GB18030,Support 16*16/24*24/32*32 bitmap font
ASCII: Support 7*8/6*12/8*16/12*24/16*32 etc
Amplify/Rotate Vertical and horizontal 1~8 times; Rotation: 0°~180°
Graphics manipulation print raster graphics
Bar code CODE 39/UPCA/UPCE/CODE128/EAN13/EAN8/CODEBAR
QR CODE Supported
Type Thermal label printer
Width MAX62mm
Thickness 0.06~0.25 mm
Outside diameter MAX 120 mm
Central spindle diameter Φ28mm,Φ40mm
Input (Power supply) 110~240 V AC,50/60 Hz
Output 24V DC ,rated current 2.5A
Working condition 5~45℃,20%~90%RH(40℃)
Storage -40~60℃,20%~93%RH(40℃)
Dimension 221.2(W)×112(D)×124.5(H)mm
Weight About 2.3 Kg

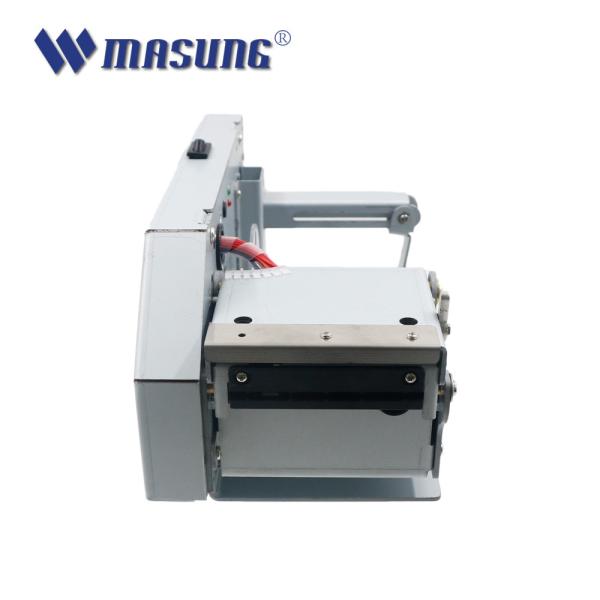

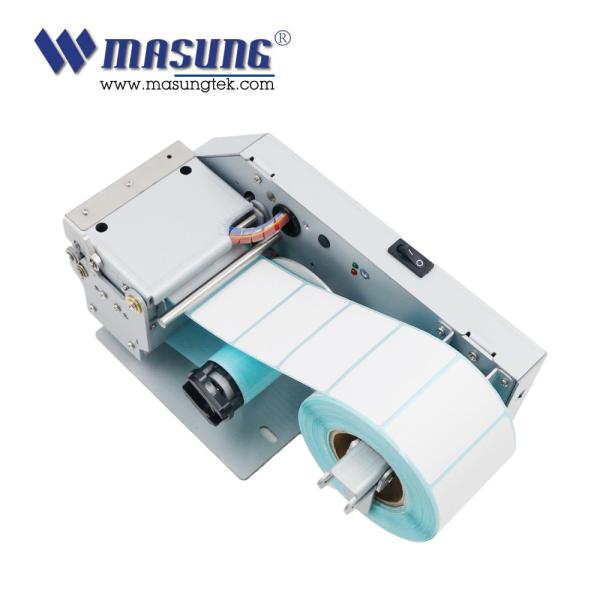

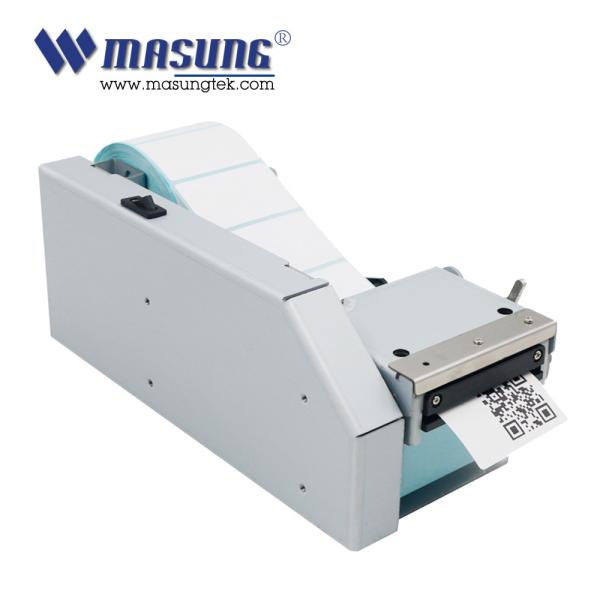

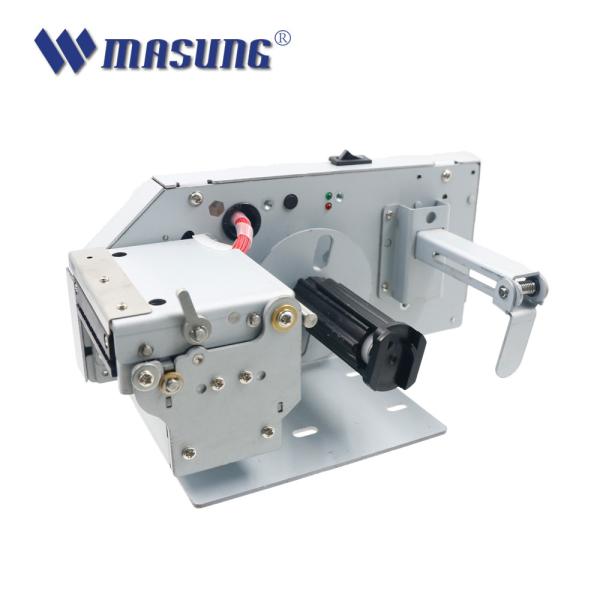

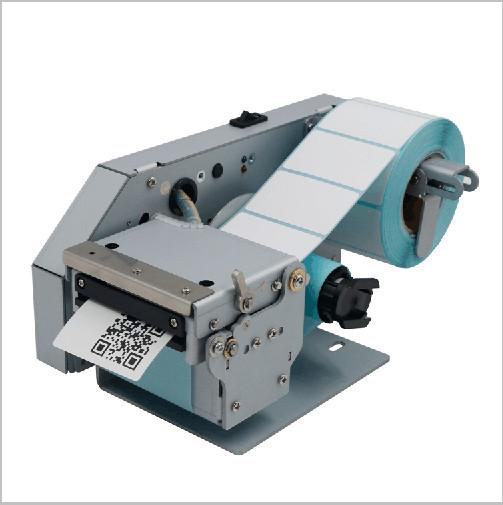

Product show

384 Dots / Line Barcode Label Machine 203 DPI Resolution With Queue Management Machine

384 Dots / Line Barcode Label Machine 203 DPI Resolution With Queue Management Machine
