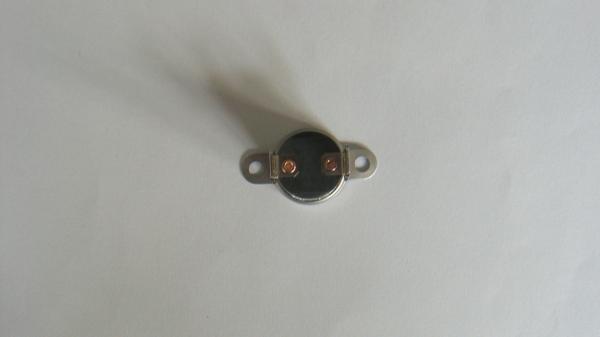

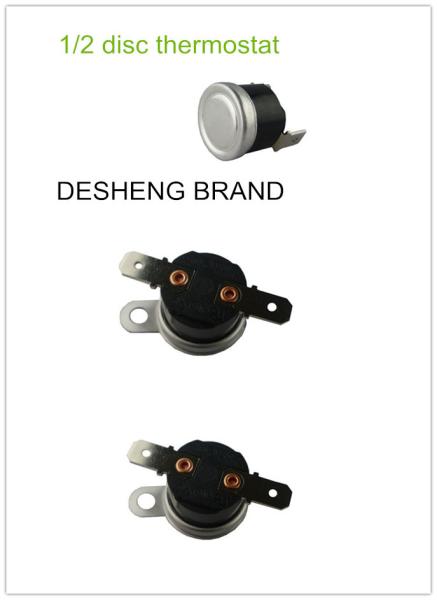

Mini KSD301 Thermostat 16A / 250V 1/2 Disc Thermal Cutout For Cooker , Dish Washer
Mini KSD301 Thermostat 16A / 250V 1/2 Disc Thermal Cutout For Cooker , Dish Washer
Mini KSD301 Thermostat 16A / 250V 1/2 Disc Thermal Cutout For Cooker , Dish Washer
Mini KSD301 Thermostat 16A / 250V 1/2 Disc Thermal Cutout For Cooker , Dish Washer
Mini KSD301 Thermostat 16A / 250V 1/2 Disc Thermal Cutout For Cooker , Dish Washer
Mini KSD301 Thermostat 16A / 250V 1/2 Disc Thermal Cutout For Cooker , Dish Washer
Specifications
Model Number :
KSD
Place of Origin :
China
Brand Name :
DESHENG
Certification :
TUV CQC
MOQ :
1000pcs
Packaging Details :
10,000pcs per carton
Delivery Time :
5-10 days on order date
Payment Terms :
T/T L/C D/P
Supply Ability :
300,000pcs per month
Cycles life :
100, 000 cycles
Product name :
Bimetal Disc Thermostat
Rated voltage and current :
16A/125VAC,10A/250VAC 50HZ/60HZ
Applications :
Water heater / Dish washer / Boiler / Cooker / Drier
Advantage :
High accuracy , Mini-size, light , long lifespan
Certifications :
TUV and CCC
Description

Mini KSD301 Thermostat 16A / 250V 1/2 Disc Thermal Cutout For Cooker , Dish Washer

Applications:

  • Automatic drop coffee machine
  • Water heater
  • Toaster furnace
  • Dish washer
  • Boiler
  • Cooker
  • Drier
  • Electric heating appliance
  • Washing machines
  • Office supplies

Characteristics

Easy mounting.

Rapid heat transmission.

High durability.

No breakdown, no flashover.

Every temperature thermostat will be tested, extremely high temperature pass rate.

High precision.

Key Specification

Detailed Product Description
1. Auto/ manual 10A/250V

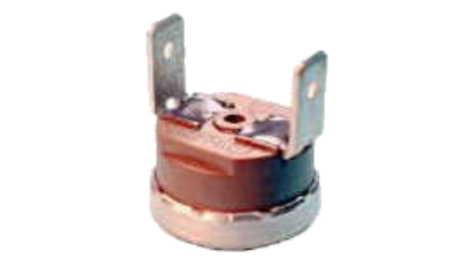

2. Bakelite body or ceramic body
3. Vertical or horizontal terminal

Specification

Rated voltage and current

16A/125VAC,10A/250VAC 50HZ/60HZ

Cycles life

100, 000 cycles

Terminal

6.35*0.8, 4.8*0.5.

Available Calibration Ranges

40℃ up to 180℃,tolerance ±5℃(insulation material PPS)

Available Calibration Ranges

40℃ up t o 220℃,tolerance ±5℃(insulation material 95 ceramics )

Standard Differential

up to 40° C below the min. switching temperature limit lowest limit 30° C. Other values on request

Pull strength

≥80N, no slip off

Dielectric Strength Terminal to Cap

2000 V eff, 50 HZ

Contact resistance

≤100 mW

Min. Rate of Temp. Rise

0,5° C /min

Ambient Temperature Limits

0° up to 200°



Competitive Advantage:

  • Compliant with the RoHS Directive
  • With TUV and CCC safety certification marks

Tracking Resistance of Base Material PTI ≥ 250 V

Mini KSD301 Thermostat 16A / 250V 1/2 Disc Thermal Cutout For Cooker , Dish Washer
