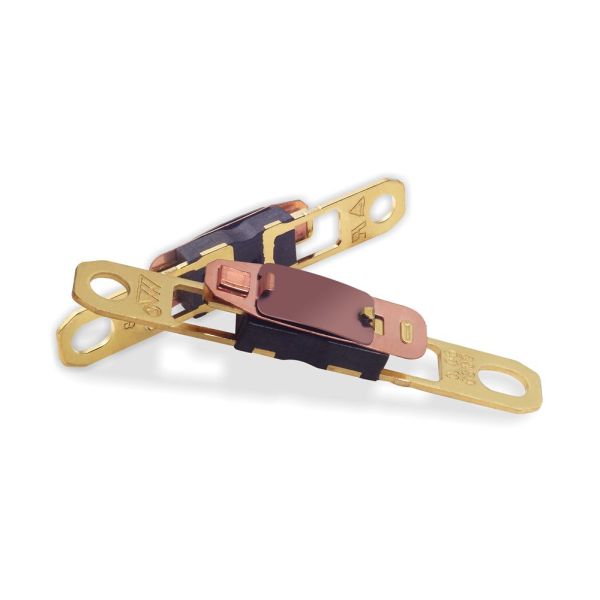

50-15℃ 24VDC 20A Bimetal disc thermostat 6000-10000 cycles 12A 250V
50-15℃ 24VDC 20A Bimetal disc thermostat 6000-10000 cycles 12A 250V
50-15℃ 24VDC 20A Bimetal disc thermostat 6000-10000 cycles 12A 250V
50-15℃ 24VDC 20A Bimetal disc thermostat 6000-10000 cycles 12A 250V
Specifications
Brand Name :
DESHENG
Model Number :
CCS9
Certification :
TUV UL CQC
Place of Origin :
JIANGSU CHINA
MOQ :
1000
Payment Terms :
T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability :
5000000pcs
Delivery Time :
10 days on order date
Packaging Details :
10000pcs per carton
Open temperature :
50-150℃
open temperature tolerance :
±5℃
life cycles :
6000
ON-OFF differential :
＞10℃
Description

Bimetal Disc Thermostat 135℃ For Drier 24VDC 20A 6000 cycles 12A 250V

Principle and structure:

DS series thermal protector is a kind heating protector with an open structure. It is ideal protectors for pet drier, industrial heating gun, and heaters, etc, for its prompt snap action and accurate cutout temperature.

At the heart of the device is a bimetal snap-action disc. When the temperature of this disc reaches its pre-calibrated temperature, it snaps open, resulting in an open circuit. This temperature is reached during a fault condition caused by an increase in ambient temperature. After the device breaks the circuit, the system cools and automatically resets allowing power to be restored to the circuit.

◆ Contact capacity:

20A /24VDC 20A /125VAC 12A /250VAC

Temperature specification:

Open temperature: 50~150±5℃; one gear every 5℃.

ON-OFF differential ＞10℃

Cycles: 6000 cycles @ rated current and voltage.

Safety certifications:

UL: E465826 TUV: R50279441
