Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃
Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃
Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃
Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃
Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃
Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃
Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃
Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃
Specifications
Brand Name :
DESHENG
Model Number :
17AM-D
Certification :
UL VDE CE
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T L/C D/P
Supply Ability :
5,000,000pcs/month
Delivery Time :
3-10 days on order
Packaging Details :
5000pcs per package
Product Name :
Motor Thermal Protector
Contact capacity :
125Vac/16A, 250Vac/8A 600Vac/4A 24Vdc/20A
Temperature Tolerance :
±5°C
Cycles life :
6,000-10,000cycles
Certifications :
UL,VDE,CE CQC
Sleeve :
Mylar or customized
Terminals :
Same or opposite side
Action type :
Snap
Description

Overheating / Overloading Motor Thermal Protector Bimetal Snap Action Disc 50 - 170℃

Description

17AM-D is a thermally operated snap-action device which delivers the over heat protection with advanced structure, high contact capacity and long cycle life. The operating principle of the 17AM-D is both simple and effective. At the heart of the proctor is a bimetal snap–action disc. When the temperature of this disc reaches its pre-calibrated temperature it snaps open, resulting in an open circuit. This temperature is reached during a fault condition, caused by either an increase in ambient temperature, an increase in current flowing through the discs, or a combination of both. After the 17AM-D breaks the circuit, the system cools down and the 17AM-D automatically resets, allowing power to be restored to the circuit.

Specifications

Normally close, open on temperature rise, automatic reset

Contact capacity

125Vac/16A, 250Vac/8A 600Vac/4A 24Vdc/20A

Cycles life

6,000-10,000cycles

Open temperature

50°C to 160°C in increments of 5°C

Temperature Tolerance

±5°C

Differential Temperature

depending on open temperature

Seal

High-seal and low-seal gasket material available

Contact resistance

≤100 mW

Insulation resistance

The resistance between the leads and insulation sleeve is >100 M with 500 VDC at 25 °C.

Applications:

  • Lightings
  • Battery packs and battery charger output
  • Shaded pole motors
  • Fluorescent lighting ballasts
  • Washers and dryers
  • Dishwashers
  • Transformers
  • Automotive accessory motors
  • PC boards
  • ………and more.

Competitive Advantage

1. The strongest Chinese manufacturer, TS16949 and ISO14001 recognized.

2. Compact, miniature size.

3. UL,VDE,CE CQC Approved.

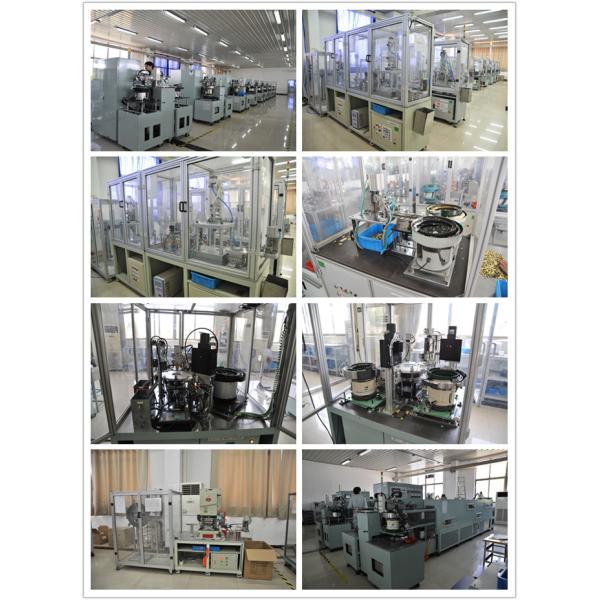

4. Individually temperature checked on modern, custom-designed equipments from Japan.

5. Snap–action disc

6. Gasketed steel case suitable for most impregnation processes

7. Professional solutions with wide selection of leads and insulating sleeves

8. Bbimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application

Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃

Type

Opening Temp.

Closing Temp.(only for reference)

17AM-D60

60±5℃

45±10℃

17AM-D65

65±5℃

50±10℃

17AM-D70

70±5℃

50±12℃

17AM-D75

75±5℃

55±12℃

17AM-D80

80±5℃

55±15℃

17AM-D85

85±5℃

60±15℃

17AM-D90

90±5℃

60±15℃

17AM-D95

95±5℃

65±15℃

17AM-D100

100±5℃

65±15℃

17AM-D105

105±5℃

70±15℃

17AM-D110

110±5℃

70±15℃

17AM-D115

115±5℃

75±15℃

17AM-D120

120±5℃

75±15℃

17AM-D125

125±5℃

80±15℃

17AM-D130

130±5℃

85±15℃

17AM-D135

135±5℃

85±15℃

17AM-D140

140±5℃

90±15℃

17AM-D145

145±5℃

95±15℃

17AM-D150

150±5℃

95±15℃

17AM-D155

155±5℃

100±15℃

17AM-D160

160±5℃

105±15℃

Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃

Overheating / Overloading Motor Protector Bimetal Snap Action Disc 50 - 170℃
