MF58D Waterproof NTC 10k Ohm Thermistor Temperature Sensor Glass Sealed Probe
MF58D Waterproof NTC 10k Ohm Thermistor Temperature Sensor Glass Sealed Probe
MF58D Waterproof NTC 10k Ohm Thermistor Temperature Sensor Glass Sealed Probe
MF58D Waterproof NTC 10k Ohm Thermistor Temperature Sensor Glass Sealed Probe
Specifications
Brand Name :
HCET
Model Number :
NTC
Certification :
ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
10000 pcs per carton
Product name :
NTC thermistor
Material :
plastic case
Temperature range :
-40~150℃
Tolerance :
±1%,±2%, ±3%
Resistance values :
customizable
B values :
customizable
Application :
Cooker/Microwave/Refrigerator
Description

HCET MF58D Waterproof NTC Thermistor Sensor Glass-Sealed Probe for Cooker/Microwave/Refrigerator

HCET NTC Thermistors are precision-engineered temperature sensors crafted from advanced metal oxide ceramics, sintered for extreme durability. With resistance values ranging from 1K to 200K and operating temperatures spanning -40℃ to 350℃, these sensors deliver rapid resistance drop characteristics (R-T curve) for real-time thermal monitoring. The hermetic glass-sealed/epoxy-coated design ensures IP67 waterproof performance, ideal for humid environments (e.g., rice cookers, automotive cooling systems). Customizable wire lengths (13cm to 2m) and flexible mounting options cater to diverse applications, from medical incubators requiring ±0.1℃ accuracy to industrial boilers demanding corrosion resistance.

Product feature:

  • Robust Construction
    - Glass/Epoxy Encapsulation: Resists moisture, chemicals, and mechanical stress
    - Wide Temperature Range: Stable performance from -40℃ to 350℃ (extended range upon request).
  • Precision & Speed
    - B Value Accuracy: ±1% tolerance (25/50℃) for medical/industrial calibration.
    - Response Time <5s: Critical for HVAC compressors and EV battery thermal management.
  • Application Adaptability
    - Multi-Resistance Options: 1K, 5K, 10K, 50K, 100K, 200K for circuit compatibility.
    - Custom Probes: Threaded, bolted, or adhesive mounting for printers/industrial robots.

Electrical Characteristics:

-40℃~120℃
Temperature range available, customizable temperatures available, contact us.
1K 5K 10K 15K 20K 50K 100K 150K 200K
Products with the above resistance values ​​can be customized, please contact us.
3380K/3435K/3500K/3700K/3950K/3985K/4050K/4150K/4250K/4450K
Beta value can be customized, please contact us.
13cm 20cm 25cm 30cm 35cm 40cm 50cm 1m 2m
Wires of various lengths can be customized.

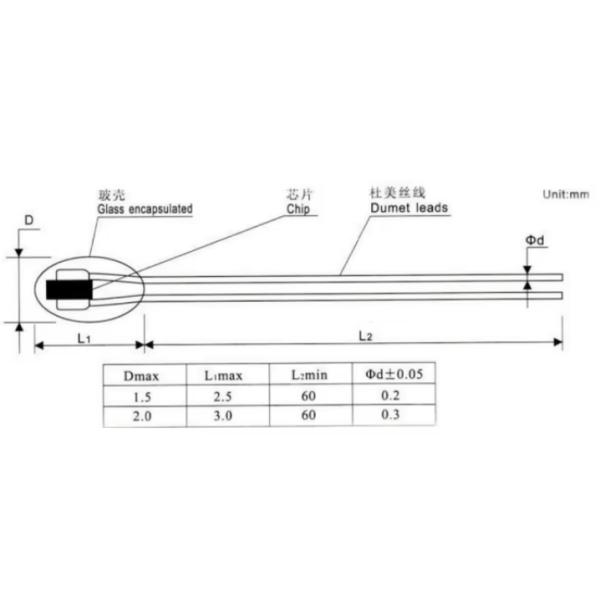

Dimension size

MF58D Waterproof NTC 10k Ohm Thermistor Temperature Sensor Glass Sealed Probe

Product detail

MF58D Waterproof NTC 10k Ohm Thermistor Temperature Sensor Glass Sealed Probe

MF58D Waterproof NTC 10k Ohm Thermistor Temperature Sensor Glass Sealed Probe

Application

MF58D Waterproof NTC 10k Ohm Thermistor Temperature Sensor Glass Sealed Probe
