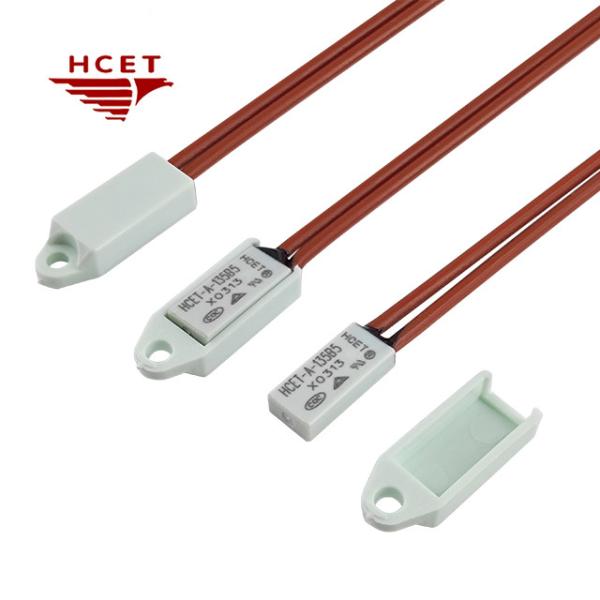

Precision KSD9700 Thermal Switch Overload Protection Cutoff For Fan Motors
Precision KSD9700 Thermal Switch Overload Protection Cutoff For Fan Motors
Precision KSD9700 Thermal Switch Overload Protection Cutoff For Fan Motors
Precision KSD9700 Thermal Switch Overload Protection Cutoff For Fan Motors
Specifications
Brand Name :
HCET
Model Number :
HCET-A5
Certification :
CQC, UL, TUV, CE, ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
5000 pcs per carton
Product name :
TB05/KSD9700 thermal switch
Material :
plastic or metal
Temperature range :
35℃~160C
Tolerance :
±3℃,±5℃
Voltage :
250V
Current :
5A/10A
Application :
Fan motors
Description

HCET TB05/KSD9700 Bimetal Thermal Protector Switch Motor Overload Protection Precision Cutoff for Fan motors

The HCET TB05 Thermal Protector is a high-performance bimetal temperature switch designed for reliable overload protection and precise thermal management in motors, industrial equipment, and household appliances. As a direct equivalent to the KSD9700/TB05 series, this compact thermal cutoff switch combines a snap-action bimetal disc with a robust 6A/250V AC or 8A/125V AC capacity, ensuring rapid response to temperature fluctuations while safeguarding against overheating. Ideal for motor protection, transformer cooling systems, HVAC controls, and heating appliances, it features ±3℃ tolerance for critical temperature-sensitive applications. With dual termination options, it supports flexible installation in global markets demanding UL, CE, and RoHS compliance.

Product feature:

  • High-Capacity Protection
    - 6A/250V AC or 8A/125V AC rating for motors, transformers, and high-current appliances.
    - Snap-action bimetal disc ensures fast circuit interruption during overloads.
  • Precision Temperature Control
    - Calibration range: 35°C to 160°C (±3°C tolerance) for HVAC, industrial machinery, and home appliances.
    - Reliable thermal cutoff for overheating prevention in motors and heating elements.
  • Compact & Durable Design
    - Miniature size (compatible with KSD9700) saves space in tight installations.
    - Resists vibration and harsh environments, ideal for industrial and automotive applications.
  • Global Compliance & Safety
    - Meets UL, CE, and RoHS standards for international market requirements.
  • Multi-Application Versatility
    - Protects motors, pumps, power tools, lighting systems, and electrical blankets.
    - Compatible with automatic impregnation processes for mass production.

Electrical Characteristics:

35℃~160C
Temperature Range(Customizable temperature, please contact us.)
±3°℃, ±5℃
Temperature Tolerance
8amps/24 volts DC
6amps/250 volts AC
8amps/125 volts DC
Electrical Specifications

Dimension size

Precision KSD9700 Thermal Switch Overload Protection Cutoff For Fan Motors

Precision KSD9700 Thermal Switch Overload Protection Cutoff For Fan Motors

Product detail

Precision KSD9700 Thermal Switch Overload Protection Cutoff For Fan Motors

Precision KSD9700 Thermal Switch Overload Protection Cutoff For Fan Motors

Application

Precision KSD9700 Thermal Switch Overload Protection Cutoff For Fan Motors
