Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM
Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM
Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM
Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM
Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM
Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM
Specifications
Brand Name :
HCET
Model Number :
PT100
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
500 pcs per carton
Product name :
PT100 temperature sensor
Temperature range :
-50℃~200℃
Response Time :
0~6s
wire :
customizable
Application :
Ventilator & incubator
Description

Medical Grade PT100 Temperature Probe High Sensitivity Temperature Monitoring

High sensitivity PT1000 temperature sensor developed specifically for medical and laboratory use, using biocompatible epoxy resin package, safe contact with the human body and biological samples. 0.05°C resolution, fast response to temperature changes, suitable for respiratory machines, constant temperature incubators, vaccine cold chain monitoring and other scenarios. Flexible silicone cable + miniature probe design, combining durability and accurate measurement.

Product feature:

  • Ultra-high resolution: 0.05°C micro-temperature difference detection, suitable for precision medical equipment
  • Biocompatible materials: epoxy resin probe, corrosion and aging resistance, suitable for human contact
  • Fast response time: <0.5 seconds (in water), real-time monitoring of dynamic temperature changes
  • Flexible installation: miniature probes (2mm diameter) + bending-resistant silicone cable, suitable for narrow spaces

Electrical Characteristics:

-50℃~200℃
Control temperature range, customizable temperature, contact us.
0~6s
When the water flow rate is 0.2m/sec and the protective tube is 4mm.
2-wire/3-wire/4-wire
Various lengths, single or multiple cores available on request.

Dimension size

Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM

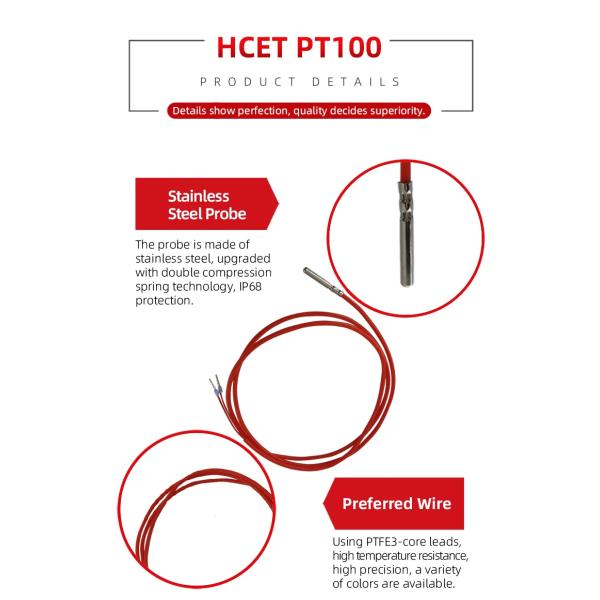

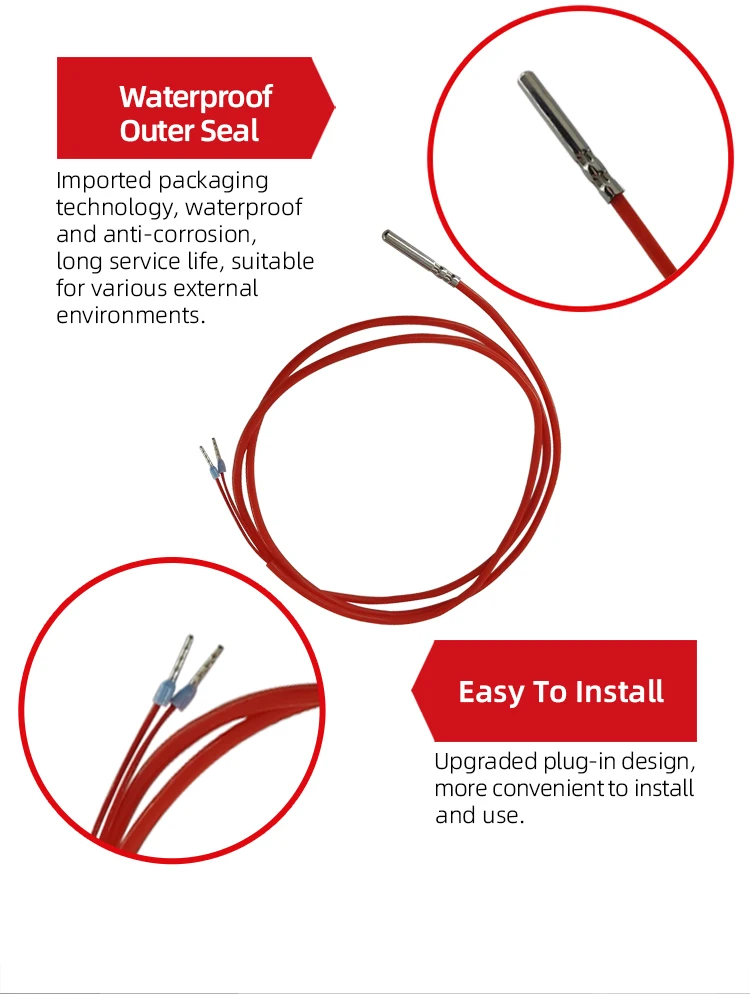

Product detail

Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM

Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM

Application

Medical Grade PT100 Temperature Sensor Probe High Sensitivity Monitor OEM
