Specifications
Brand Name :
HCET
Model Number :
VA1/VAA1
Certification :
CQC, UL, TUV, CE, ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
5000 pcs per carton
Product name :
VA1 creep action thermostat
Material :
plastic case
Temperature range :
0~200℃
Tolerance :
±3℃,±5℃
Voltage :
120V
Current :
5A
Application :
Automotive seat heaters
Description

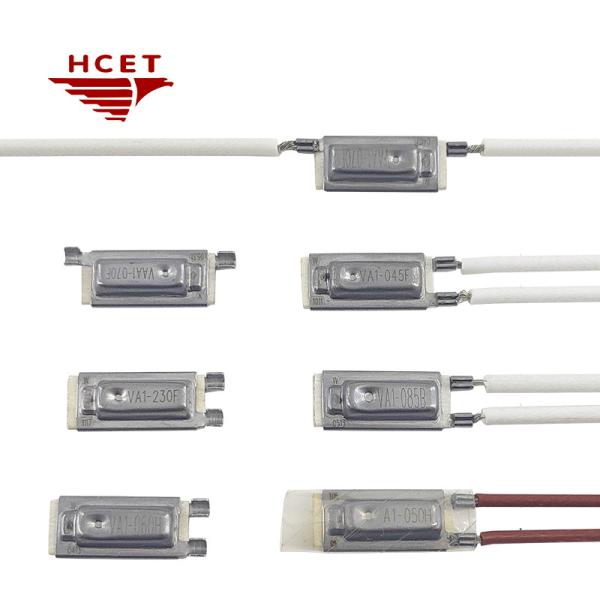

HCET VA1/VAA1 Creep Action Thermostat Bimetal Thermal Protector 5A 120VAC for Automotive seat heaters Replace PEPI

The HCET VA1/VAA1 Creep Action Thermostat is a precision-engineered thermal protection device designed for low-voltage heating applications requiring reliable temperature control. Featuring a conductive bimetal construction that directly carries circuit current, this slow-action thermostat ensures arc-free switching to prolong service life in 120VAC systems. Pre-calibrated with ±3℃ tolerance and no built-in differential, it excels in electric blankets, heated pet pads, medical warming devices, and small appliance safety circuits.

Product feature:

  • Inherent Safety Design
    - Conductive bimetal construction eliminates secondary contacts, reducing failure points
    - Slow make/break action prevents arcing in low-current inductive loads (≤5A)
  • Precision Thermal Regulation
    - Factory-preset calibration from 5°C to 200°C (±3℃ option available)
    - Zero differential ensures immediate circuit interruption at trip point
  • Cross-Industry Versatility
    - Medical: Patient warming systems, therapeutic heat pads
    - Home Textiles: UL-certified electric blankets, heated mattress pads
    - Industrial: Low-voltage process heaters, battery thermal management

Electrical Characteristics:

0℃~200℃
Temperature Range
(Customizable temperature, please contact us.)
±3℃, ±5℃, ±8℃
Temperature Tolerance
VA1&VAA1: 2A/120VAC
VA2&VAA2: 5A/120V AC
Electrical Specifications
