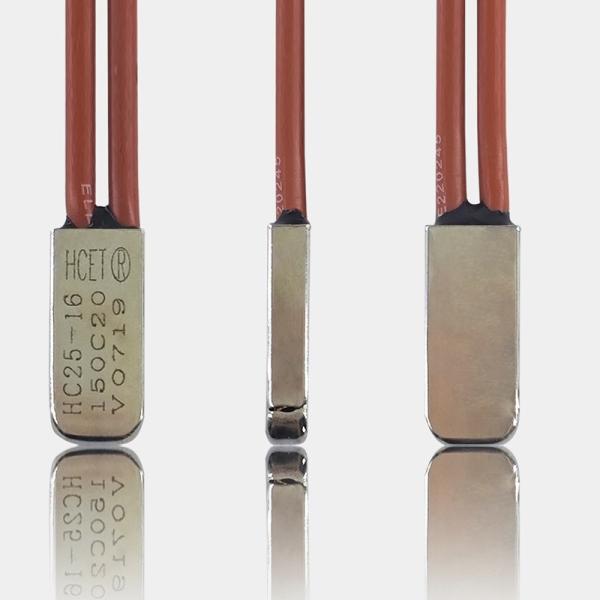

HCET Thermal Protector Switch Motor Temperature Cutoff Switch For Battery Charging
HCET Thermal Protector Switch Motor Temperature Cutoff Switch For Battery Charging
HCET Thermal Protector Switch Motor Temperature Cutoff Switch For Battery Charging
HCET Thermal Protector Switch Motor Temperature Cutoff Switch For Battery Charging
HCET Thermal Protector Switch Motor Temperature Cutoff Switch For Battery Charging
HCET Thermal Protector Switch Motor Temperature Cutoff Switch For Battery Charging
Specifications
Brand Name :
HCET
Model Number :
HC25
Certification :
ROHS
Place of Origin :
China
MOQ :
1000
Price :
please contact us
Payment Terms :
T/T
Supply Ability :
10000000 pcs per month
Delivery Time :
5-7 work days
Packaging Details :
2000 pcs per carton
Product name :
HC25 thermal cutoff switch
Material :
metal case
Temperature range :
70℃~160C
Tolerance :
±5℃,±8℃
Voltage :
250V
Current :
16-40A
Application :
Pumps, Transformers, Battery Charging Systems
Description

HCET HC25 Three-Phase Thermal Protector 16A/25A/35A Motor Protection Switch for Pumps, Transformers, Battery Charging Systems


The HCET HC25 Three-Phase High Current Thermal Protector is a precision-engineered safety solution designed for heavy-duty industrial applications. With a rated capacity of 16A, 25A, or 35A at 250V AC 50/60Hz, this epoxy-sealed protector ensures ultra-low internal resistance and minimal current interference, making it ideal for pumps, transformers, high-power motors, and battery charging systems.

Featuring a preset temperature calibration range of 70°C to 160°C (±5°C/±8°C accuracy), its closed structure provides dust-proof and impact-resistant protection in harsh environments. The pure temperature-triggered mechanism eliminates false tripping caused by current fluctuations, while the insulated casing design meets international electrical safety standards.

Product feature:

  • Industrial-Grade Durability
    Epoxy resin encapsulation with vacuum varnish ensures moisture resistance and mechanical stability for long-term operation in pumps, compressors, and motor-driven equipment.
  • Precision Temperature Control
    Pure thermal activation design (no magnetic interference) with factory-preset thresholds (70-160°C) guarantees accurate overload protection for transformers and power systems.
  • High Current Capacity
    Supports 3-phase systems up to 35A/250V AC, specifically engineered for HVAC systems, industrial machinery, and EV battery charging stations.
  • Zero-Maintenance Design
    Sealed construction prevents dust/contaminant ingress, eliminating field adjustments and reducing downtime in manufacturing plants.

Electrical Characteristics:


70℃~160C
Temperature Range(Customizable temperature, please contact us.)
±5°℃, ±8℃
Temperature Tolerance
250V AC 50HZ/60HZ 16A,25A,35A
Electrical Specifications


Dimension size

HCET Thermal Protector Switch Motor Temperature Cutoff Switch For Battery Charging


Product detail

HCET Thermal Protector Switch Motor Temperature Cutoff Switch For Battery Charging


Application

HCET Thermal Protector Switch Motor Temperature Cutoff Switch For Battery Charging
