150L Homemade Compact Low Pressurized Pre Heated Solar Water heater for Bathing

Specification:

Working principle of pre-heat solar water heater:

1. The high quality vacuum tubes absorb the solar ultraviolet ray and visible light; then heat the cold

water in the vacuum tube.

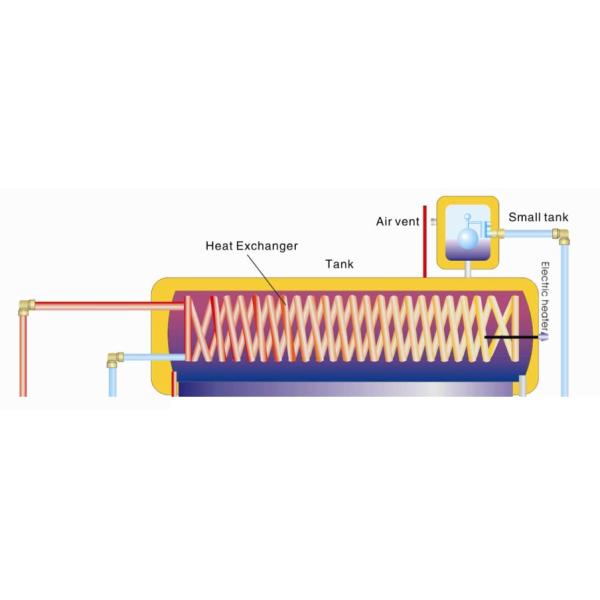

2. The hot water rise in the top of the water tank, and the cold water sink to bottom then heat

by solar collector. So the whole system is always circulating continuously. The water we use that

is in the copper coil, not in the water tank, the tap water connect to the copper coil directly, the hot

water in the water tank exchange the heat with the tap water in the copper coil
3. The Assistant water tank can perform the water supply automatically, the water in the tank is

not sufficient, the electromagnetism valve will open its valve, the tap water flow in the water tank,

if the water is full, it will close the valve automatically
4. The whole system can endure high pressure according to the pressure-bearing technology

1. Packing: Standard export carton with foam or wooden box, Wooden Box Packing for Sample

2. Shipping: 7 days for sample, 15 days for 20/40 container.

3. MOQ: 20'GP container (Sample is available)

4. Warranty: 10 years guarantee for whole set solar water heater

5. Port of departure: Shanghai or Ningbo

6. Supply ability: 8000 sets per month

Competitive Advantage:

1. We get instant clean and pressure hot water from copper coil outlet;

2. Simple structure with very easy installation and pipeline connection;

3. With copper coil exchanger we do not need to locate the solar water heater at the house top;

4. PASSION argon-arc welding and in-house testing ensures a long lasting storage tank without any leakage problem;

5. PASSION makes a high-density integral PU insulation for the tank with heat preservation as long as 72~80 hours;

6. The solar vacuum tube is made of high borosilicate glass with stable performance and no blasting problem for 15 years;

7. The support frame is designed for slope and flat roof installation, aluminum alloy with stainless fastener has no rusty problem;

8. PASSION pre-heat solar water heater can be equipped with assistant tank and electric heater to make an automatic-operating system;

9. We install sample solar water heater for every order before delivery to ensure no mistakes or missing parts for customers.
