200L Energy Saving Split Solar Water Heater Stainless Steel Coil Super Heat Pipe Solar Collector

Specification

1) Manifold (interior) material: red copper, 38mm thickness.
2) Manifold (exterior) material: aluminum alloy
3) Bracket: aluminum alloy steel 1.2mm/1.4mm/1.8mm/2.0mm thickness.
4) Frame degree: 0 degree-51 degree. Dual-purpose frame for both flat and inclined roof.
5) Insulation layer: rock wool.
6) Vacuum tube coating material: AL-N-AL or AIN-SS-Cu, tube dimensions: 58 x 1.800 mm / 47 x 1.500 mm, 8mm red copper heat pipe.
7) Capacity: 50L-500L
8) Pressure bearing: 6Bar=0.6MPa
9) Heat preservation: 72h to 80h
10) Hail resistance: 25mm10.
11) Daily efficiency: >= 55% (>=42% in winter)

Working principle

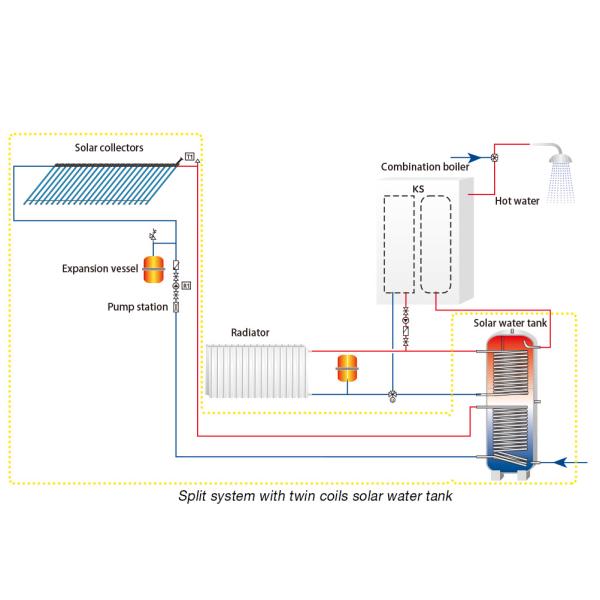

Split pressurized solar water heater has solar collectors on roof and water tanks inside the house. When the difference of collector temperature and tank temperature gets to the set value, the circulation system will start work. It will transmit the solar energy from solar collector to the tank.
The operation of the solar collector is very simple. Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat. Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the header pipe. Solar energy storage: water is circulated through the header, via intermittent pump cycling. Each time the water circulates through the header, the temperatures is raised by 5-10 C. Throughout a day, the water in the tank is gradually heated.

Advantages

1) The upright tank can make the water temperature to a high level. It can hot the water instantly.
2) The tank inside the building, the hot water loses less energy than the normal one.
3) The pressurized solar water heater collector and the water tank is separated, that makes the

system combine with the building perfectly, which will reduce the sightseeing for the building

and environment around.
4) Back up with electric heater so that in the day without sunshine hot water can also be used.
5) Can be combined with gas or electric heater.
6) Max. Pressure: 12bar; Operating Pressure: 6 bar.
7) It can be used for other function, such as warming.

Package

1) Selling package: all export carton.
2) Transport package: Samples use the wooden box, other use the export cartons.
3) Shipping: Small LCL and high value suggest the air transport . FCL use the sea voyage.

Service

1) We offer customers 5 years for whole solar systems.

2) Carton design for customs is free offered when goods sent by container.

3) When you have any questions regarding our products, feel free to contact us. We will be very glad to service for you.

It's hoped that our solar system can save you more money as well as protect our environment.

Remark

1) We offer 2% vacuum tubes for free for exchange in case several shattered vacuum tubes during transit.
2) About the following accessories, if you need, we can offer it to you, But should charge it.
