CE Approved Solar Thermal 14mm Condenser Heat Pipe Solar Collector Aluminum Alloy Frame

Product Description:

The vacuum solar collector is device that absorbs thermal energy from the sun and converts it into usable heat.

The heat is normally absorbed by water, or a freeze resistant water mix, which can then be used to supplement hot water heating, space heating and even space cooling via use of an absorption chiller or dessicant cooler technology.

Features:

Manifold (interior): thickness1.0-1.2 Copper pipe

Manifold Casing Material: thickness 2.0mm Aluminum alloy (Black or silver)

Insulation: high density rock wool

Frame Material 2.0-3.0mm thickness Aluminum alloy

Vacuum tube dimension: ø58mm* 1800mm

Coating of vacuum tube: CU-SS-ALN/ALN.

No of vacuum tube: 18pcs

Daily output (50 oC ): 120-180L

Daily efficiency: average ≥55%, ≥45% in winter

Heat pipe: anti-freezing > -35 centigrade

Optimal installation angle 20-70°Vertical

Test Pressure: 1.2 Mpa (12 bar)

Working pressure: 0.6 Mpa (6 bar)

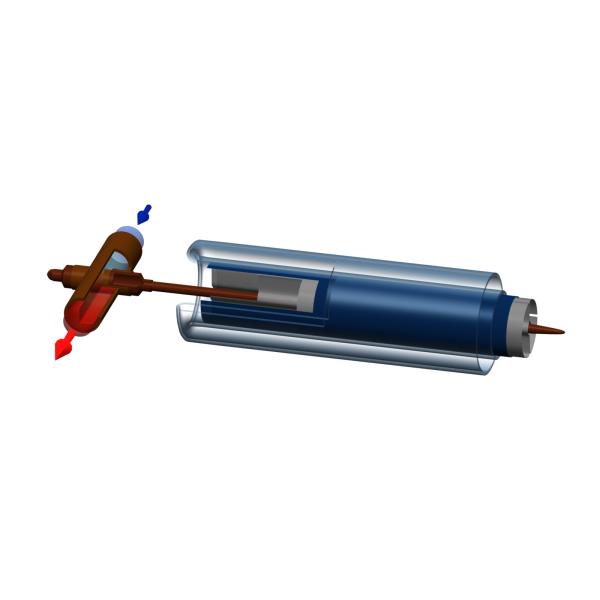

Working principle:

A solar thermal collector is a vacuum tube solar collector designed to collect heat by absorbing sunlight.

The simpler solar collectors are typically used for supplemental space heating in residential and commercial buildings.

A vacuum tube solar collector is a device for converting the energy in solar radiation into a more usable or storable form.

The energy in sunlight is in the form of electromagnetic radiation from the infrared (long) to the ultraviolet (short) wavelengths.

The solar energy striking the Earth's surface depends on weather conditions, as well as location and orientation of the surface, but overall, it averages about 1,000 watts per square meter under clear skies with the surface directly perpendicular to the sun's rays.

Solar Keymark, SRCC Certified: EN12975, OG-100

High - Performance, High Efficiency

Top Quality Materials & Construction

Specifications:

Quality Guarantee:

We provide 5years warranty of solar collector and shipment with 1% spare parts.

We can send the parts free on condition that there is any breakdown with convincing evidence.

1% spare parts include:

Wiper scraper seal

Tube holder

Screws & screw caps

QC Team:

A QC team with more than 10years’ experience and technical personnel, to ensure 100% products checking.

Material:

Strictly control of material purchasing and using, meet international requested standards.

Semi-finished products inspection:

Product inspection before 100% finished, such as visual inspection, leaking and pressure testing, comprehensive safety test and so on.

Production line test:

With work team or data engineer who will inspect machines and lines at fixed period.

Finished product inspection:

Quality and property test before products are packed and loaded.

Contact:

We will reply your email or fax within 24hours

You can call us at any time if there is any question on our production
