High Absorption Heat Pipe Collector , Solar Hot Water Collector Pitched Roof Installation
High Absorption Heat Pipe Collector , Solar Hot Water Collector Pitched Roof Installation
High Absorption Heat Pipe Collector , Solar Hot Water Collector Pitched Roof Installation
High Absorption Heat Pipe Collector , Solar Hot Water Collector Pitched Roof Installation
High Absorption Heat Pipe Collector , Solar Hot Water Collector Pitched Roof Installation
High Absorption Heat Pipe Collector , Solar Hot Water Collector Pitched Roof Installation
High Absorption Heat Pipe Collector , Solar Hot Water Collector Pitched Roof Installation
High Absorption Heat Pipe Collector , Solar Hot Water Collector Pitched Roof Installation
Specifications
Brand Name :
PASSION/OEM
Model Number :
10tubes
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000units/month
Delivery Time :
10 working days
Packaging Details :
CARTONS/PLYWOOD CASE/PALLET
Tubes :
10 Tubes
Insulation :
Rock Wool+ Polyurethane
Frame :
Adjustable Aluminum Alloy
Installation :
Pitched Roof
Heat Pipe :
24mm Condenser Copper
Manifold Color :
Silver
Collector :
Heat Pipe
Application :
Shower
Description

High Absorption Heat Pipe Solar Collector 10 Tubes With 25 Degree Adjustable Frame

Product Description

heat pipe solar collector, solar water heater, solar collector, evacuated tube & heat pipe, solar renewable energy

Advantages

1. Solar Keymark, SRCC, AS/NZS 2712 certified
2. Provide excellent and quick response after-sales service
3. Professional technical support

Product overview

The evacuated tube solar collectors are suitable for both residential and commercial applications. The design of the solar collector is a culmination of nearly 10 years of feedback from installers and solar professional all over the world and aims to meet their requirements with the following:

Key features

• Modular “plug ‘n’ play” design (Manifold, frame and tubes in separate packages)
• Lightweight manifold design
• Choice of Stainless Steel or Anodized Aluminum mounting frames
• Extremely reliable header design due to only 6 brazing joints
• Contoured header for turbulent flow even at low flow-rates
• All glass wool insulation for high temperature stability
• Patented heat transfer fin design for optimal heat transfer
• Long term stability under extreme conditions
• Extreme cold (freeze protected heat pipes)
• Coastal regions (salt spray)
• Harsh UV radiation (UV stabilized components)
• High Winds (up to category C cyclone)
• Snow loading

Solar Collector Specifications
ComponentsMaterial & Specifications
Evacuated TubesMaterial: Borosilicate 3.3
Tube style: Twin wall all glass
Dimensions: Φ58mm outer tube; Φ47mm inner tube;
1.8m length, 1.8mm outer tube wall thickness
Solar Absorb CoatingMaterial: Graded AL/N on AL
Absorptance: >92% (AM1.5); Emittance: <8% (80oC)
Vacuum: P<5x10-3 Pa; Heat loss: <0.8W/ (m2 oC)
Heat PipesMaterial: High purity “oxygen free” copper (ASTM: C10200, DIN: OF-Cu)
Heat transfer fluid: distilled water
Maximum heat transfer capacity: 220W
Operating angle: 20-80o Startup temperature: ~30oC
Copper Header PipeMaterial: Copper (ASTM: C1100, DIN: ECu-58); Potable water rated.
Brazing rod: BAg45CuZn Maximum pressure: 800kPa
Connection Options: 7/8” OD copper (US size), 19.1mm OD flared nut
(Australia) or 22mm OD copper (Europe)
Heat Transfer FinsMaterial: High purity aluminum
Rubber ComponentsMaterial: HTV Silicone Rubber (UV stabilised)
Mounting FrameMaterial: 439 Stainless Steel or 6005-T5 Aluminum Alloy
Tube ClipsMaterial: 301 Stainless Steel
FastenersMaterial: 304 Stainless Steel
Manifold CasingMaterial: 5005-H16 Aluminum with Anodized or Powder Coated Finish
Manifold InsulationMaterial: Glass Wool (K = 0.043W/mK)
Thickness: Average >50mm

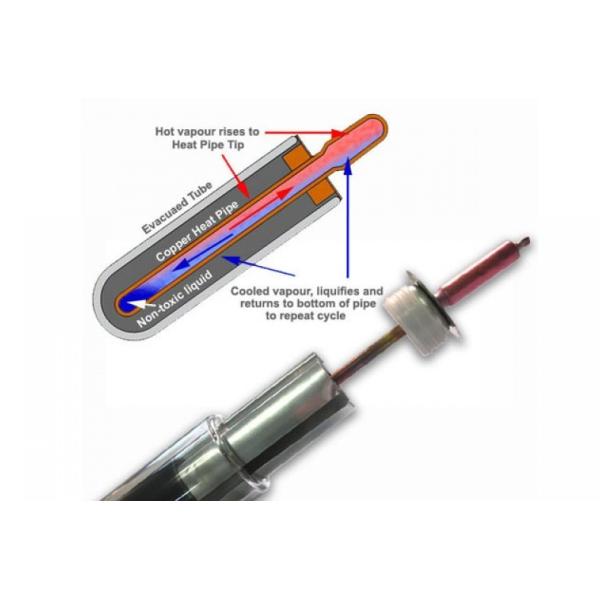

Solar Collector Operation

Step 1: The absorber coating on the inner glass tube absorbs sunlight and converts it into heat.
Step 2: Steam forms inside heat pipe which transfers heat rapidly up to the manifold.
Step 3: A pump circulates water or heat transfer fluid through the header pipe, carrying heat back to the
storage tank. Gradually throughout the day the tank is heated up.
