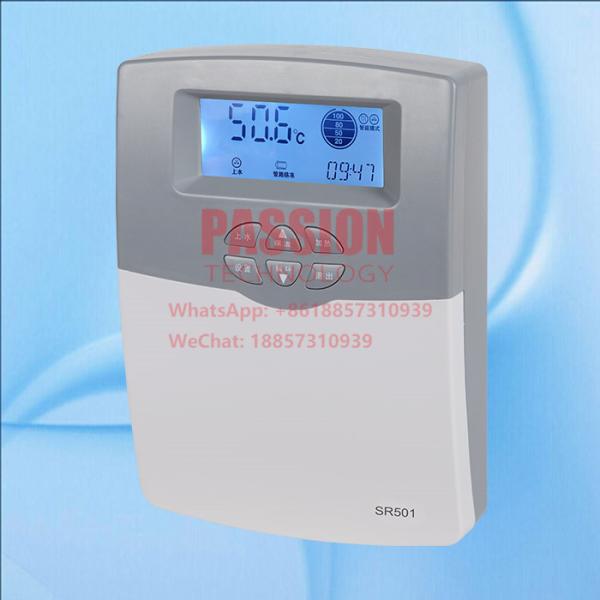

SR501 Water Level Controller Temperature Control Solar Water Heater

Introduction:

Suitable for integrated un-pressurized solar system

Main Technical data:

1 Dimension: 210 mm x 145mm x 40mm
2 Self power consumption: <3W
3 Measuring accuracy of temperature: ±2℃
4 Temperature range of measurement: 0～99℃
5 Maximum power of controlled pump: ≤600W
6 Power of accompanied electrical heating wire: ≤800W
7 Power of auxiliary electrical booster ≤2000W ( standard collocation),
≤3000W (not standard selection available )
8 Electromagnetic valve parameter: DC 12V AC 220V

pressurized valve and un-pressurized valve are available for selection
※ operation pressure of pressurized valve: 0.02Mpa ~ 0.8Mpa
suitable for providing water directly
※operation pressure of un-pressurized valve: 0.0Mpa
connected with water tank or low pressure water providing

Main Functions:

1, Time display
2, Water temperature display
3, Water level display
4, Auto mode
5, Water level pre-setup
6, Manual water loading
7, Temperature controlled water loading
8, Timing water loading
9, Water loading when tank is lack of water
10,Compulsive water loading
11,Increasing Water pressure during water is loaded.
12,Manual heating
13,Timing heating
14,Hot water circulation
15,Hot water pipe insulation
16,Low pressure protection
17,Collector tube protection
18,Memory protection when power is failure.

Working principle:

Non-pressure solar water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required.
They are simple, economic and practical.
As the specific gravity of hot water and cold water are different, cold water goes downward and hot water goes upward.
When cold water in evacuated tubes is heated, it becomes lighter and goes to the water tank.

While cold water in the tank goes down to the evacuated tubes
Through this circulation, the cold water in the water tank will be gradually heated.
