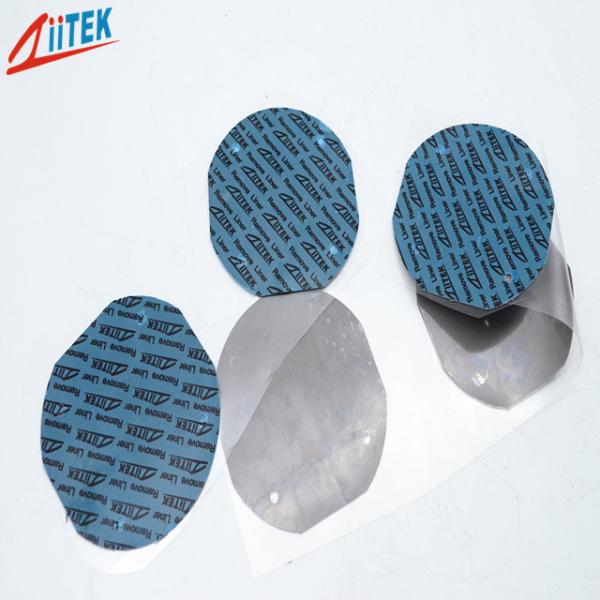

Insulation Electrically Isolating Cpu Thermal Pad 4.2 Mhz For Mass Storage Devices
Insulation Electrically Isolating Cpu Thermal Pad 4.2 Mhz For Mass Storage Devices
Insulation Electrically Isolating Cpu Thermal Pad 4.2 Mhz For Mass Storage Devices
Insulation Electrically Isolating Cpu Thermal Pad 4.2 Mhz For Mass Storage Devices
Specifications
Brand Name :
Ziitek
Model Number :
TIF1100-50-11US thermal pad
Certification :
UL
Place of Origin :
China
MOQ :
1000 pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
3-8 work days
Packaging Details :
25*24*13cm canton
part number :
TIF1100-50-11US
KEYWORD :
gray silicone rubber pads
hardness :
20 shore00
thermal conductive :
5.0W/mK
material :
silicone
color :
gray
Description

insulation Electrically isolating thermal pad for Mass storage devices ,4.2 MHz

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.


TIF100-50-11US-Datasheet-REV02.pdf

TIF1100-50-11US use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
<Good thermal conductive:5.0W/mK
<Thickness:2.5mmT
<Hardness:20 Shore 00
<Colour: gray

<Electrically isolating

<High durability

<Good thermal conductive

Applications

<cooling components to the chassis of frame

<High speed mass storage drives

<Heat Sinking Housing at LED-lit BLU in LCD

<LED TV and LED-lit lamps

<RDRAM memory modules

<Micro heat pipe thermal solutions


Typical Properties of TIF1100-50-11US
Product Name

TIF1100-50-11US Series
Colour
 gray
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity
2.9 g/cc

Thickness
2.5mmT
Hardness
20 Shore 00
Dielectric constant@1MHz
4.2 MHz
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
5.0 W/mK
Volume Resistiviyt

1.0*1012 Ohm-cm

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Insulation Electrically Isolating Cpu Thermal Pad 4.2 Mhz For Mass Storage Devices


Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

Insulation Electrically Isolating Cpu Thermal Pad 4.2 Mhz For Mass Storage Devices

FAQ

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
