Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet
Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet
Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet
Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet
Specifications
Brand Name :
Ziitek
Model Number :
TIF140-30-06US thermal pad
Certification :
UL
Place of Origin :
China
MOQ :
1000 pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
3-8 work days
Packaging Details :
25*24*13cm canton
hardness :
18 shore00
KEYWORD :
white silicone rubber pads
color :
white
part number :
TIF140-30-06US
material :
silicone
thermal conductive :
3.0W/mK
Description

high cost-effective RoHS compliant Moldability for complex parts silicone thermal pad for LED Controller,1.0mmT,3.0W/mK


Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

TIF100-30-06US.pdf

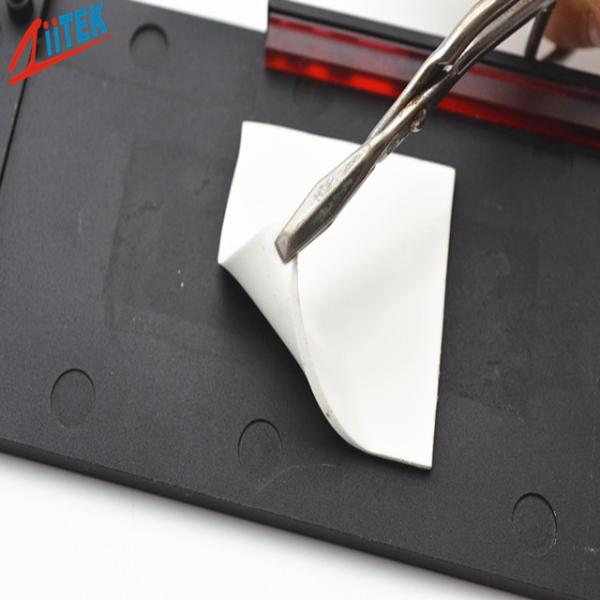

TIF140-30-06US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
<Good thermal conductive:3.0W/mK
<Thickness:1.0mmT
<Hardness:18 Shore 00
<Colour: white

<Naturally tacky needing no further adhesive coating

<Available in varies thicknesses

<Broad range of hardnesses available

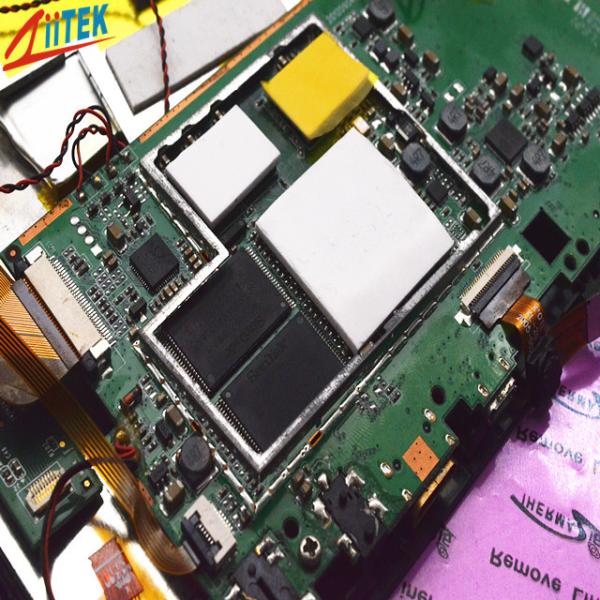

Applications

<CD-Rom, DVD-Rom cooling

<LED Power Supply

<LED Controller

<LED Ceilinglamp

<Monitoring the Power Box

<AD-DC Power Adapters


Typical Properties of TIF140-30-06US
Product Name

TIF140-30-06US Series
Colour
 white
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity
3.0 g/cc

Thickness
1.0mmT
Hardness
18 Shore 00
Dielectric constant@1MHz
4.0 MHz
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
3.0 W/mK
Volume Resistiviyt

1.0*1012 Ohm-cm

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet
Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet

Advantage

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.

Rohs Compliant Cpu Thermal Pad Small Square Or Rectangular Sheet

FAQ

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
