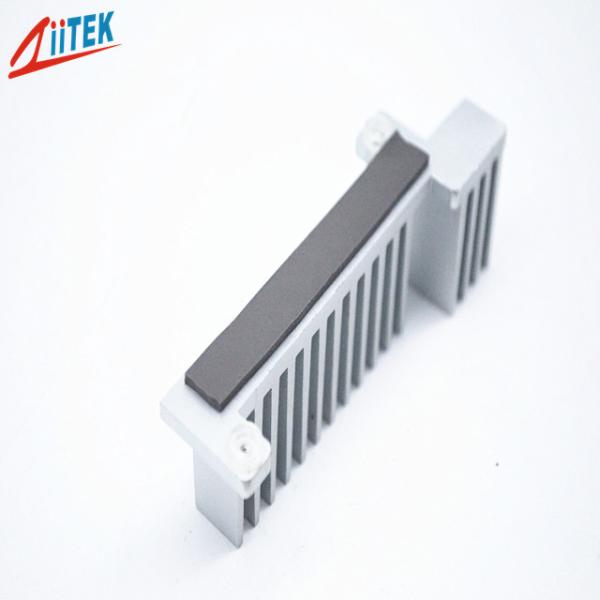

UL Recognized Thermal Conductive Gap Pad 27shore00 For Mass Storage Devices
UL Recognized Thermal Conductive Gap Pad 27shore00 For Mass Storage Devices
UL Recognized Thermal Conductive Gap Pad 27shore00 For Mass Storage Devices
UL Recognized Thermal Conductive Gap Pad 27shore00 For Mass Storage Devices
UL Recognized Thermal Conductive Gap Pad 27shore00 For Mass Storage Devices
UL Recognized Thermal Conductive Gap Pad 27shore00 For Mass Storage Devices
Specifications
Brand Name :
Ziitek
Model Number :
TIF580-30-11U thermal pad
Certification :
UL
Place of Origin :
China
MOQ :
1000 pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
3-8 work days
Packaging Details :
25*24*13cm canton
hardness :
27shore00
KEYWORD :
grey silicone rubber pads
color :
grey
part number :
TIF580-30-11U
material :
silicone
Thickness :
2.0mmT
Description

UL recognized manufactured thermal conductive gap pad 27shore00 for Mass storage devices ,

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

TIF500-30-11U Datasheet-REV02.pdf

The TIF580-30-11U is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
<Broad range of hardnesses available 3.0W/mK
<Thickness:2.0mmT

<Outstanding thermal performance

<Easy release construction

<Fiberglass reinforced for puncture, shear and tear resistance

<Naturally tacky needing no further adhesive coating

Applications

<Mass storage devices

<Automotive electronics

<Telecommunication hardware

<Handheld portable electronics

<LED Controller

<LED Ceilinglamp


Typical Properties of TIF 580-30-11U
Product Name
TIF580-30-11U Series
Colour
Grey
Construction & Compostion
Ceramic filled silicone rubber
Specific Gravity
3.0g/cc
Dielectric Constant@1MHz
4.4 MHz
Hardness
27Shore 00
Flame Rating
94 -V0
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
3.0 W/mK
Thickness
 2.0mmT

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.

Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.

UL Recognized Thermal Conductive Gap Pad 27shore00 For Mass Storage Devices

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

Our services

Online-service : 12 hours , Inquiry reply within fastest.


Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
