Blue Thermal Conductive Gap Filler 1.2W/M-K For Heat Pipe Thermal Solutions
Blue Thermal Conductive Gap Filler 1.2W/M-K For Heat Pipe Thermal Solutions
Blue Thermal Conductive Gap Filler 1.2W/M-K For Heat Pipe Thermal Solutions
Blue Thermal Conductive Gap Filler 1.2W/M-K For Heat Pipe Thermal Solutions
Blue Thermal Conductive Gap Filler 1.2W/M-K For Heat Pipe Thermal Solutions
Blue Thermal Conductive Gap Filler 1.2W/M-K For Heat Pipe Thermal Solutions
Specifications
Brand Name :
Ziitek
Model Number :
TIF160-12-05ES thermal pad
Certification :
UL
Place of Origin :
China
MOQ :
1000 pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
3-8 work days
Packaging Details :
25*24*13cm canton
hardness :
12±5 shore00
KEYWORD :
blue silicone rubber pads
color :
blue
part number :
TIF160-12-05ES
material :
silicone
Thickness :
1.5mmT
Description

China company supplied blue thermal conductive gap filler 1.2W/M-K For Heat pipe thermal solutions

Company Profile

With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

TIF100-12-05ES-Series-Datasheet.pdf

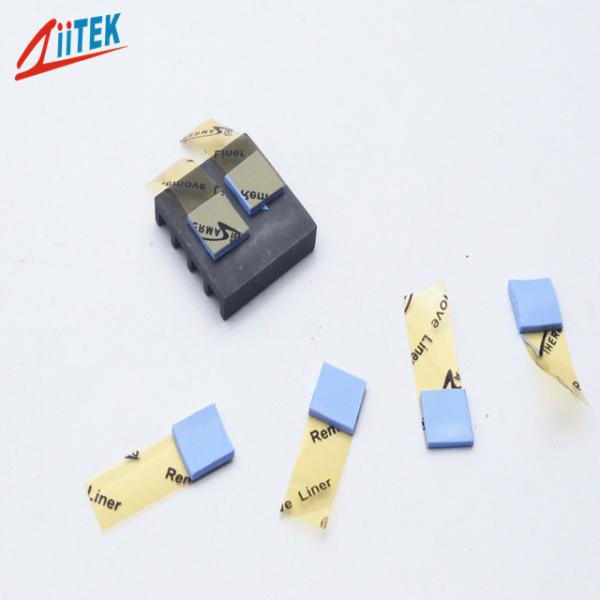

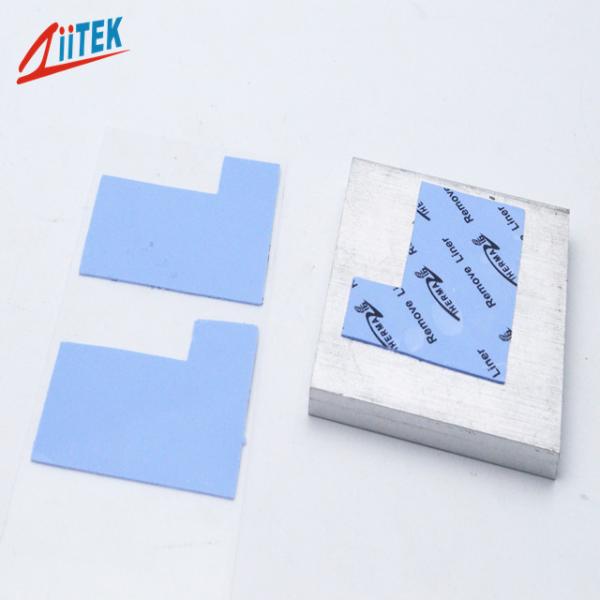

The TIF160-12-05ES is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling
Features
<Good thermal conductive:1.2 W/mK
<Thickness:1.5mmT
<Hardness:12±5 Shore 00

<Moldability for complex parts

<High tack surface reduces contact resistance

<Electrically isolating

Applications

<Heat pipe thermal solutions

<Memory Modules

<Mass storage devices

<LED Controller

<LED Ceilinglamp

<Monitoring the Power Box

<AD-DC Power Adapters


Typical Properties of TIF160-12-05ES
Product Name
TIF160-12-05ES Series
Colour
 Blue
Construction & Compostion
Ceramic filled silicone rubber

Density
2.0 g/cm3

Thickness
1.5mmT
Hardness
12±5 Shore 00
Tensile Strength
40 psi
Continuos Use Temp
-40to 160℃
Dielectric Breakdown Voltage
>5500 VAC
Thermal conductivity
1.2 W/mK

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.

Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness

Blue Thermal Conductive Gap Filler 1.2W/M-K For Heat Pipe Thermal Solutions

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge

Q: What is your terms of payment ?

A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
