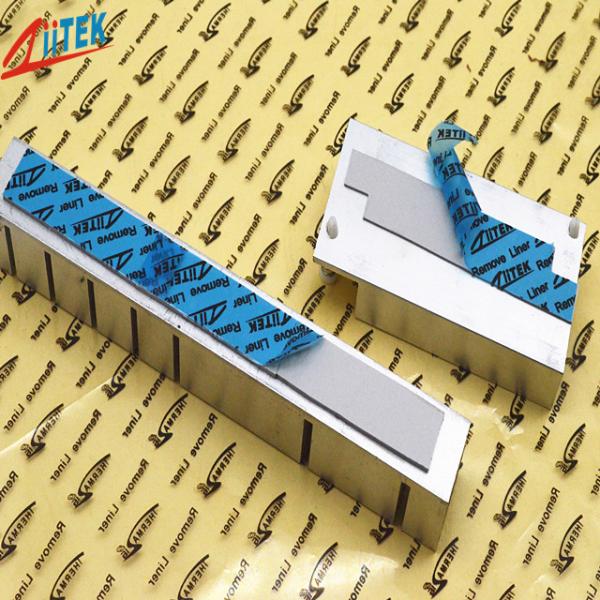

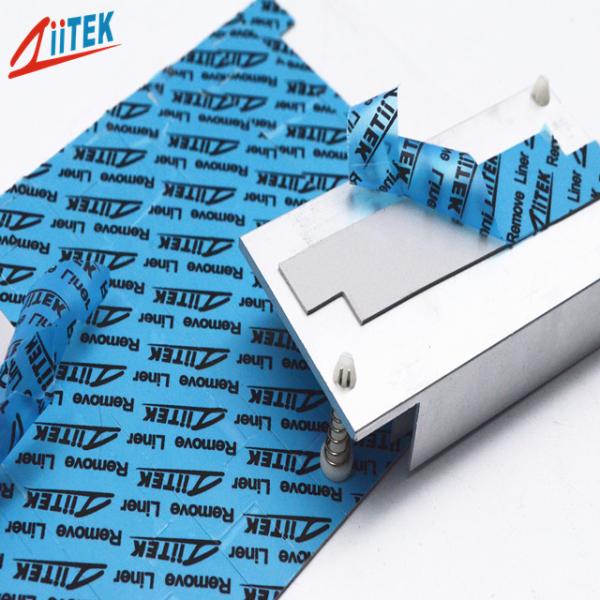

Gray White CPU Thermal Pad For Electronic Device
Gray White CPU Thermal Pad For Electronic Device
Gray White CPU Thermal Pad For Electronic Device
Gray White CPU Thermal Pad For Electronic Device
Specifications
Brand Name :
Ziitek
Model Number :
TIF1100-02S Series
Certification :
UL & RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 pcs/month
Delivery Time :
3-5 work days
Packaging Details :
24*23*12cm cantons
color :
gray white
Dielectric Constant :
5.5 MHz
Thickness :
2.5mmT
Dielectric Breakdown Voltage :
>1000 VAC
Fire rating :
94 V0
Thermal conductivity :
1.5W/m-K
Description

High performance low cost CPU thermal pad TIF1100-02S with gray white color for various electronic device


The TIF1100-02S Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Company Profile

With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.


Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available

> High tack surface reduces contact resistance
> Soft and Compressible for low stress applications
> Outstanding thermal performance

>Moldability for complex parts


Applications
> LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> display card

> Micro heat pipe thermal solutions
> Memory Modules

> routers

> Telecommunication hardware

>GPS navigation and other portable devices

Typical Properties of TIF1100-02S Series
Color
Gray white
Visual
Composite Thickness
Thermal Impedance @10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20
Specific Gravity
2.23 g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness range 0.010"-0.200"
ASTM C351
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
45 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Dielectric Breakdown Voltage

 >1000 VAC
ASTM D412
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Outgassing(TML)
0.30%
ASTM E595
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
5.5 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20

Volume Resistivity
4.0X10"
Ohm-meter
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
1.5W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470

Standard Thicknesses:


0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)


Consult the factory alternate thickness.


Standard Sheets Sizes:


8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.


Reinforcement:


TIF™ series sheets type can add with fiberglass reinforced.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Gray White CPU Thermal Pad For Electronic Device

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

Annual Output Value

US$1 Million - US$2.5 Million

TIF100-02S Datasheet-REV02.pdf
