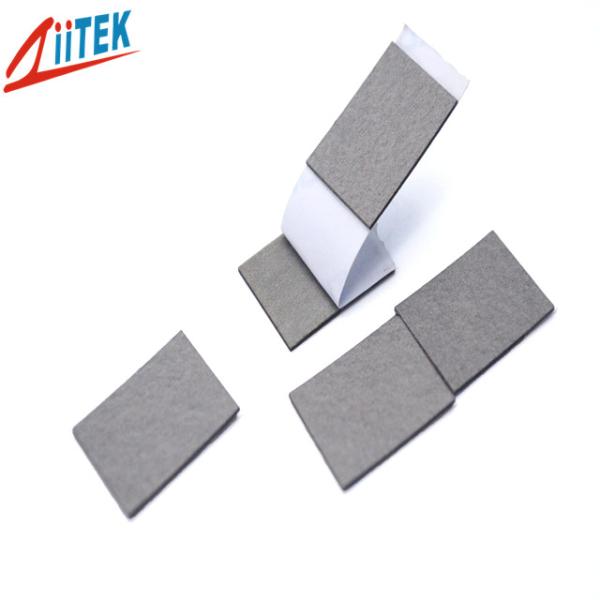

TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials
TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials
TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials
TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials
TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials
TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials
TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials
TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials
Specifications
Brand Name :
Ziitek
Model Number :
TIR9150G
Certification :
RoHS
Place of Origin :
China
MOQ :
1000
Price :
EX Works
Payment Terms :
T/T
Delivery Time :
7-15 work days
Packaging Details :
carton package
Storage conditions :
0-30°C/60%±10R.H
Effective frequency :
100MHz-10GHz
Color :
Gray
Shelf life :
12 months
Thickness :
0.05-0.3mmT
Temperature range :
-40 to +120℃
Standard size :
300mm*50M
Description

China company supplied Gray TIR9150G Series 100MHz-10GHz Thermal Absorbing Materials with Outstanding thermal performance

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

TIR9150G-Series(E).pdf

Applications:
Provide EMC material solutions for EMI & EMS issue for IT devices

1.1 Metal rubber absorber to conduct different microwave resonance frequency
within the property of loss energy
1.2 Noise suppressor for electric devices(Smart phones, Tablets, PCs and etc)
1.3 Receiver sensitivity improvement of PEN input (inductive coupling type)
1.4 Enhancement of NFC&WPC(PMA/WPC) function within electric devices


TIR9150G Series Shielding Absorbing Materials
Classification Unit Values Test Method
Color NA Gray Visual
Specific gravity g/cm3 3 ASTM D297
Effective frequency Hz 100mHz-10GHz ASTM D5470
Temperature range °C -40 to +120 NA
Storage conditions - 0-30°C/60%±10R.H NA
Shelf life month 12 NA
Thickness mm

0.05mmT-0.3mmT
Standard size mm 300*50m

TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials

TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials

TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials

TIR9150G Series Gray 100MHz - 10GHz Heat Absorbing Materials


Q&A

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Do you accept custom orders ?

A: Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
