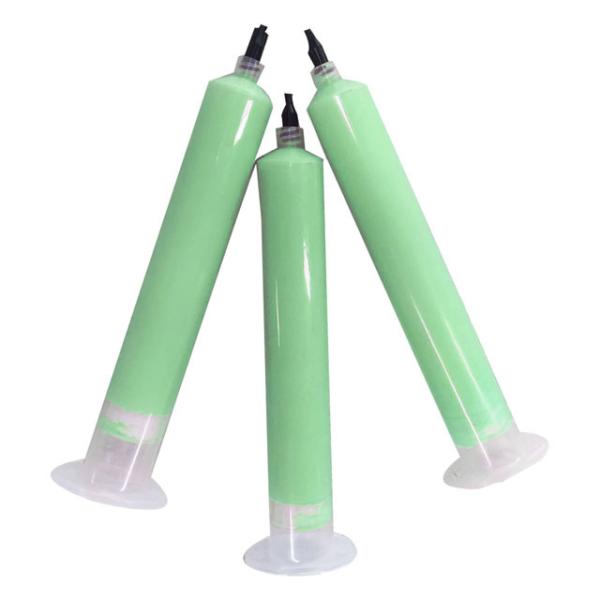

1.5 W/M-K China Thermal Conductive Gel For Electronic And Electrical Products
1.5 W/M-K China Thermal Conductive Gel For Electronic And Electrical Products
1.5 W/M-K China Thermal Conductive Gel For Electronic And Electrical Products
1.5 W/M-K China Thermal Conductive Gel For Electronic And Electrical Products
Specifications
Brand Name :
Ziitek
Model Number :
TIF015-07
Certification :
UL
Place of Origin :
China
MOQ :
1000tube
Price :
0.1-100USD/KG
Payment Terms :
T/T
Supply Ability :
10000KG/MONTH
Delivery Time :
3-8 WORK DAYS
Packaging Details :
300cc/tube
Products Name :
1.5 W/M-K China Thermal Conductive Gel For Electronics Manufacturer
Application :
Heat-sink & frame
Color :
Gray
keywords :
Thermal Conductive Gel
flame rating :
UL 94 V-0
Certifications :
RoHS
Thermal conductivity :
1.5W/m-K
SPecific Gravity :
2.5g/cm³
Description

1.5 W/M-K China Thermal Conductive Gel For Electronic And Electrical Products

TIFTM015-07 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility. Due to TIFTM015-07 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.

TIFTM015-07 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility. TIF015-07 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component .


TIF015-07 Series Datasheet-REV02.pdf

1.5 W/M-K China Thermal Conductive Gel For Electronic And Electrical Products
Feature
> Thermal conductivity:1.5W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
> Proven long-term reliability

Application
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions

TIFTM015-07 Property
Color Green Visual
Construction & Composition Ceramic filled silicon material **********
Viscosity 4000 Pa.s GB/T 10247
Specific Gravity 2.5g/cm³ ASTM D297
Thermal conductivity 1.5W/mK ISO 22007-2
Thermal diffusivity 0.847mm2/s ISO 22007-2
Specific heat capacity 2.2 MJ/m3K ISO 22007-2
Continuous Use Temperature -45 ~200°C ******
Dielectric breakdown strength 200 V/mil ASTM D149
Flame Rating V-0 UL94
Packing details

30 cc/pc, 98 pc/box; 300 cc/pc； 6 pc/box
We offer the custom packaged in syringes for automated despensing applications.
Please contact us for confirming.

Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

1.5 W/M-K China Thermal Conductive Gel For Electronic And Electrical Products

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
