White Heat Conductive Plastic 1.8W Lighter Than Normal Aluminum Housing For LED Light Housing
White Heat Conductive Plastic 1.8W Lighter Than Normal Aluminum Housing For LED Light Housing
White Heat Conductive Plastic 1.8W Lighter Than Normal Aluminum Housing For LED Light Housing
White Heat Conductive Plastic 1.8W Lighter Than Normal Aluminum Housing For LED Light Housing
Specifications
Brand Name :
Ziitek
Model Number :
TCP200-18-06A
Certification :
RoHS
Place of Origin :
China
MOQ :
10kg
Price :
USD 0.1-10/kg
Payment Terms :
T/T
Supply Ability :
1000000pcs/month
Delivery Time :
3-5 work days
Packaging Details :
25kg/bag
Products Name :
Lighter Than Normal Aluminum Housing White Heat Conductive Plastic 1.8W For LED Light Housing
Keyword :
Heat Conductive Plastic
Application :
LED Light Housing
Feature :
Lighter Than Normal Aluminum Housing
Specific Gravity :
1.45 g/cm3
Heat Deflection Temperature :
180℃
Thermal conductivity :
1.8W/m-K
Description

Lighter Than Normal Aluminum Housing White Heat Conductive Plastic 1.8W For LED Light Housing

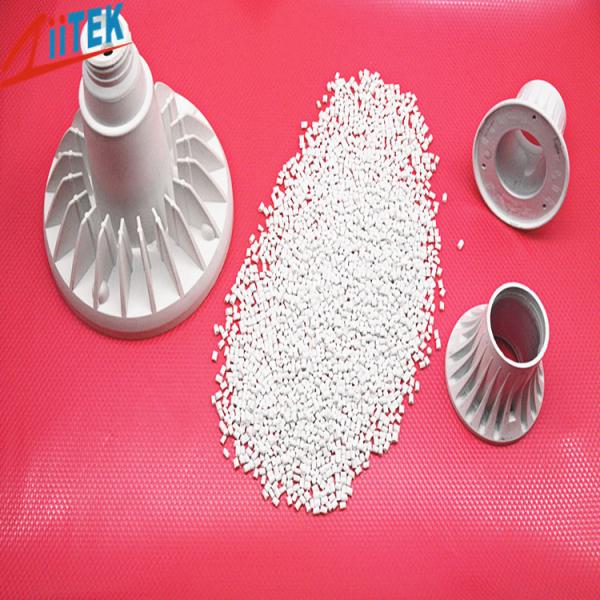

TCPTM200-18-06A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

TCP200-18-06A-Thermally-Conductive-plastic.pdf

White Heat Conductive Plastic 1.8W Lighter Than Normal Aluminum Housing For LED Light Housing

Application


TCP™200-18-06A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.

Features


> Good thermal conductivity: 1.8W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.

Typical Properties of TCPTM200-18-06A
Items Test method Unit Typical data
Physical Properties
Color Visual ***** White
Melt index ISO 1133 g/10min 150
Specific Gravity ISO 1183 g/cm3 1.45
Shrinkage ISO 294 % 0.3~0.5
Mechanical Properties
Tensile Strength ISO 527 MPa 55
Flexural Strength ISO 178 MPa 70
Flexural Modulus ISO 178 MPa 9000
Impact Strength, notched ISO 180 kJ/m² 4.5
Electrical Properties
Dielectric Breakdown Voltage ASTM D149 KV/mm >5.5
Dielectric Constant, 1MHz ASTM D150 ***** 4.5
Volume Resistivity ASTM D257 Ohm-meter 8.0 X 10¹²
Thermal Properties
Heat Deflection Temperature ASTM D648 ℃ 180
Thermal Conductivity In Plane ASTM D648 ℃ 170
Thermal Conductivity Throngh Plane ASTM E5470 W/m-K 1.8
Flame retardancy Min. thick. 1.0mm Class V-0

White Heat Conductive Plastic 1.8W Lighter Than Normal Aluminum Housing For LED Light Housing
