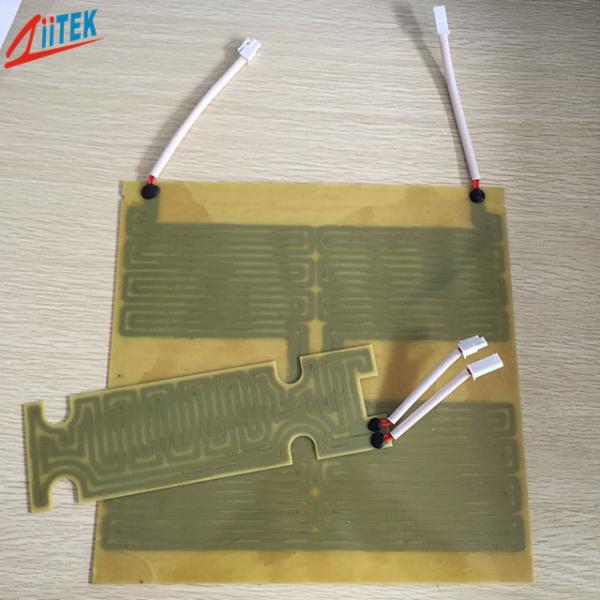

Kheat ES-Epoxy Heating Plate Film Heating Element For Cummunication Security Industry
Kheat ES-Epoxy Heating Plate Film Heating Element For Cummunication Security Industry
Kheat ES-Epoxy Heating Plate Film Heating Element For Cummunication Security Industry
Kheat ES-Epoxy Heating Plate Film Heating Element For Cummunication Security Industry
Specifications
Brand Name :
Ziitek
Model Number :
KheatTM ES-Epoxy heating plate
Certification :
UL & RoHS
Place of Origin :
China
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 pcs/month
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
Kheat ES-Epoxy Heating Plate For Cummunication Security Industry
Features :
Can be customized according to shape, size , power and voltage
Operating Voltage :
3.7V~380V AC/DC
Application :
Power industry,military aerospace
Recommended Power Density :
0.1~0.6W/c㎡
Keywords :
Epoxy heating plate
Service life :
8~15years
Thickness :
0.6~2.5mmT( customizable)
Description

Kheat ES-Epoxy Heating Plate For Cummunication Security Industry

Kheat ES-Epoxy heating plate is a heating material developedand produce independently by Ziitek company.The epoxy heating plate plays characteristics of FR-4, with excellent weather and aging resistance. As a insulation material on heatingplate, it can enhance the mechanical strength and effectivelyprevent surface craking, greatly extend the service life of theproducts. The epoxy plate can be customized according thedesign requirements.

Features

>Thickness of resistor: 0.03-0.1mmT, Thickness of epoxy sheet :0.6-2.5mmT

>Easy installed with the excellent phisical strength of the epoxy sheet

>The product is made of two epoxy plates and resistor laminated by high temperature, so it can be made to various shape, holes can be also reserved for easier installation.
>Can be customized according to shape,size, power and voltage.
>Epoxy heating plate has good chemical corrosion resistance and can be used in humid, corrosive gases and other terrible enviroments
>Can be easily integrated with thin insulation materials, provide light weight electric heating elements with insulation layer.
>Can do adhesive on one side for convenient installation

>RoHS,CE,UL compliant

Kheat ES-Epoxy Heating Plate Film Heating Element For Cummunication Security Industry

Applications

>New energy industry(battery)

>Communication security industry

>Video camera, hard disk video recorder

>Power industry, military aerospace
>All kinds of electronic products need to be heated
>Medical equipment, precision instrumentsand equipment

Physical and electrical properties of Kheat ES epoxy board
Operating Voltage 3.7V~380V AC/DC
Diclectric Breakdown Voltage ≥2500VAC/MIN
Insulation Resistance ≥ 100MΩ
Recommended Power Density 0.1~0.6W/c㎡
Max Power Density 2.0W/c㎡
Service life 8~15years
Continuous Use Temp 200℃(it depends on temperature stability of the adhesive if customer needs adhesive.)
Continuous Use Temp -50~200℃
Thickness 0.6~2.5mmT( customizable)
Mechanical Compression strength 100KG/c㎡
Pull Force of Guide Line ≥80N
Pull Force of Soldering Point ≥20N

Company profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
