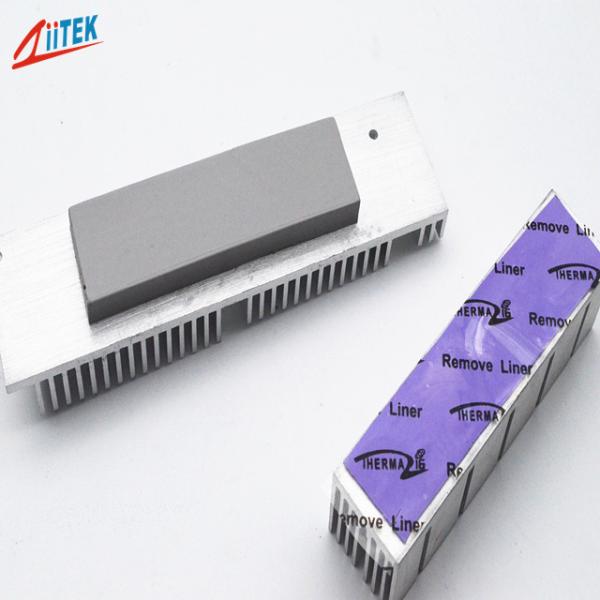

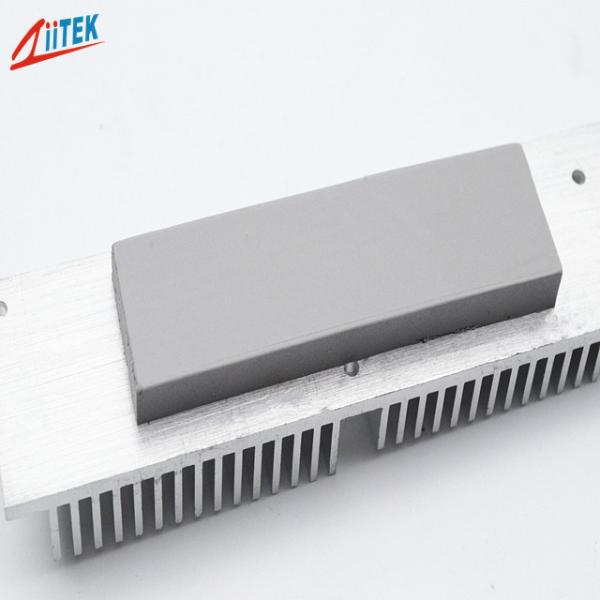

Electrically Insulated 8.0W Thermal Pad Thermally Conductive Silicon Pad Thermal Management Material
Electrically Insulated 8.0W Thermal Pad Thermally Conductive Silicon Pad Thermal Management Material
Electrically Insulated 8.0W Thermal Pad Thermally Conductive Silicon Pad Thermal Management Material
Electrically Insulated 8.0W Thermal Pad Thermally Conductive Silicon Pad Thermal Management Material
Specifications
Brand Name :
Ziitek
Model Number :
TIF7200Q
Certification :
RoHS and UL recognized
Place of Origin :
China
MOQ :
1000pcs
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
1000000 pcs/month
Delivery Time :
3-5 work days
Packaging Details :
24*13*12cm cartons
Products name :
Electrically Insulated 8.0W Thermal Pad Thermally Conductive Silicon Pad Thermal Management Material
Color :
Gray
Keywords :
Thermal Pad
Hardness :
60 Shore 00
Sample :
Sample Avaliable
Thermal Conductivity :
8.0 W/mK
Flam rating :
94 V0
Thinkness range :
0.200"（5.0mm）
Description

Electrically Insulated 8.0W Thermal Pad Thermally Conductive Silicon Pad Thermal Management Material

Company Profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

TIF7200Q Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmitto the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

Electrically Insulated 8.0W Thermal Pad Thermally Conductive Silicon Pad Thermal Management Material

Features

> Good thermal conductive : 8.0W/mK
> RoHS compliant
> UL recognized
> Soft and Compressible for low stressapplications
> Broad range of hardnesses available
> High tack surface reduces contact resistance

> Electrically isolating
> High durability

Applications


> Set top boxes
> Audio and video components
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics

> Available in varies thicknesses

Typical Properties of TIF7200Q Series
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer *******
Specific Gravity 3.55 g/cc ASTM D297
Thickness range 0.200"(5.0mm) ASTM C351
Hardness 60±10 Shore 00 ASTM 2240
Dielectric Breakdown Voltage >5500 VAC ASTM D412
Operating Temp -45 ~200℃ *******
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 5.2X10¹³Ohm-meter ASTM D257
Fire rating 94 V0 equivalent UL
Thermal conductivity 8.0W/mK ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

Individual die cut shapes and custom thickness can be supplied.

Electrically Insulated 8.0W Thermal Pad Thermally Conductive Silicon Pad Thermal Management Material

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Q&A

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.
