Specifications
Brand Name :
CNAMPFORT
Model Number :
FS-600
Certification :
ROHS,REACH
Place of Origin :
Dongguan,China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10KKPCS PER MONTH
Delivery Time :
7 Workdays
Packaging Details :
Bulk
Commodity Name :
3AG Fuse Holder
Suitable Fuse :
3AB 1/4 Inch Diameter Fuses
Max current :
15A
Rating Voltage :
250 VAC/VDC
Contacts :
Nickel Plated Brass, T=0. 5mm
Current Level :
15A max
Plating :
Nickel-plated
Mounting Type :
Panel Mount
Description

Press-In Mount AGC MDL 3AB 3AG Fuse Holder Block Clip FS-600 15A 250V For 6.35mm Cylindrical Cartridge Fuse

Ampfort Fuseholders and Clips - 6.3x32mm

Ampfort fuseholders and clips offer a comprehensive solution to a variety of application requirements.

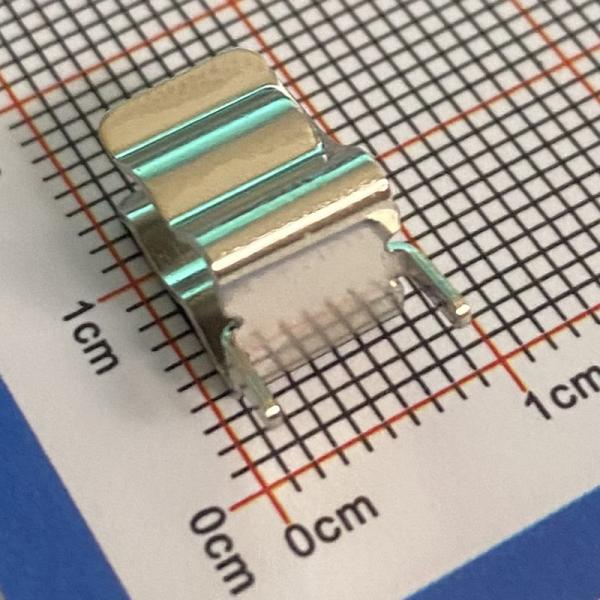

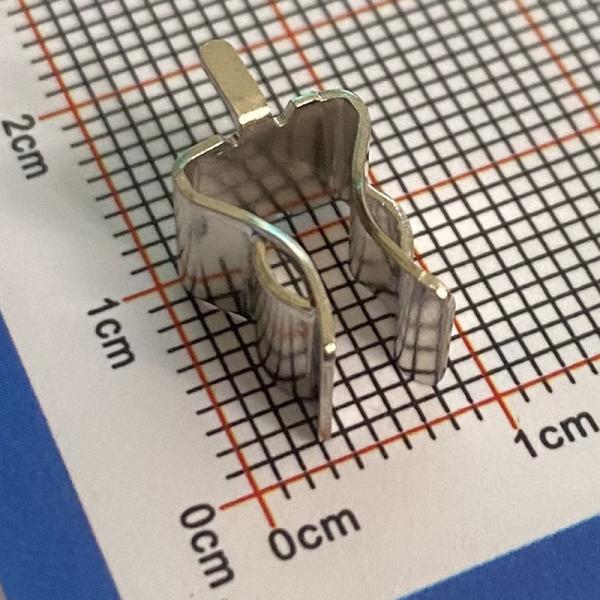

These are metal fuse clips for AGC/MDL/3AG (6x30mm / 1.25") Style fuses. They are intended to be used as fuse holders in PC Board mounting applications (through hole). Each fuse clip has 2 solder tabs and will hold a 3AG type fuse when used in pairs. Features:

Nominal current: 15A

Nominal voltage: 250V AC

RoHS compliant: yes

Specification: FS-600(PCB side connection)

Suitable for fuses: 6.35 x32 mm

Connection Type: Solder Leads for PC Board Mounting

1.Size

2.Electrical Characteristics

material Contacts--brass, T=0. 5mm
Terminal finish Nickel plated
Removed burrs and sharp edge
For 6.35x32mm cartridge or equivalent
Rated voltage 250V
Suitable rated current 15A
Fully insulated clips to protect fuses against shorting
Withstands shock and vibration
Packing 1000PCS/bag
