Specifications
Brand Name :
CNAMPFORT
Model Number :
RMS
Certification :
UL,cUL,CE
Place of Origin :
Dongguan,China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10kkpcs per month
Delivery Time :
2 weeks
Packaging Details :
Bulk
Name :
AUTO BLADE FUSE
Ampere Range :
1A ~ 60A
Approvals :
UL,cUL,CE
Rated Voltage :
80VDC 100VDC 120VDC 125VDC
Size :
ATC,ATU,ATO,FKS
Interrupting Rating :
1000A @ 80 VDC
Fuse-element and terminal :
Silver-copper alloy
Insulating Body :
Polybutylene terephthalate
Complies with :
UL248/ISO8820 Supplemental Fuses
Width :
19mm
Description

RMS Series FKS ATO ATC STYLE CAR AUTOMOTIVE AUTO BLADE FUSE RATED 80V 1A 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A

Ampfort RMS is an ATO style blade fuse rated at 80V, featuring athree part construction with copper contacts for excellent reliabilityin harsh environment conditions and low voltage drop. Currentratings 1A thru 60A. Filled with arc-quenching material.UL CE Approved.

Applicable file:Complies with: UL248/ISO8820

Operating Temperature: -40℃ to +125℃

Flammability rating:94-V0

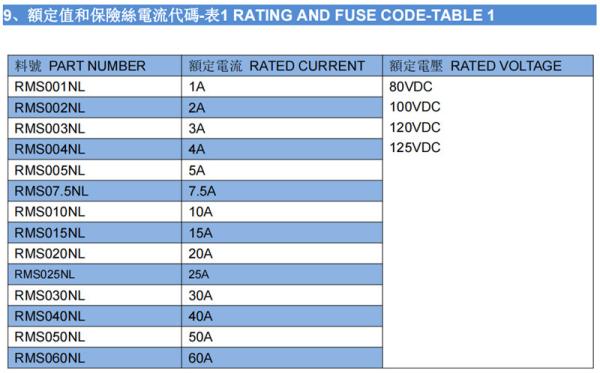

AMPERE: RATING AND FUSE CODE-TABLE 1

RMS Fuses used to protect electrical wiring and equipment in motor vehicles,boats and trailers,power supply etc. This standard is for the construction shown and is not intended to restrict the design and use of other configurations and materials capable of meeting the vehicle requirements.

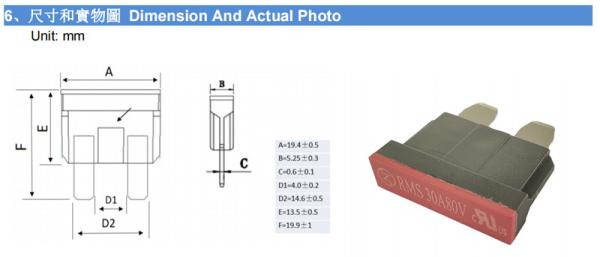

Size (unit:mm)

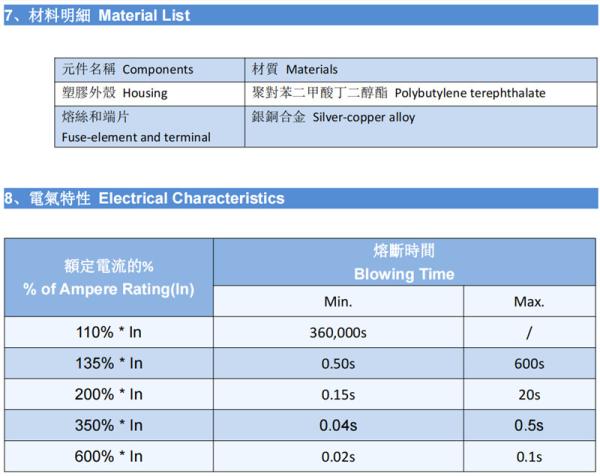

Components Materials
Housing Polybutylene terephthalate
Fuse-element and terminal Silver-copper alloy

Electrical Characteristics

% of Ampere Rating(In)

Blowing Time
Min. Max.
110% * In 360,000s /
135% * In 0.50s 600s
200% * In 0.15s 20s
350% * In 0.04s 0.5s
600% * In 0.02s 0.1s

Ordering info

PART NUMBER RATED CURRENT RATED VOLTAGE
RMS001NL 1A

80VDC

100VDC

120VDC

125VDC
RMS002NL 2A
RMS003NL 3A
RMS004NL 4A
RMS005NL 5A
RMS07.5NL 7.5A
RMS010NL 10A
RMS015NL 15A
RMS020NL 20A
RMS025NL 25A
RMS030NL 30A
RMS040NL 40A
RMS050NL 50A
RMS060NL 60A

Equal to 166.7000.430 166.7000.440 166.7000.450 166.7000.475 166.7000.510 166.7000.515 166.7000.520 166.7000.525 166.7000.530.

Marking: Each fuse inserting piece shall be marked with:

(1)Rated Current ;

(2)Rated Voltage ;

(3)Company Logo ;

Storage condition:Temperature 25, humidity 35%-65%;

Typical packaging MPQ: 200/500PCS

One carton 20*500=10000PCS, box specifications: 44×28×20cm;
