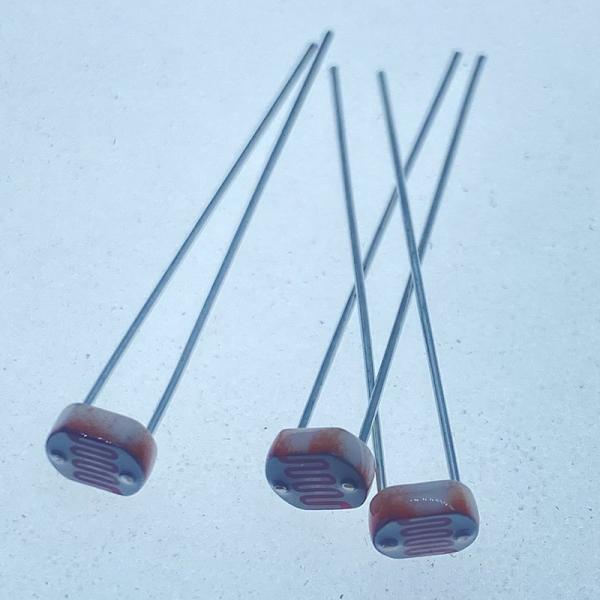

Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549
Specifications
Brand Name :
CNAMPFORT
Model Number :
GL5539
Certification :
Standard
Place of Origin :
Dongguan,China
MOQ :
10000
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100KKPCS PER MONTH
Delivery Time :
7 Workdays
Packaging Details :
Bulk,2000 per box
Name :
Visible Light Sensor Photoresistor GL5539
Maximum Voltage :
150VDC
Specification :
5mm dia series
Maximum power :
100mW
Environmetal Temp. :
-30~+70℃
Spectrum peak value :
540nm
Description

Visible Light Sensor Photoresistor GL5539 LDR Light Dependent Resistor Photocell CdS Photoconductive Cell 5516 5528 5549

A photoresistor is a resistance made of a semiconductor material whose conductivity changes with the change of illuminance. This feature is used to make photoresistors of different shapes and light-receiving areas. Photoresistors are widely used in toys, lamps, cameras and other industries.

Epoxy encapsulation

Good reliability

Small size

High sensitivity

Fast response

Good spectral characteristics

The application including automatic machine, alarm system, light switch, toys.

Specification Type Maximum Voltage VDC Maximum power MW

Environmetal

Temp.

 Spectrumpeak value nm Light resistance(10Lux)(KΩ) Dark resistance(MΩ) Response time(ms)
Increase Decrease
φ5series GL5516 150 90 -30~+70℃ 540 5- 10 0.5 30 30
GL5528 150 100 -30~+70℃ 540 10- 20 1 20 30
GL5537-1 150 100 -30~+70℃ 540 20- 30 2 20 30
GL5537-2 150 100 -30~+70℃ 540 30- 50 3 20 30
GL5539 150 100 -30~+70℃ 540 50- 100 5 20 30
GL5549 150 100 -30~+70℃ 540 100-200 10 20 30
GL5606 150 100 -30~+70℃ 560 4-7 0.5 30 30
GL5616 150 100 -30~+70℃ 560 5-10 0.8 30 30
GL5626 150 100 -30~+70℃ 560 10-20 2 20 30
GL5637-1 150 100 -30~+70℃ 560 20-30 3 20 30
GL5637-2 150 100 -30~+70℃ 560 30-50 4 20 30
GL5639 150 100 -30~+70℃ 560 50-100 8 20 30
GL5649 150 100 -30~+70℃ 560 100-200 15 20 30

Visible Light Sensor

PROD Model:φ5

Maximum Applied Voltage: the maximum voltage that can be continuously applied to a component in the dark

Dark Resistance: resistance value at 10 seconds after 10Lux illumination is turned off

Maximum Power Consumption: maximum power consumption when the ambient temperature is 25 ° C

Bright Resistance: after 2 hours of exposure with 400-600Lux light, the test value under 10Lux light of standard light source (color temperature 2856K)

γ Value: logarithm of the ratio of the standard resistance value at 10Lux illuminance to 100Lux illuminance

γ= Lg(R10/R100) /Lg (100/10) =Lg(R10/R100)
