Three-Terminal Fuse As Surface Mount Battery Protectors 60A 80V 9550 For Overcurrent And Overvoltage Protection

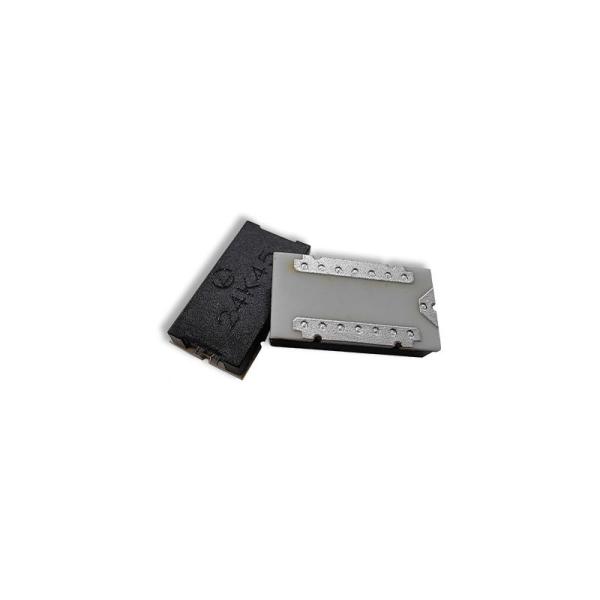

SCP60A is a three-terminal surface mountable li-ion battery protector designed to guard against the damage caused by both overcurrent and overcharging. A fuse element is embedded to cut off the circuit when overcurrent issue happens. A heater is also directly embedded under the fuse element, it will generate heat to blow the fuse once overvoltage detected by IC or FET.

Layer: cover, alloy, electrode, insulator, fever layer, insulator, baseplate

Halogen free, SMD Electronic devices, High structural intensity, Over current protection, Over charge protection, Over heating protection, Compatible with reflow soldering processes.

• Surface mount, 3 terminal fuse

• Provides overcurrent andovercharging protection

• Integrated thermal element providestriggerable operation

• Ideal for battery powered electronics

• A unique fusible device provides fastacting performance

• Moisture sensitivity level (MSL): 1

• Cost efficient secondary battery pack protection

• High reliability protection solution

• Easy integration for most battery packs up to 80V

• Protection for both overcurrent and overvoltage

• Low internal resistance

• Surface mount footprint

• Notebook and laptop computing

• Handheld electric power tools

• Battery powered household appliances

• Battery powered power tools

• Battery powered vacuum cleaners and robots

• eBikes, eRollers

• AGVs

• Used as a protector in Li-ion battery pack

• Vacuum cleaner

• Power tools

• E-scooter

• E-bike

• UPS

Typical

1: Handheld/portable equipment

2: Mobile device charges

3: Automotive

4: Central body control module

5: Heating ventilation and air conditioning

6: Doors,window lift and seat control

7: Digital instrument cluster

8: In-vehicle infotainment and navigation

9: Electric pumps,motor control and

10: Powertrain control module(PCU)/Engine

11: Transimission Control Unit(TCU)

Note: Rated voltage is the maximum voltage that the fuse can block, not the action voltage of the heater assembly.

Advantage Of Three Terminal Fuses:

1:High current carrying capacity, rated current >10A, excellent performance in high current environment.

2:Stable operation performance, complete disconnection;

3:The electrode adopts ceramic circuit board technology, and the welding is reliable.

4:Small size, suitable for high-density installation;Fast reaction speed and high sensitivity;Three layers of electricity.

5:(silver, nickel, tin) easy to weld glass uranium outer protection, reliable structure, work stable;

6:Tape packing, suitable for automatic mounting.
