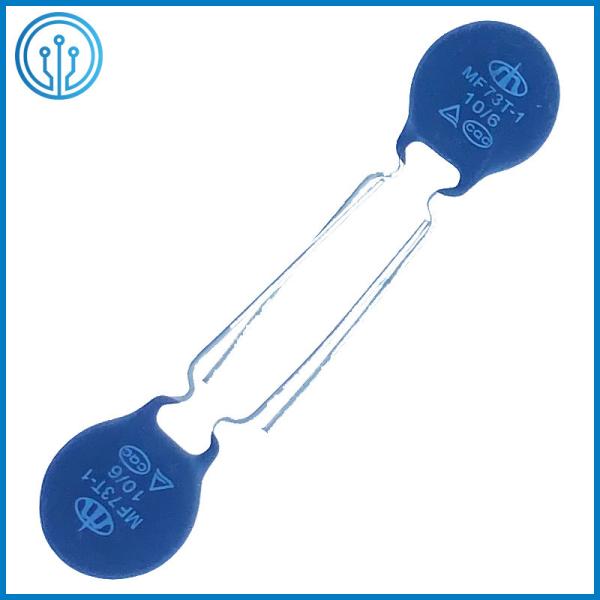

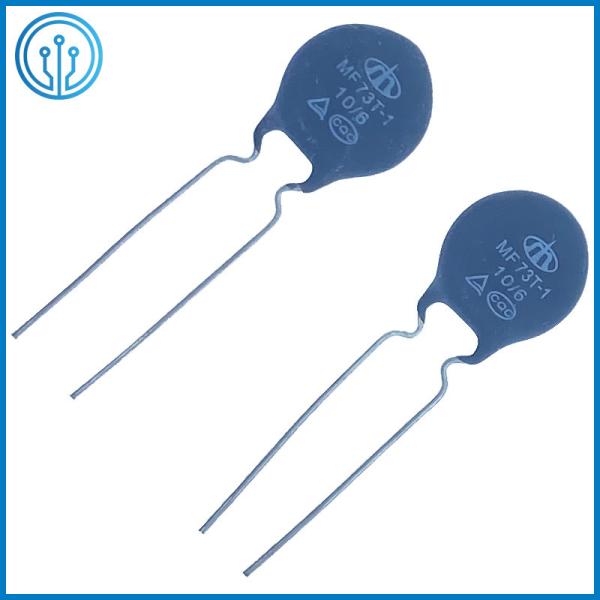

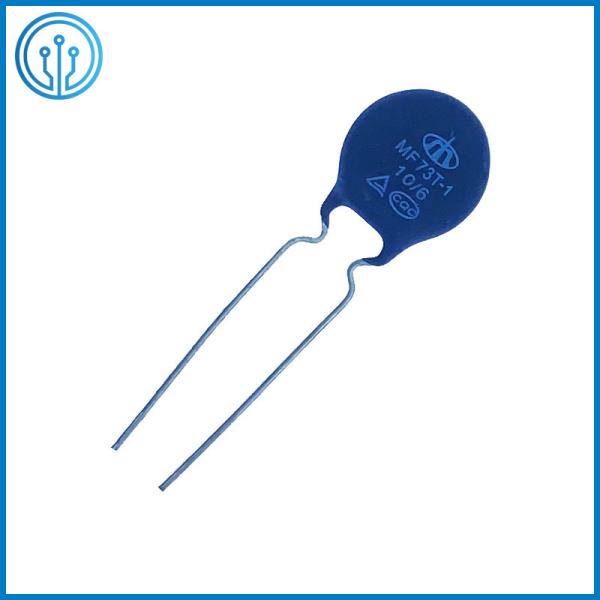

Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6
Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6
Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6
Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6
Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6
Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6
Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6
Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6
Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6
Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6
Specifications
Brand Name :
AMPFORT
Model Number :
MF73T-1 10/6
Certification :
TUV,CQC
Place of Origin :
Dongguan,Guangdong,China
MOQ :
1200NOS
Price :
0.15~0.2 USD/PC
Payment Terms :
T/T, Western Union
Supply Ability :
10KKPCS Per month
Delivery Time :
2 Weeks
Packaging Details :
Bulk
Name :
Inrush Current Limiter
Type :
Big current Thermal Resistor
Other name :
NTC Thermistor
Resistance @ 25°C :
10.0 Ω ± 20%
Max Steady State Current :
6.0 A
Max Recommended Capacitance :
470μF@240Vac
Max Power :
3W
B25/50 :
3000±10%
Resistance @ 100% of Max Current :
0.126 Ω
CQC :
CQC10001053047
TUV :
R50245892
Description

Inrush Current Limiter ICL 10 Ohms ±20% 6 A NTC Thermistor Thermal Resistor MF73T-1 10/6

Dimension Of The Thermal Resistor MF73T-1 10/6

Inrush Current Limiter ICL 10Ohms ±20% 6A NTC Thermistor Thermal Resistor MF73T-1 10/6

D L1 L2 F T d Coating Lead material
Max15.5 Min17 5±2 7.5±1.5 Max6.0 0.8±0.05 black silicone Tinned copper wire

Specification Of The Thermal Resistor MF73T-1 10/6

P/N MF73T-1 10/6
Resistance @ 25°C 10.0 Ω ± 20%
Max Steady State Current 6A
Resistance @ 100% of Max Current

0.126 Ω
Thermal Time Constant 65 sec
Dissipation Constant 13mW/°C
Max rated power 3.0W
Max Recommended Capacitance @ 240VAC 470µF
Operating Temperature Range -40 ~ 200℃
B value B25/50 3000±10%

Body diameter Φ13mm Of The Thermal Resistor MF73T-1 10/6

P/N

R25

±20%(Ω)

Thermal

sensitive

index B±10%(K)

Max

steady

state current Imax(A)

Approx

R of Max current Rmax(Ω)

Max

power dissipation Pmax(W)

Max

impulse

capacitance (uF)

240VAC
MF73T-1 1/9 1 2600 9 0.032 4.0 680
MF73T-1 1.3/9 1.3 2600 9 0.032 680
MF73T-1 1.5/9 1.5 2600 9 0.042 680
MF73T-1 1/9 1 2600 9 0.043 680
MF73T-1 2.5/8 2.5 2600 8 0.048 680
MF73T-1 3/8 3 2600 8 0.052 680
MF73T-1 4/7 4 2800 7 0.068 560
MF73T-1 5/7 5 2800 7 0.078 560
MF73T-1 6/6 6 2800 6 0.090 560
MF73T-1 7/6 7 3000 6 0.098 560
MF73T-1 8/6 8 3000 6 0.104 560
MF73T-1 10/6 10 3000 6 0.126 560
MF73T-1 12/5 12 3200 5 0.146 560
MF73T-1 15/4 15 3200 4 0.155 560
MF73T-1 16/4 16 3200 4 0.158 560
MF73T-1 20/4 20 3200 4 0.192 560
MF73T-1 30/3.5 30 3200 3.5 0.237 560
MF73T-1 47/3 47 3200 3 0.340 560
MF73T-1 60/2.5 60 3200 2.5 0.420 560
MF73T-1 80/2.5 80 3200 2.5 0.820 560
MF73T-1 120/1.8 120 3400 1.8 0.994 560

Storage conditions Of The Thermal Resistor MF73T-1 10/6

1 Storage temperature: -10℃～+40℃;
2 Storage humidity: ≤75% RH;
3 Avoid storing in environments with corrosive gases and direct sunlight;
4 After the package is opened, it needs to be resealed and stored;
5 Shelf life: 1 year

6.Welding and use conditions
6.1 When soldering with a soldering iron, the welding point should be at least 6mm away from the root of the resistor body, the soldering temperature should be lower than 360℃, and the soldering time should be as short as possible.
6.2 When cutting the product leads to the required length, pay attention to the minimum length ≥ 6 mm
