Specifications
Brand Name :
AMPFORT
Model Number :
CWFB0104FC-311H1C
Certification :
RoHS
Place of Origin :
Dongguan,Guangdong,China
MOQ :
1200 Pieces
Price :
Contact our sales
Payment Terms :
Western Union, T/T,Paypal
Supply Ability :
10,000,000 Pieces Per Month
Delivery Time :
14 Days
Packaging Details :
Bulk
Product Name :
Thermistor Temperature Sensors 100K With Thermal Fuse
Housing :
1060 Aluminium 0.5mm Y-007I
NTC Thermistor :
R25=100KΩ±1% B25/50=3950±1%
Thermal Cutoff Fuse :
SM182A0 187℃ NEC
Cable :
UL 1332# 24AWG 200℃ 300V
Terminal :
XH-2.54 & XH-2Y
Description

Rice Cooker Aluminium Housing Thermistor Temperature Sensors 100K With Thermal Fuse

Description Of The Rice Cooker Aluminium Housing Thermistor Temperature Sensors

Rice cooks at boiling temperature (100° celsius or 212 F). Usually, automated rice cookers will sense via thermistor temperature snesor (thermal cutoff fuse built-in) when the water starts boiling and stop the cooking process.

Aluminium 1060 0.5MM NTC 100k Thermistor CWF NTC Negative Temperature Coefficient

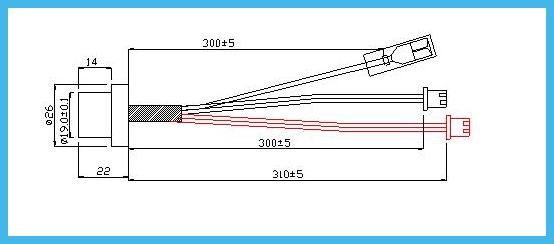

Dimension Of The Rice Cooker Aluminium Housing Thermistor Temperature Sensors(unit:mm)

Aluminium 1060 0.5MM NTC 100k Thermistor CWF NTC Negative Temperature Coefficient

NO COMPONENT MATERIAL AND SPECIFICATIONS Q'TY REMARK
2-1. Element R25=100KΩ±1% B25/50=3950±1% DD 1
SM182A0 187℃ NEC 1
2-2. Housing 1060 Aluminium 0.5mm Y-007I 1
Material: Dupont PA66 1 Black
2-3. Coating Thermal conductive silicone   White
2-4. Lead Wire UL 1332# 24AWG 200℃ 300V (Red/White), UL 3122# Braided wire 20AWG(28*Φ0.15) Green / yellow 3
2-5. Casing PTFE Casing (Transparent) L=70mm, Heat shrinkable tube (Black) Φ5.5 L=20mm, ø2.4 L=75mm 7
2-6. Terminal XH-2.54 & XH-2Y (Red/White), 187-T0.5 Terminal + transparent sheath, Mounting holes phi 2.6 * 10 ring terminal, (rivet) 3

Performance Data Of The Rice Cooker Aluminium Housing Thermistor Temperature Sensors

NO Item Sign Test Conditions Min. Normal value Max. Unit
4-1. Resistance at 25℃ R25

Ta=25±0.05℃

PT≦0.1mw

99.0 100.0 101.0
4-2. B Value B25/50 3871 3950 4029 k
4-3. Dissipation factor σ Ta=25±0.5℃ 3 / / mw/℃
4-4. Time constant τ Ta=25±0.5℃ / / 8 sec
4-5. Insulation resistance / 500VDC 100 / /
4-6. Withstand voltage / 1800V AC 5 / / Sec
4-7. Operating temp.range / / -30 / +150

About Us - Ampfort - Thermistor Temperature Sensor Manufacturer

Aluminium 1060 0.5MM NTC 100k Thermistor CWF NTC Negative Temperature Coefficient

Different Thermistor Temperature Sensor

Aluminium 1060 0.5MM NTC 100k Thermistor CWF NTC Negative Temperature Coefficient

Parts of a Rice Cooker and Their Functions


Understanding its key components will help you use a rice cooker easily. While there are different types of rice cookers out there, most of them have six main parts:

1. Main Body. This is the exterior pot that houses the inner cooking pan, heating plate, as well as the main circuitry found under the base. It’s usually made of stainless steel or plastic.
2. Inner Pot. The inner cooking pot is where all the cooking happens. Once it’s turned on, the plate will start to heat and boil the water in the pot. This is usually made of non-stick material, either stainless steel or ceramic.
3. Heating Plate. Depending on the variety of cooker, the heating element will either direct heat to the bottom of the pan or heat the entire pot (IH).
4. Thermal Sensor. This is the mechanism that detects whether the temperature has reached boiling temperature and signals the device to stop cooking.
5. Indicator lights. Found in standard rice cookers, these lights let you know if the device is in cook mode or resting in warm mode.
6. Navigation buttons. For more advanced devices, you’ll find a display menu for selecting different settings such as delay timer. In multi-cookers, this is where you can select various cooking programs.
