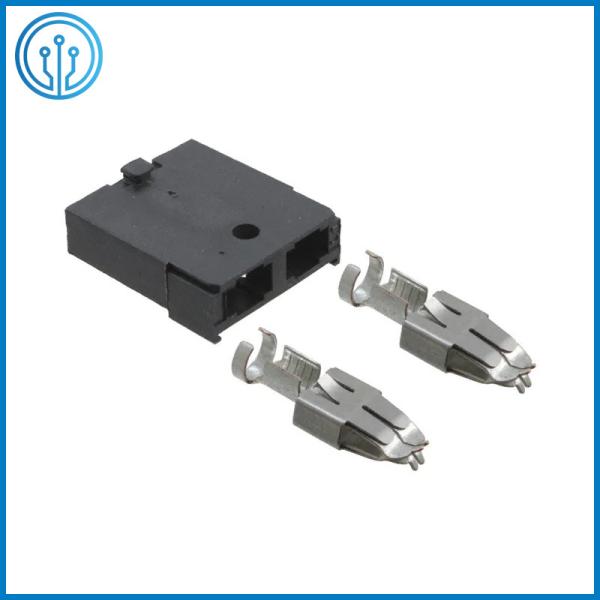

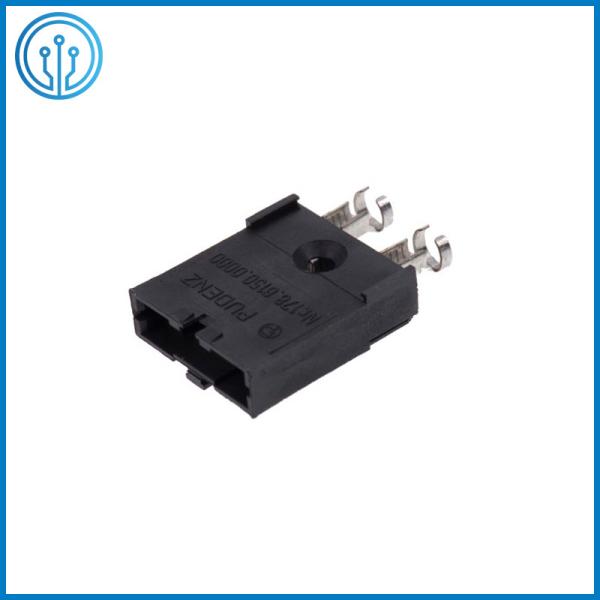

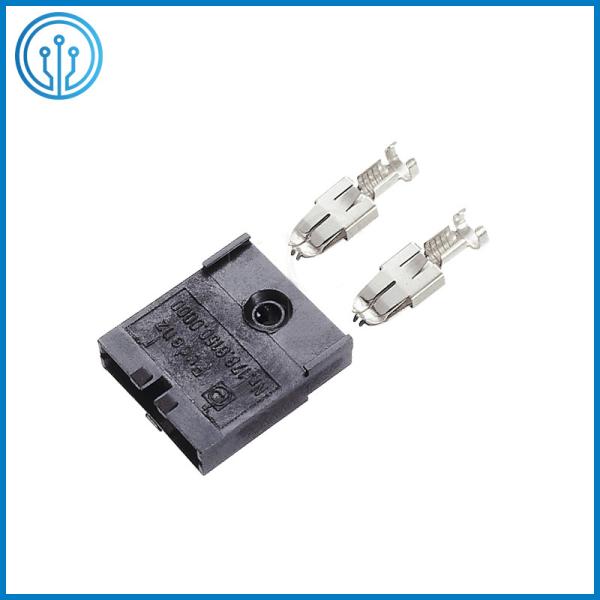

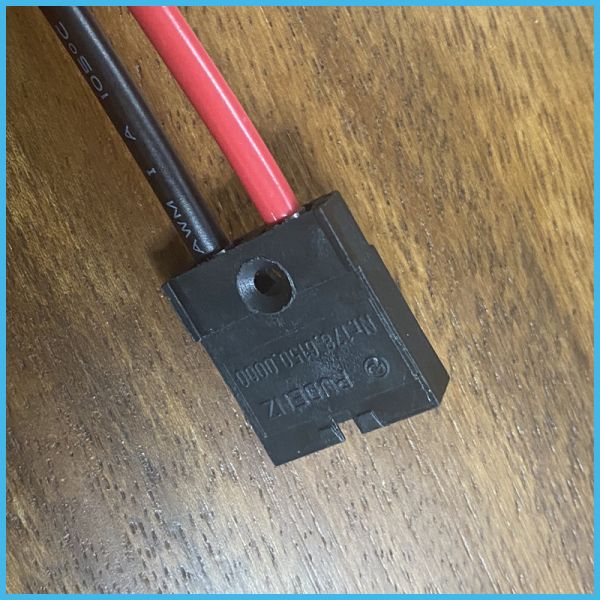

19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder
19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder
19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder
19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder
19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder
19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder
19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder
19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder
19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder
19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder
Specifications
Brand Name :
AMPFORT Or Littelfuse
Model Number :
178.6152.0001
Certification :
ROHS
Place of Origin :
Dongguan,Guangdong,China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
10,000,000 Pieces Per Month
Delivery Time :
7-10 Workdays
Packaging Details :
Bulk
Name :
Automotive Blade Fuse Holder 178.6152.0001 80V
P/N :
178.6152.0001
Brand :
Littelfuse or equivalent
Fuse Compatibility :
ATC ATO FKS 287 Regular blade fuse
Width :
8.6mm
Length :
20.2mm
Rated Current :
30A
Voltage Rating :
80V
Height :
23.2 mm
Gross weight :
5.03 g
Mounting Type :
Chassis Mount/on cable
Fuse Type :
Blade
Fuseholder Type :
Holder
Number of Circuits :
1
Voltage :
80V
Termination Style :
Crimp
Contact Material :
Copper Alloy
Contact Finish :
Tin
Fuse size :
19mm
Fuses application :
automotive fuses
Operating temperature :
max. 130°C
Customs number :
8538909999
Description

19mm ATC ATO FKS 287 Stackable Automotive Blade Fuse Holder 178.6152.0001 80V

Description Of The Automotive Blade Fuse Holder 178.6152.0001 80V

1) Fuseholder for ATO/ FKS size fuses-links. Attachable in X - direction. Rated voltage 80V; crimp terminals.

2) Fuse holders for FKS blade fuses series FKH, type Littelfuse/Pudenz 178.61.

3) With tab terminals; Connection material: tinned copper alloy. Housing and adapter: thermoplastic. Rated current: max. 30 A. Rated voltage: max. 80 V. Fuse holder retainers are available on separate order. Two parts are required for the retainer: snap-on lock on the right, and without lock on the left (please order each item separately).

4) In-line single fuse holder for standard blade fuses. These holders can be clipped together to form a multi-fuse block. Connections are made via male blade terminals mounted on the sides.
5) Optional fixing plate available to secure the fuse holder to a flat surface (see further information).
6) Accepts our range of standard blade fuses (including LED glow versions).
7) Fixing plate for standard blade fuse holder

Features Of The Automotive Blade Fuse Holders.


• For Mini, Low Profile, Standard and Maxi Blade Fuses.
• PCB Mountable for Reliable Connection and Security.
• Pre-Assembled for easy mounting and soldering to the PCB.
• Mini sizes are compatible with Littelfuse ATO 297 series and Bussman ATM series automotive blade fuses.
• Suitable for up to 20AMP applications.
• Mini Low Profile sizes are compatible with Littelfuse 0891 series and Bussman Low Profile ATM series automotive blade fuses.
• Suitable for up to 20AMP applications.
• Standard sizes are compatible with Littelfuse ATO 257 series and Bussman ATC series automotive blade fuses.
• Suitable for up to 30AMP applications.
• Maxi sizes are compatible with Littelfuse MAXI series and Bussman MAX series automotive blade fuses.
• Suitable for up to 40AMP applications.
• 2 in 1 fuse holder is also available to accomodate both Standard and Low Profile Mini style Automotive Blade Fuses in Thru-Hole Mount fuse holder

Dimension Of The Automotive Blade Fuse Holder 178.6152.0001 80V (mm)

19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder

Main Specification Of The Automotive Blade Fuse Holder 178.6152.0001 80V

Categories Circuit Protection
Fuseholders
Manufacturer Littelfuse Inc.
Series FKH/ATO/ATC Standard
Packaging Bulk
Part Status Active
Mounting Type Chassis Mount
Fuse Size 0.75" L x 0.2" W (19.1mm x 5.1mm)
For Use With/Related Products ATC, ATO,287
Fuse Type Blade
Fuseholder Type Holder
Number of Circuits 1
Voltage 80V
Housing + Adapter Out of thermoplastic (UL 94-V0, heat-resistant)
Termination Style Crimp
Contact Material Copper Alloy
Contact Finish Tin
Connections Leaf spring connector systems, soldering terminals, copper alloy, tinned
Color Black
Type of fuse accessories fuse holder
Fuse size 19mm
Mounting on cable
Fuses application automotive fuses
Operating temperature max. 130°C

19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder

More Automotive Blade Fuse Holder 178.6152.0001 80V

19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder19mm ATC 80V PCB Mount Fuse Holder 178.6152.0001 30 Amp Panel Mount Fuse Holder
