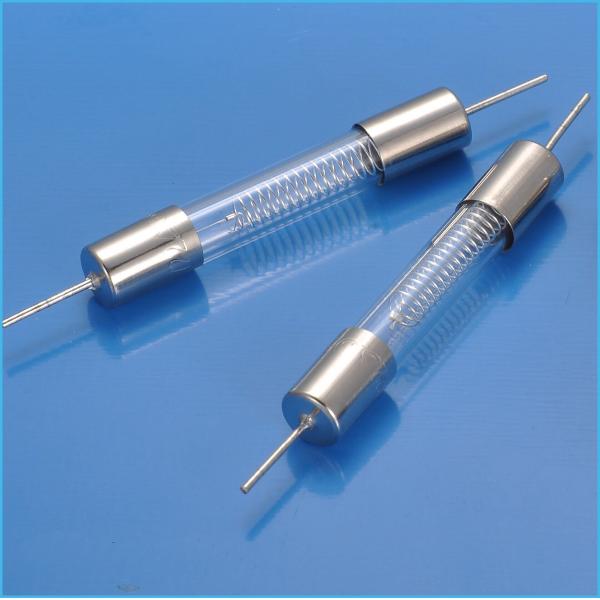

Spring Inside Quick Acting Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven

Description Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven


AFT720 series high voltage fuse designed as IEC-60127-2/Ⅳ standard, fast acting and voltage can up to 5000V , mainly used in over-current protection circuits of microwave oven.It can be cartridge fuse or axial leaded fuse , also suitable fuse holder available here.

Features Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven

• High voltage fuse, mainly used for microwave ovens

• Glass tube, nickel plated end caps
• 6.5mm x 40mm physical dimensions

• TUV Certificated

• Voltage is up to 5000V

• Current range 400mA to 1A

• Operating Temperature -55℃ to +125℃
• Protection against harmful over-currents in primary and secondary applications.
• Lead-free, Halogen-free, RoHS compliant
• Designed compliant to IEC-60127-2/Ⅳ

MECHANICAL SPECIFICATIONS Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven

Glass Tube 6.5x40mm Quick Acting 5000V Cartridge type Surface Mount 125C

P/N AFT720
Time - current features Fast-Acting(F)
Standard IEC-60127-2/Ⅳ
Solderability 260℃,≤10s,(Wave) 350℃,≤3s, (manual)
Spring silver plated brass
Metal cap nickel plated brass amplitude
Fuse Body glass tube
Acceleration 60-2000 hz in 10 g acceleration
Operating Temperature: -55°C to 125°C
Storage Conditions: +10℃ to +60℃
Relative humidity: ≤ 75% yearly average without dew, maximum 30 days at 95%
Vibration Resistance: 24 cycles at 15 min. each (60068-6)
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration

Time vs Current Characteristics: IEC-60127-2/Ⅳ Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven

Rated current 115% 150% 200% 275% 400% 1000%
400mA~1A >4hour <300sec <20sec 20ms~1500ms 8ms~400ms ≤80ms

Electrical Characteristics Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven

Rated current Voltage Rating Voltage Drop(mV) Max Nominal Melting I²t(A²sec)

TUV

Y / N
400mA 5,000V 1500 0.70 N
500mA 5,000V 1500 0.76 N
550mA 5,000V 1500 0.81 N
600mA 5,000V 1500 0.96 Y
650mA 5,000V 1500 1.00 Y
700mA 5,000V 1500 0.90 Y
750mA 5,000V 1500 1.56 Y
800mA 5,000V 1000 1.69 Y
850mA 5,000V 1000 1.90 Y
900mA 5,000V 1000 2.22 Y
1,000mA 5,000V 1000 2.34 N

Note: Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)

Average Time Current (I-T Curves) Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven

Glass Tube 6.5x40mm Quick Acting 5000V Cartridge type Surface Mount 125C

Actual Product Image Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven

Glass Tube 6.5x40mm Quick Acting 5000V Cartridge type Surface Mount 125C

Glass Tube 6.5x40mm Quick Acting 5000V Cartridge type Surface Mount 125C

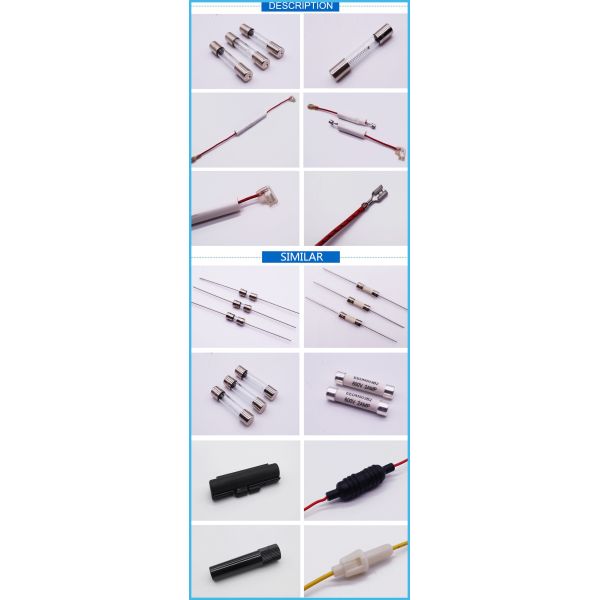

Suitable Fuse Holder Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven
