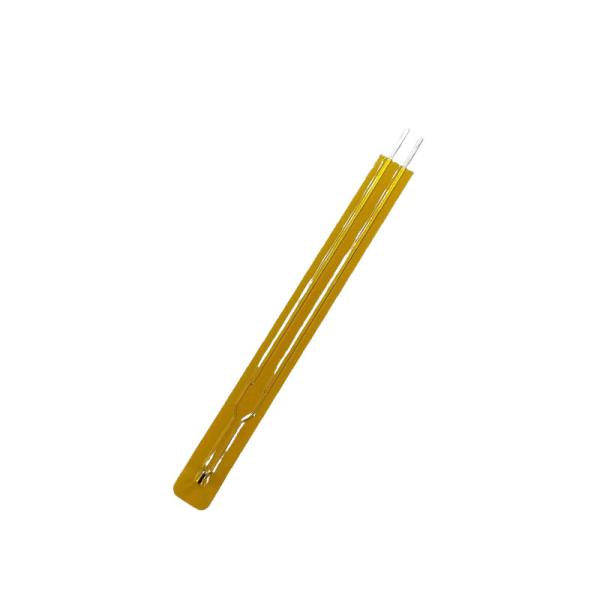

Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm
Specifications
Brand Name :
AFTNTC
Model Number :
103TJ-050-3435-1P
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000000pcs per month
Delivery Time :
1~2 weeks
Packaging Details :
Bulk
Name :
NTC Thermistor 10K
Resistance at 25ºC :
10000 Ohms
Beta :
3435K ±1.0% (25ºC/85ºC)
Tolerance at 25ºC :
±1%
Length :
1.97" (50mm)
Curves/Betas (25/85) :
F Curve=3435K
Description

Kapton Polyimide Insulation Low Profile Thin Film Thermistors 10K 50mm

Description

The TJ Series thin film thermistor is able to monitor temperature in small spaces and is perfect for battery pack or charger applications.NTC thermistor, 10K Ohm base resistance at 25°C, Beta of 3435K (25/85), tolerance of ±1.0% at 25°C, kapton polyimide insulation, with two 0.008” x 0.020” tinned copper leads that are 0.197” long, with an overall length of approximately 1.97”.Thin Film Thermistors are flexible, low profile, accurate, and reliable temperature sensors custom tailored to your application. Thin Film Thermistors are encapsulated in flexible Kapton polyimide that is a mere .02” thick. Thin Film Thermistors are accurate with tolerances available as tight as ±.1%

Feature

- Thin film insulated

- Leads can be attached

- RoHS compliant

- Note: 125°C temperature rating is identified by optional special specification

Benefits

- Perfect for temperature monitoring in tight spaces such as battery packs, mobile devices and wearable tech.

- 100% tested during sensor chip manufacturing and after final assembly to ensure quality and reliability in the field.

- Customizable with wire leads that are soldered leads to the TJ thermistor tabs.

- We can reverse engineer an existing design or build you a brand new product tailored to your application.

Specifcation

NO.
Item		 Specification Unit
4-1 Operation Temperature Range -40 ~ +125 ℃

Actual Photos
