Specifications
Brand Name :
CNAMPFORT
Model Number :
HES
Certification :
TUV
Place of Origin :
CHINA
MOQ :
500PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000000pcs per month
Delivery Time :
1~2 weeks
Packaging Details :
Bulk
Product name :
Electric Vehicle Fuses
Class of Protection :
EV FUSE
Current :
60A~350A
Voltage :
125Vdc
Standard :
IEC60269-4 and UL248-13
Breaking capacity :
6KA@100VDC,4KA@125VDC
Description

HES Plate Bolt Connection EV Electric Vehicle Fuses 100A 150A 200A 250A 300A 350A 125Vdc 4KA For Lawn Mowers Gardening Tools

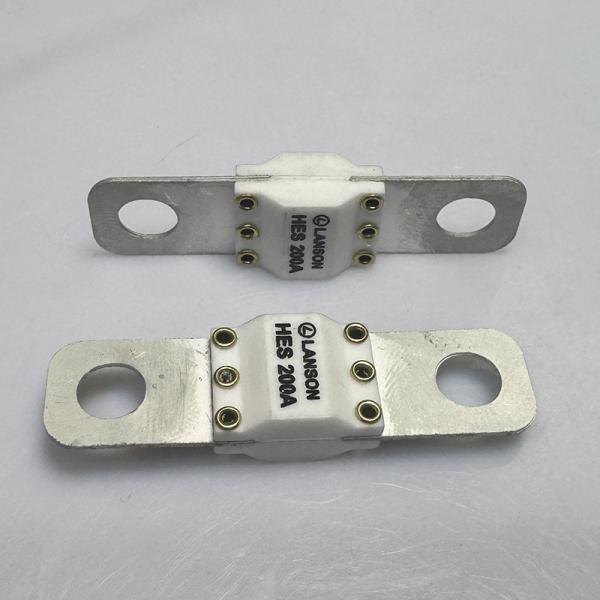

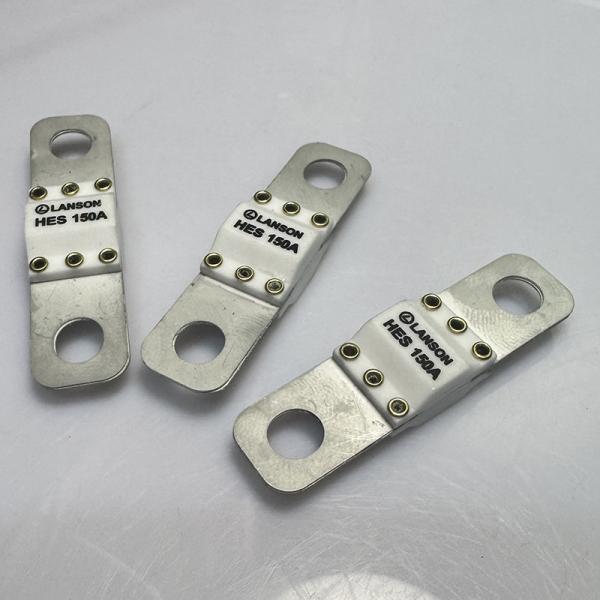

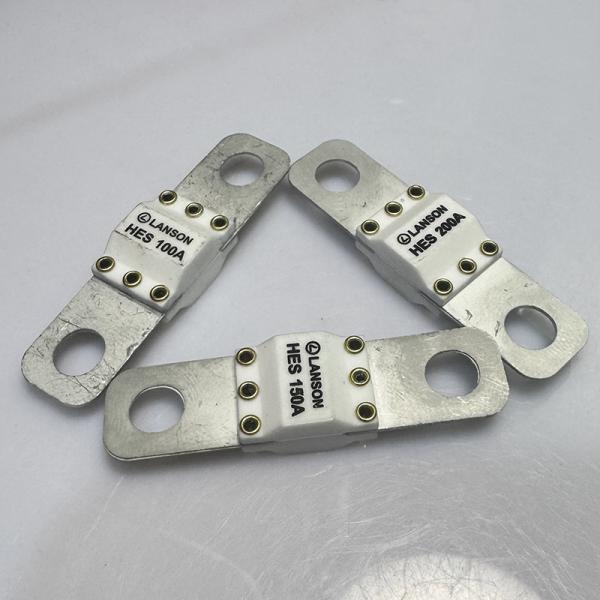

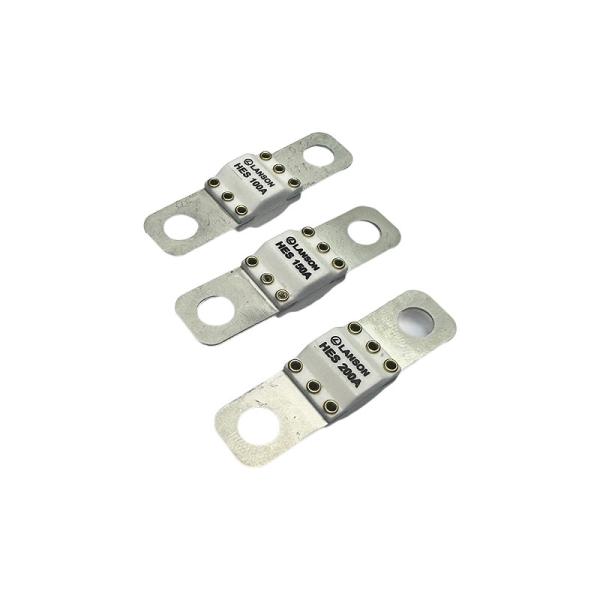

Product images example

Product Features

- Voltage rating: 125Vdc

- Current rating: 100A-350A

- Rated Breaking Capacity: 4kA at 125Vdc

Scope of application

Plate bolt connection fuse, this product is mainly used for circuit protection in low voltage and high current fields such as low-speed electric vehicles, electric motorcycles, industrial machinery electric forklifts/excavators/bulldozers, portable energy storage devices, lawn mowers and other gardening tools, battery pack protection, traction inverter protection, electric energy conversion, charging fuses, auxiliary fuses.

Agency information

- Standard Ref. To UL248-13

- Manufactured under IATF 16949 quality system

- RoHS Compliant

Electrical characteristic

Part Number Current Rating Voltage Rating Breaking Capacity
HES125V-100A000 100A 125Vdc 4kA
HES125V-150A000 150A 125Vdc 4kA
HES125V-200A000 200A 125Vdc 4kA
HES125V-250A000 250A 125Vdc 4kA
HES125V-300A000 300A 125Vdc 4kA
HES125V-350A000 350A 125Vdc 4kA

Time/Current Characteristics

% of ampere rating Opening time
100% 4 Hours Min.
300% 10 Sec Max.

Material Details

NO. Part Name Material
1 Melt terminal Tin plated copper
2 Body Ceramic
3 Rivet Brass

Appearance

-There shall not be any remarkable stain,rust or crack on the appearances.

- Marking shall be easily legible.

Environmental characteristics

- Normal temperature: -5℃-40℃

- Permissible operating temperature:-40℃-120℃

- The altitude of the site of installation of the fuses should not exceed 2000 m above sea level and permissible altitude site of installation does not exceed 5000m.

- Relative humidity≤75%, store 3 years.

Packing

- 16 pcs fuses per plastic bag,18 plastic bags per inner box, 10 pcs inner boxes per external carton. (The actual case in accordance with the customer order)

Transportation

- During transportation and storage, Avoid water seepage and mechanical damage
