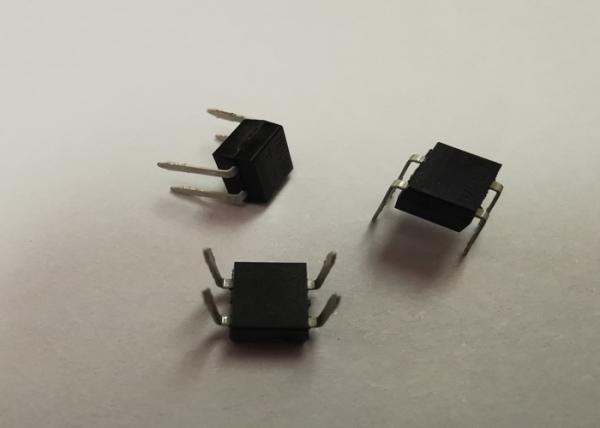

0.5Amp Single Phase Glass Passivated Bridge Rectifier MB05M Thru MB10M
0.5Amp Single Phase Glass Passivated Bridge Rectifier MB05M Thru MB10M
0.5Amp Single Phase Glass Passivated Bridge Rectifier MB05M Thru MB10M
0.5Amp Single Phase Glass Passivated Bridge Rectifier MB05M Thru MB10M
0.5Amp Single Phase Glass Passivated Bridge Rectifier MB05M Thru MB10M
0.5Amp Single Phase Glass Passivated Bridge Rectifier MB05M Thru MB10M
Specifications
Brand Name :
XUYANG
Model Number :
MB05M-MB10M
Certification :
ISO9001/RoHS
Place of Origin :
China
MOQ :
5000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs per week
Delivery Time :
7 - 10 wok days
Packaging Details :
tape in reel, 3000pcs/reel
Part number :
MB05M-MB10M
Current :
0.5A
Voltage :
50-1000V
Lead Free Status :
Lead free/RoHS
SPQ :
1000pcs
Operating Temperature :
-55°C to +150°C
Description

0.5Amp Single Phase Glass Passivated Bridge Rectifier MB05M Thru MB10M

FEATURES

1. Through Hole Package

2. Glass Passivated Diode Construction

3. Moisture Resistant Epoxy Case

4. High Surge Current Capability

Mechanical Data

· Operating Temperature: -55°C to +150°C
· Storage Temperature: -55°C to +150°C

Maximum Ratings

Catalog

Number

Device

Marking

Maximum

Rccurrent

Peak Reverse

Voltage

Maximum

RMS

Voltage

Maximum

DC

Blocking
MB05M MB05M 50V 35V 50V
MB1M MB1M 100V 70V 100V
MB2M MB2M 200V 140V 200V
MB4M MB4M 400V 280V 400V
MB6M MB6M 600V 420V 600V
MB8M MB8M 800V 560V 800V
MB10M MB10M 1000V 700V 1000V


Electrical Characteristics @ 25°C Unless Otherwise Specified

Average Forward

Current

 IF(AV)

0.5A

TA = 40°C

Peak Forward Surge

Current

 IFSM 30A 8.3ms, half sine

Maximum

Instantaneous

Forward Voltage

 VF 1.0V

IFM = 0.5A;

TA = 25°C

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

 IR 5 mA
0.5mA

TA = 25°C

TA = 125°C

Typical Junction

Capacitance

 CJ 25pF

Measured at

1.0MHz, VR=4.0V

Pulse Test: Pulse Width 300msec, Duty Cycle 1%


Size:

0.5Amp Single Phase Glass Passivated Bridge Rectifier MB05M Thru MB10M

0.5Amp Single Phase Glass Passivated Bridge Rectifier MB05M Thru MB10M

Why choose us?

1. ISO9001:2008 certified factory

2. 20 years rich experience in the diode production

3. Strict quality control, achieve customer's maximum satisfaction

4. The Annual production capacity is over 2 billion
