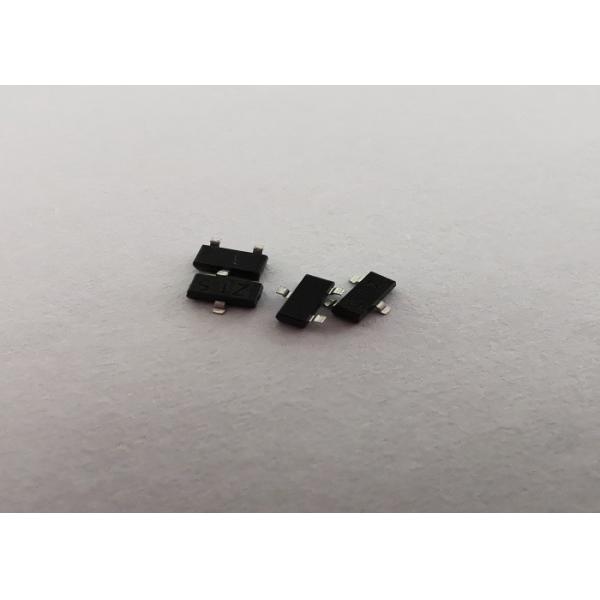

SOT-23 NPN Transistor BC847 For Switching and AF Amplifier Applications
With strong R&D capabilities,advanced production equipment and perfect measurement devices.
We supply qualified products and service in accordance with ISO9001 quality management system.
All products have passed hazardous substance test,met standards of EU and USA
Features
1. Complementary to BC856/BC857/BC858
2. Power Dissipation of 200mW
3. Ideally suited for automatic insertion
4. For switching and AF amplifier applications

Mechanical Data:

1. Small Outline Plastic Package
2. Epoxy UL: 94V-0
3. Mounting Position: Any



Maximum Ratings and Electrical Characteristics(Ratings at 25℃ ambient temperature unless
otherwise specified.)

Parameter Symbol Value UNIT
Collector-Base Voltage VCBO

BC846

BC847

BC848

80

50

30

 V
Collector-Emitter Voltage VCEO

BC846

BC847

BC848

65

45

30

 V
Emitter -Base Voltage VEBO 6 V
Collector Current-Continuous IC 100 mA
Collector Power Dissipation PC 200 mW
Junction Temperature Tj 150 ℃
Storage Temperature Tstg -55 - +150 ℃
Thermal resistance From junction to ambient RθJA 625 ℃/W


Electrical Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified).

Parameter Symbols Test Condition Limits Unit
Min Max

Collector-base breakdown voltage

 V(BR)CBO

IC=10uA, IE=0 BC846

BC847

BC848

80

50

30

 V

Collector-emitter breakdown voltage

 V(BR)CEO

IC=10mA, IB=0 BC846

BC847

BC848

65

45

30

 V
Emitter-base breakdown voltage V(BR)EBO IE=10uA, IC=0 6 V
Collector cut-off current ICBO

VCE=60V, IB=0 BC846

VCE=45V, IB=0 BC847

VCE=30V, IB=0 BC848

 100 nA
Collector cut-off current ICEO

VCB=70V, IE=0 BC846

VCB=50V, IE=0 BC847

VCB=30V, IE=0 BC848

 100 nA
Emitter cut-off current IEBO VEB=5V, IC=0 100 nA
DC current gain hFE

BC846A;BC847A;BC848A

VCE=5V, BC846B;BC847B;BC848B

IC=2Ma BC847C;BC848C

110

200

420

220

450

800
Collector-emitter saturation voltage VCE(sat) IC=100mA, IB=5mA 0.50 V
Base -emitter saturation voltage VBE(sat) IC=100mA, IB=5mA 1.10 V
Transition frequency fT VCE=5V, IC=10mA,f=100MHz 100 MHz
Collector output capacitance Cob VCB=10V, f=1MHz 4.5 pF


Drawing:

SOT-23 NPN Transistor BC847 For Switching and AF Amplifier Applications
SOT-23 NPN Transistor BC847 For Switching and AF Amplifier Applications
