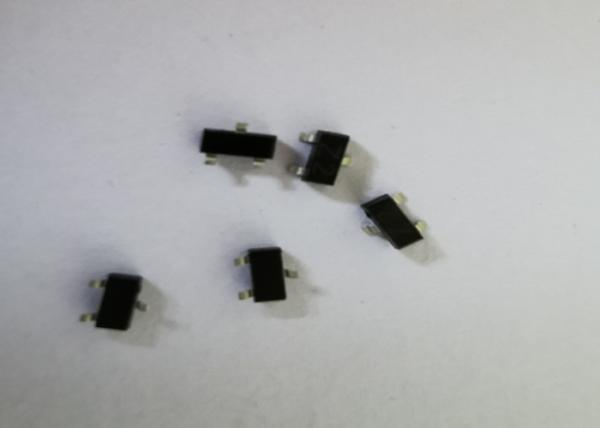

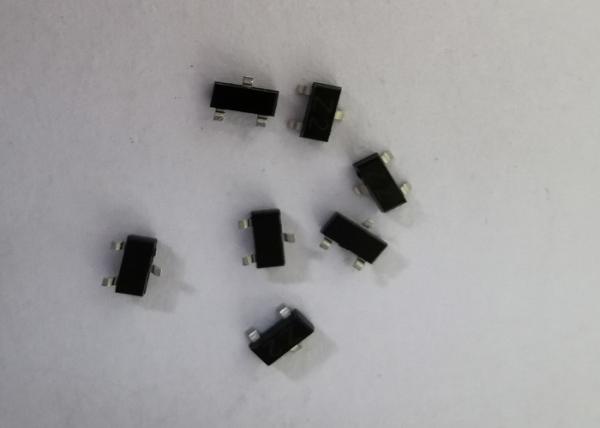

SOT-23 Plastic Encapsulate Small Signal Switching Diode BAV199 ISO9001 / RoHS
SOT-23 Plastic Encapsulate Small Signal Switching Diode BAV199 ISO9001 / RoHS
SOT-23 Plastic Encapsulate Small Signal Switching Diode BAV199 ISO9001 / RoHS
SOT-23 Plastic Encapsulate Small Signal Switching Diode BAV199 ISO9001 / RoHS
SOT-23 Plastic Encapsulate Small Signal Switching Diode BAV199 ISO9001 / RoHS
SOT-23 Plastic Encapsulate Small Signal Switching Diode BAV199 ISO9001 / RoHS
Specifications
Brand Name :
XUYANG
Model Number :
BAV199
Certification :
ISO9001/RoHS
Place of Origin :
China
MOQ :
3000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per 1 week
Delivery Time :
5 - 8 work days
Packaging Details :
tape in reel, 3000pcs/reel
Name :
Plastic - Encapsulate Switching Diode
Part number :
BAV199
VR@100uA :
＞85V
IR@75V :
＜5nA
trr :
＜3uS
Storage Temperature Range :
-65~+150℃
Description

SOT-23 Plastic Encapsulate Small Signal Switching Diode BAV199


Features

Low Leakage Current
Low Reverse Recovery Time
Halogen-free Package

Surface Mount PackageEpoxy UL: 94V-0

Applications

Low Leakage Current Applications

High Speed Switch Applications

Maximum Ratings & Thermal Characteristics (Tamb=25℃ unless otherwise specified)

Parameter Symbol Value UNIT

Reverse Voltage

Working Peak Reverse Voltage

VR

VRM

 85 V
RMS Reverse Voltage VR(RMS) 60 V
Forward Continuous Current IFM 125 mA
Repetitive Peak Forward Current IFRM 500 mA

Non-Repetitive Peak Forward Surge Current @ t = 1.0s

@ t = 1.0ms

@ t = 1.0s

 IFSM

4.0

1.0

0.5

 A
Power Dissipation (Note 1) Pd 150 mW
Thermal Resistance Junction to Ambient Air (Note 1) RθJA 833 ℃/W
Operating and Storage Temperature Range Tj , TSTG -65 to+150 ℃

Drawing:

SOT-23 Plastic Encapsulate Small Signal Switching Diode BAV199 ISO9001 / RoHS

SOT-23 Plastic Encapsulate Small Signal Switching Diode BAV199 ISO9001 / RoHS

PRICE TERM: FOB,EXW,CNF,CIF,DDU
SHIPPING METHOD: DHL,TNT,FEDEX,UPS,BY AIR OR BY SEA

Other Policies:

1. About MOQ which depends on your order.

2. About warranty we give one month for refund or replacement.

3. About sample which needs your charge.

4. About inventory which changes everyday and depends on your order.

5. About order process: We will send you a PI (term of shipping, aggregate amount and so on) after receive you parts list.

Extra service you can get from Xuyang:


After-sale service: Xuyang will provide full after-sale service for all customers
Technical Support: Xuyang can provide technical support for all customers

What you can benefit from Xuyang:
1) Competitive prices will help you to save cost
2) Reliable quality will help you to avoid Purchasing Risk
3) We can ensure you: Short delivery,technical support and after-sale serive
4) One store shopping: Various components will help you to save time on select suppliers
