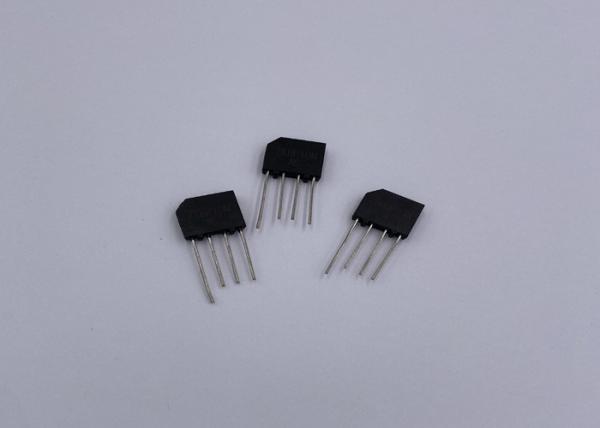

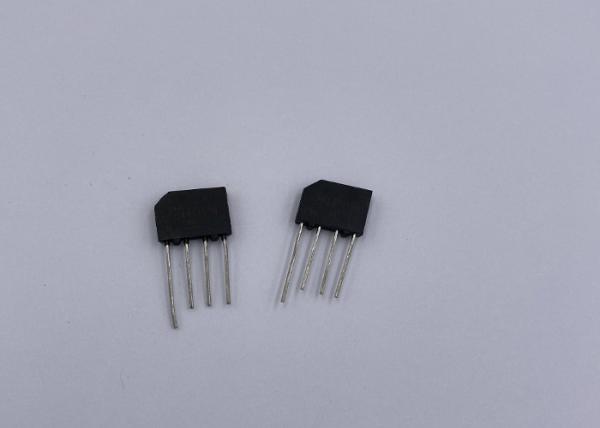

2.0 A Silicon Bridge Rectifier 2KBP005M Thru 2KBP10M Reverse Voltage 50 To 1000V
2.0 A Silicon Bridge Rectifier 2KBP005M Thru 2KBP10M Reverse Voltage 50 To 1000V
2.0 A Silicon Bridge Rectifier 2KBP005M Thru 2KBP10M Reverse Voltage 50 To 1000V
2.0 A Silicon Bridge Rectifier 2KBP005M Thru 2KBP10M Reverse Voltage 50 To 1000V
2.0 A Silicon Bridge Rectifier 2KBP005M Thru 2KBP10M Reverse Voltage 50 To 1000V
2.0 A Silicon Bridge Rectifier 2KBP005M Thru 2KBP10M Reverse Voltage 50 To 1000V
Specifications
Brand Name :
XUYANG
Model Number :
2KBP005M thru 2KBP10M
Certification :
ISO9001
Place of Origin :
China
MOQ :
5000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000pcs per week
Delivery Time :
10 - 15 wok days
Packaging Details :
bulk in box, 200pcs/box
Part number :
2KBP005M thru 2KBP10M
Current :
2A
Voltage :
50-1000V
Lead Free Status :
Lead free/RoHS
Shipping by :
DHL\UPS\Fedex\EMS\sea
SPQ :
200pcs
Description

2.0 A Single-Phase Silicon Bridge Rectifier Rectifier 2KBP005M thru 2KBP10M Reverse Voltage 50 to 1000V

FEATURES

This series is UL listed under the Recognized
Component Index, file number E142814

Ideal for printed circuit board mounting

The plastic material used carries Underwriters Laboratory
flammability recognition 94V-0

Built-in printed circuit board stand-offs
High case dielectric strength

High temperature soldering guaranteed 265 /10
seconds at 5 lbs (2.3kg) tension

Mechanical Data

Case: Reliable low cost construction utilizing
molded plastic technique
Terminals: Plated leads solderable per MIL-STD-202,
Method 208
Mounting Position: Any
Weight: 0.065 ounce, 2.2 grams (approx)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature uniess otherwies specified.

Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Parameter Symbol

2KBP

005M

2KBP

01M

2KBP

02M

2KBP

04M

2KBP

06M

2KBP

08M

2KBP

10M

 UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V
Maximum RMS bridge input Voltage VRMS 35 70 140 280 420 560 700 V
Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V

Maximum average forward rectified output current at TA=50

 I F(AV) 2.0 V

Maximum DC reverse current at rated TA =25 C

DC blocking voltage per element TA =125 C

 IR

5.0

500

 μA

Peak Forward Surge Current, 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

 IFSM 60 A
Typical Thermal Resistance (Note 2) ReJA 10.0 ℃/W
Typical Junction Capacitance (Note 1) Cj 25 pF

Operating junction and storage temperature

range

TJ,

TSTG

 -55--150 ℃

2.0 A Silicon Bridge Rectifier 2KBP005M Thru 2KBP10M Reverse Voltage 50 To 1000V


Size:

2.0 A Silicon Bridge Rectifier 2KBP005M Thru 2KBP10M Reverse Voltage 50 To 1000V

2.0 A Silicon Bridge Rectifier 2KBP005M Thru 2KBP10M Reverse Voltage 50 To 1000V

What can you from XUYANG

Best service: with 10 years experience in exporting sales staff will service you.

High quality: help you to avoid purchasing risk.

Short delivery: help you to save time.

Competitive price: the price is not the lowest but the highest cost performance

OEM/ODM: we are confident we can meet you OEM/ODm requirements.
