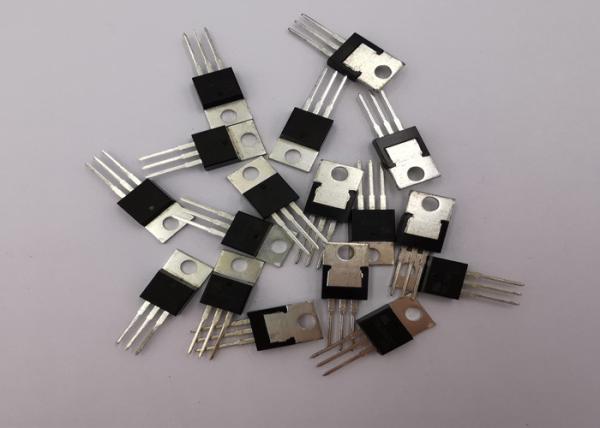

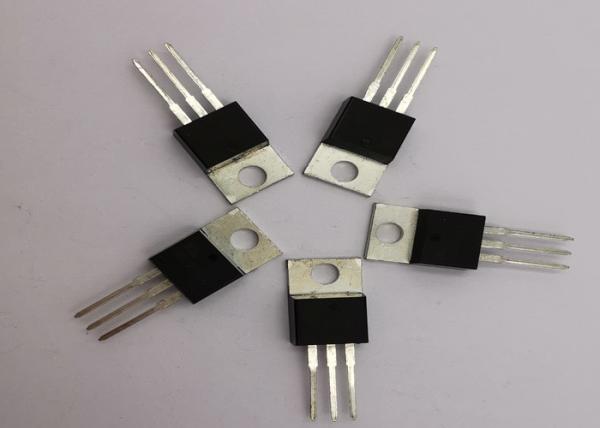

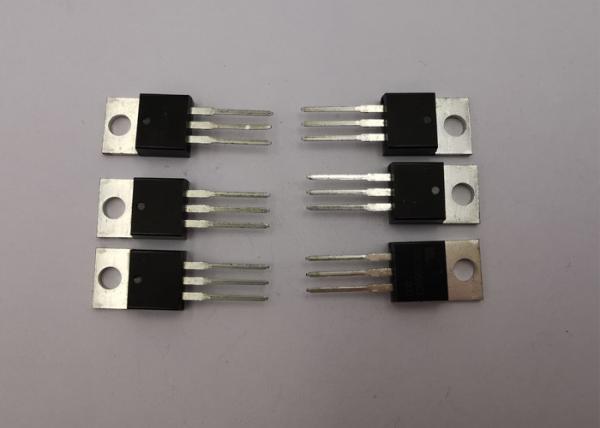

30 Amp Surface Mount Schottky Barrier Diode 30CTQ050 30CTQ060 TO-220 Package
30 Amp Surface Mount Schottky Barrier Diode 30CTQ050 30CTQ060 TO-220 Package
30 Amp Surface Mount Schottky Barrier Diode 30CTQ050 30CTQ060 TO-220 Package
30 Amp Surface Mount Schottky Barrier Diode 30CTQ050 30CTQ060 TO-220 Package
30 Amp Surface Mount Schottky Barrier Diode 30CTQ050 30CTQ060 TO-220 Package
30 Amp Surface Mount Schottky Barrier Diode 30CTQ050 30CTQ060 TO-220 Package
Specifications
Brand Name :
XUYANG
Model Number :
30CTQ060
Certification :
ISO9001/RoHS
Place of Origin :
China
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per 1 week
Delivery Time :
15 - 20 work days
Packaging Details :
bulk in bar
Part number :
30CTQ060
IF :
30A
Voltage :
60V
Junction Temperature :
- 55 to 150
VF at IF :
0.56 V
IFSM :
1000A
Description

30 Amp Schottky Rectifier Diode 30CTQ050 30CTQ060 TO-220 Package

FEATURES

This center tap Schottky rrectifier has been optimized for very low forward voltage drop,

with moderate leakage. The proprietary barrier technology allows for reliable operation
up to 150° C junction temperature. Typical applications are in switching power supplies,

converters, free-wheeling diodes, and reverse battery protection.
* 150° C TJ operation
* Center tap configuration
* Very low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and

moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

VOLTAGE RATINGS
PARAMETER SYMBOL 30CTQ050 30CTQ050
Maximum DC reverse voltage(V) VR 50 60
Maximum working peak reverse voltage(V) VRWM

ABSOLUTE MAXIMUM RATINGS
PARAMETER SYMBOL Test Condition VALUES UNITS
Maximum average forward current Per Leg IF(AV) 50 % duty cycle at TL = 105 °C, rectangular waveform 15 A
Per Device 30

Maximum peak one cycle

non-repetitive surge current (Per Leg)

 IFSM 5 μs sine or 3 μs rect. pulse

Following any rated

load condition and with

rated VRRM applied

 1000
10 ms sine or 6 ms rect. pulse 250
Non-repetitive avalanche energy EAS TJ = 25 °C, IAS = 1.5 A, L = 11.5 mH 13 mJ
Repetitive avalanche current IAR

Current decaying linearly to zero in 1 μs

Frequency limited by TJ maximum VA = 1.5 x VR typical

 1.5 A

ELECTRICAL SPECIFICATIONS
PARAMETER SYMBOL Test Condition VALUES UNITS
Maximum forward voltage drop(Per Leg) VFM(1) @15A TJ = 25 °C 0.62 V
@30A 0.82
@15A TJ = 125 °C 0.56
@30A 0.71
Maximum reverse leakage current(Per Leg) IRM TJ = 25 °C VR = Rated VR 0.8 mA
TJ = 125 °C 45
Threshold Voltage VF(TO) TJ = TJ max. 0.39 V
Forward Slope Resistance rt 0.47 mÙ
Maximum junction capacitance(Per Leg) CT VR = 5 VDC (test signal range 100 kHz to 1 MHz), 25 °C 720 pF
Typical series inductance(Per Leg) LS Measured lead to lead 5 mm from package body 8.0 nH
Maximum voltage rate of change dV/dt Rated VR 10 000 V/μs

Note
(1) Pulse Width < 300μs, Duty Cycle <2%

Drawing:

30 Amp Surface Mount Schottky Barrier Diode 30CTQ050 30CTQ060 TO-220 Package

30 Amp Surface Mount Schottky Barrier Diode 30CTQ050 30CTQ060 TO-220 Package

What can you from XUYANG?

Best service: with 10 years experience in exporting sales staff will service you.

High quality: help you to avoid purchasing risk.

Short delivery: help you to save time.

Competitive price: the price is not the lowest but the highest cost performance

OEM/ODM: we are confident we can meet you OEM/ODm requirements.
