SOT-23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S
SOT-23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S
SOT-23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S
SOT-23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S
SOT-23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S
SOT-23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S
Specifications
Brand Name :
XUYANG
Model Number :
BAT54 BAT54A BAT54C BAT54S
Certification :
ISO9001/RoHS
Place of Origin :
China
MOQ :
3000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per 1 week
Delivery Time :
5 - 8 work days
Packaging Details :
tape in reel, 2500pcs/reel
Part number :
BAT54 BAT54A BAT54C BAT54S
VR :
30V
Package :
SOT-23
SPQ :
3000pcs
Forward current :
200mA
Junction temperature :
-55-150℃
Description

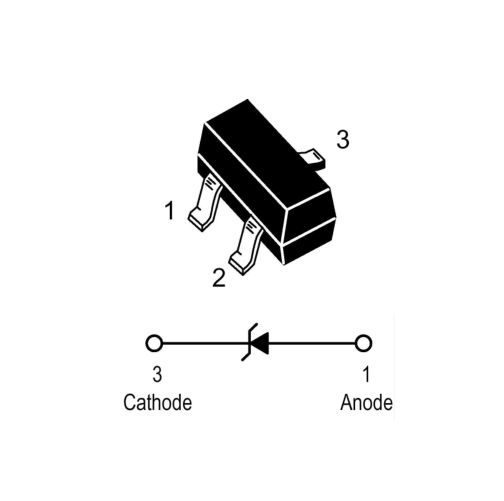

SOT-23 Plastic-Encapsulate Diode Schottky Dode BAT54 BAT54A BAT54C BAT54S

Features

Power Dissipation
PD : 200 mW (Tamb=25 ℃)

Absolute Maximum Ratings

Maximum Ratings @T A =25

Parameter Symbol Limits Unit

Peak Repetitive Peak reverse voltage

Working Peak Reverse Voltage

DC Blocking Voltage

V RRM

V RWM

V R

30

V
Forward Continuous Current I FM 200 mA
Power Dissipation Pd 200 mW
Storage temperature T STG -55-150 ℃

Electrical Characteristics@T A =25

Parameter Symbol Min. Typ. Max Unit Conditions
Reverse Breakdown Voltage V (BR)R 30 V IR=100µA

Forward voltage

 V F1 0.24 V I F =0.1mA
V F2 0.32 V I F =1mA
V F3 0.40 V I F =10mA
V F4 0.50 V I F =30mA
V F5 1 V I F =100mA
Reverse current I R 2 µA V R =25V
Diode Capacitance C D 10 pF V R =1V,f=1MHz
Reverse Recovery Time t rr 5 nS

I F =I R =10mA

Irr=0.1XI R ,R L =100Ω

SOT-23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S

SOT-23 Plastic Encapsulate Schottky Diode Smd BAT54 BAT54A BAT54C BAT54S

Best Quality Assurance:

1. Original & New Only
2. Most Competitive Price & Best Service
3. We can provide customers samples for free, the maximum sample quantity is 50 pcs.

Customers only pay for the freight cost

Payment Methods :

· T/T

· Western Union

· PayPal

· other payment term as you like.

Shipping way :

Expedited Int'l Shipping (FEDEX, DHL, UPS, TNT) it normally cost 4-6 days
