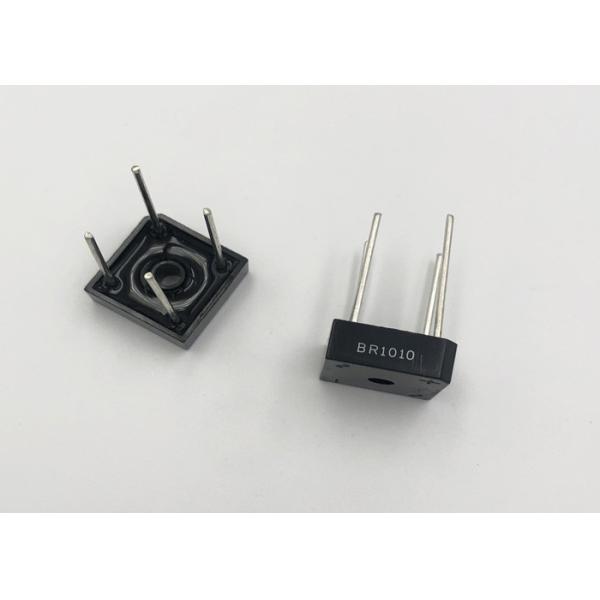

Single Phase Half Wave Diode Bridge Rectifier 10A 4 Pin With Low Leakage Current
Single Phase Half Wave Diode Bridge Rectifier 10A 4 Pin With Low Leakage Current
Single Phase Half Wave Diode Bridge Rectifier 10A 4 Pin With Low Leakage Current
Single Phase Half Wave Diode Bridge Rectifier 10A 4 Pin With Low Leakage Current
Single Phase Half Wave Diode Bridge Rectifier 10A 4 Pin With Low Leakage Current
Single Phase Half Wave Diode Bridge Rectifier 10A 4 Pin With Low Leakage Current
Specifications
Brand Name :
XUYANG
Model Number :
BR1010
Certification :
ISO9001
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per week
Delivery Time :
10 - 15 wok days
Packaging Details :
bulk in box, 200pcs/box
Part number :
BR1010
Current :
10A
Voltage :
1000V
Lead Free Status :
Lead free/RoHS
Shipping by :
DHL\UPS\Fedex\EMS\sea
SPQ :
200pcs
Description

10A 4pin Single Phase Bridge Rectifier Diode BR1005 thru BR1010

FEATURES

* Low leakage current

* Low forward voltage

* Mounting: Hole thru for #6 screw

* Mounting position: Any

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature uniess otherwies specified.

Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

TYPE NUMBER BR1005 BR101 BR102 BR104 BR106 BR108 BR1010 UNITS
Maximum Recurrent Peak Reverse Voltage 50 100 200 400 600 800 1000 V
Maximum RMS Voltage 35 70 140 280 420 560 700 V
Maximum DC Blocking Voltage 50 100 200 400 600 800 1000 V

Maximum Average Forward Rectified Current

.375"(9.5mm) Lead Length at Tc=50 C

 10 A

Peak Forward Surge Current, 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

 200 A
Maximum Forward Voltage Drop per Bridge Element at 5.0A D.C. 1.1 V

Maximum DC Reverse Current Ta=25 C

at Rated DC Blocking Voltage Ta=100 C

10

200

uA

uA
Operating Temperature Range, TJ -65--125 ℃
Storage Temperature Range, TSTG -65--125 ℃

Size:

Single Phase Half Wave Diode Bridge Rectifier 10A 4 Pin With Low Leakage Current

What can you from XUYANG

Best service: with 10 years experience in exporting sales staff will service you.

High quality: help you to avoid purchasing risk.

Short delivery: help you to save time.

Competitive price: the price is not the lowest but the highest cost performance

OEM/ODM: we are confident we can meet you OEM/ODm requirements.
